Product Specifications
| Prod Model: |
HT100-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Comply: |
DVB-C |
Product Description

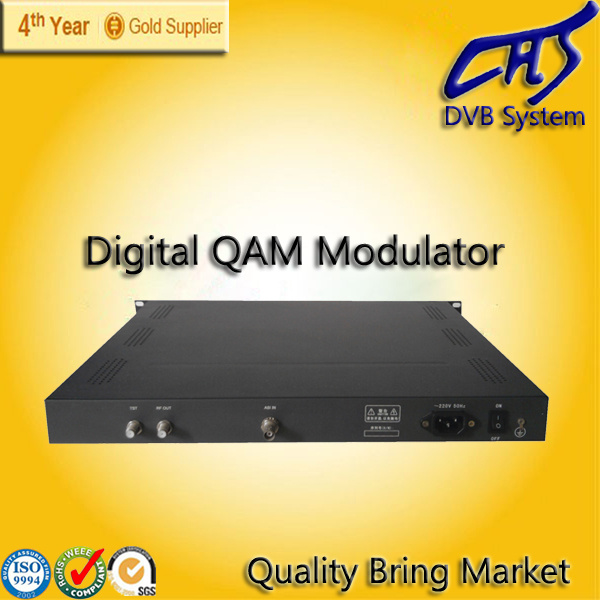

DVB-C QAM Modulator
1. Quick and easy installation& user-friendly menu
2. Comply with MPEG2 and DVB-C
3. Low power consumption
4. TS input with IF/RF output
5. Auto-detect packet format
6. Remote network management
7. LCD display
Outline
HT100-2 QAM Agile Modulator comply DVB-C standard, it modulates the DVB standard transport stream to RF signal, its bandwidth is less than 8MHz under the PAL mode and less than 6MHz under the NTSC mode. The DVB standard transport stream including: MPEG-2 digital TV, digital broadcasting, VOD, conference TV, internet, IP phone and many other digital signals. HT100-2 QAM Agile Modulator is widely used for HFC internet and microwave MMDS. It realizes the remote transportation of digital TV, and also sends many other digital value-added services to customers.
Features
Comply DVB-C standard (ETSI/EN300429)
Modulation Mode: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Symbol rate: 1-6.96MS/s
TS input interface: ASI
IF output optional: 36.125MHz or 36MHz
SNR (out of Band) ≥ 40dB
Packet format: Automatic Detection
Supply network management and remote supervisory
Display: LCD
Power shut memory
Input
|
Unit
|
Specification
|
Connector
|
|
BNC-75Ω , DB-25 female
|
Interface Type
|
|
1 Route ASI, 1 Route SPI
|
Packet Format
|
|
Auto detection: 188/204 byte packet
|
Input program stream
|
|
MPEG-2 standard TS
|
IF Output
|
Modulation Mode
|
|
16QAM, 32QAM, 64QAM, 128QAM, 256QAM
|
Output symbol rate
|
MS/s
|
1-6.96
|
IF frequency
|
MHz
|
36.125/36
|
IF level
|
dB
|
95
|
IF bandwidth
|
MHz
|
≤ 8
|
Reflection loss
|
dB
|
≥ 18
|
Out of band rejection
|
|
60dB
|
Connector
|
|
BNC 75Ω
|
RF output
|
Connector
|
|
FL-10 75Ω
|
Frequency
|
MHz
|
52.500-858.000
|
Level
|
dBv
|
110
|
Out of band rejection
|
|
60dB
|
Others
|
Operation temperature
|
|
0~50
|
Storage temperature
|
|
-20~80
|
Power
|
V
|
187V~253V AC50*(12%) Hz 20W
|
Dimension
|
mm
|
44.5*483.6*325
|
