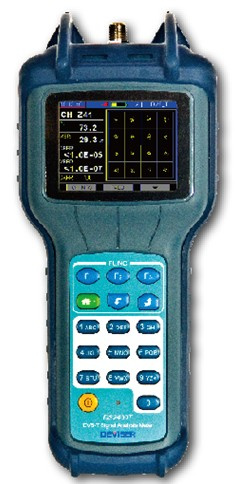

Ds2400t is an ideal meter for DVB-C/T/T2 standard testing. It demodulates and accurately measures the DVB-T/T2 signals carried through the terrestrial TV system. Also it is a lightweight, simple to use instrument for perfectly CATV system, including digital TV and analog TV measurements. It is easy to obtain a test report via PC toolbox software.
Key features
Compatible with DVB-C/T/T2 standard
DVB-T/T2: Comply with ets300744 standard/ support power, mer, cber and vber
DVB-c: Support digital and analog TV measurements
Spectrum function (5~1000MHz)
Easy to use
Communicate with PC by serial cable
Multiple user plan
Intelligence power management
Alphanumeric inputting
Fast setup
|
DS2400T |
Standard |
DVB-T |
|
|
Option |
DVB-C/DVB-T2 |
|
|
|
|
|
DS2400T |
|
|
|
DVB-T |
|
|
|
Frequency Range |
5 ~ 1000 MHz |
|
|
Function |
Power, MER, CBER, VBER, ECHOES and MER Versus Carriers |
|
|
DVB-T Signal Parameters |
Carriers |
2 k / 8 k (Set by user) |
|
|
Guard Interval |
1/4 1/8 1/16 1/32(Set by user) |
|
|
Code Rate |
1/2 2/3 3/4 5/6 7/8 |
|
|
Modulation |
QPSK 16QAM 64QAM |
|
|
Spectral Inversion |
Automatic |
|
Channel Power |
Range |
30 ~ 100 dBuV |
|
|
Accuracy |
& plusmn; 2.0 dB |
|
MER |
Range |
~30 dB |
|
|
Accuracy |
& plusmn; 2.0 dB |
|
BER |
CBER, VBER |
|
|
ECHOES Analysis |
Range |
0 ~ 112 us (2 k) 0 ~ 448 us (8 k) |
|
|
Marker |
50 Echoes List |
|
|
|
|
|
Power Supply |
|
|
|
Battery |
11.1 V 1.6 AH Lithium Battery(Chargeable) |
|
|
Charger |
AC 100 V to 240 V 50-60 Hz |
|
|
Working Time |
5 Hours (Fully Charged) |
|
|
Charge Time |
~ 3 Hours |
|
|
|
|
|
|
Others |
|
|
|
Serial Port |
RS 232 C |
|
|
Operating Temperature |
0 ~ 50 degree |
|
|
Dimension |
218 mm & times; 95 mm & times; 49 mm |
|
|
Weight |
700 g |
|
|
Display |
320 & times; 240 TFT |
|
