| Price: | US $ 1/Set |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |

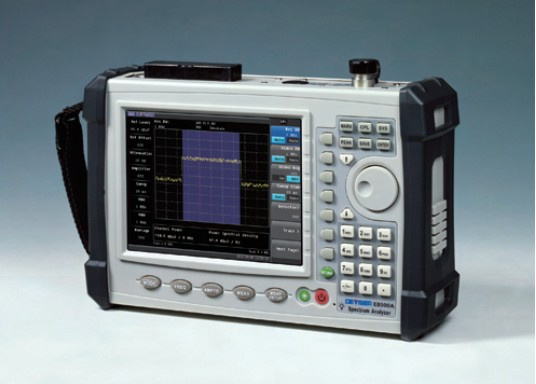

| Prod Model: | E8000A/E7000A |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency | |
| Frequency Range | 100 kHz ~ 3000 MHz |
| Frequency Reference | |
| Aging | ± 1 ppm per year |
| Stability | ± 1 ppm |
| Temperature Stability | ± 2 ppm (0 to +50º C) |
| Frequency Resolution | 10 Hz |
| Marker Count Accuracy (S/N 25 dB, RBW/span 0.01) | |
| Accuracy | ± 2 ppm, ± 1 count |
| Counter Resolution | 1 Hz |
| Frequency Span | |
| Range | 0 Hz (Zero Span), 1 kHz to 3000 MHz |
| Sweep and Trigger | |
| Range |
1 mSec to 250 sec (Span > 1 kHz) 20 μ Sec to 500 sec (Span = 0 Hz) |
| Accuracy | < ± 0.2% |
| Trigger Type | Free run, Single, Video, TV |
| Resolution Bandwidth | |
| Range |
1 kHz to 3 MHz in 1-3-10 sequence 30 Hz, 100 Hz, and 300 Hz (Optional) |
| Bandwidth Accuracy | < ± 10% |
| Selectivity (60 dB/3 dB Bandwidth Ratio) | < 5: 1 |
| Video Bandwidth | |
| Range | 10 Hz to 1 MHz in 1-3-10 sequence |
| Stability | |
| Phase Noise |
< -105 dBc/Hz @ 100 kHz offset from CW signal < -95 dBc/Hz @ 10 kHz offset from CW signal < -85 dBc/Hz @ 1 kHz offset from CW signal |
| Amplitude | |
| Measurement Range | Displayed average noise level to furthest safe input level |
| Input Attenuator | |
| Range | 0 dB ~ 50 dB |
| Step | 5 dB |
| Internal Preamplifier | |
| Frequency Range | 1 MHz to 3000 MHz |
| Gain | 15 dB |
| Max. Safe Input |
+30 dBm (peak power/input attenuation > 15 dB), 100 VDC |
| Displayed Average Noise Level (Input Terminated, 0 dB Attenuator, RBW=1 kHz, VBW=100 Hz, Sample Detector) | |
| Pre-amplifier OFF (Typical) |
< -117 dBm 1 MHz ~ 1 GHz < -113 dBm 1 GHz ~ 3 GHz |
| Pre-amplifier ON (Typical) |
< -130 dBm 1 MHz ~ 1 GHz < -126 dBm 1 GHz ~ 3 GHz |
| Spurious Responses | |
| Second Harmonic | < -70 dBc for -20 dBm signal at input mixer |
| TOI | > +15 dBm (two -20 dBm signals at input mixer with ≥ 1 MHz separation and att=0) |
| Residual Responses (Input Terminated and 0 dB Attenuator) | < -85 dBm 1 MHz to 3000 MHz |
| Display Range | |
| Log Scale |
0.1 to 1 dB/div in 0.1 dB step 1 to 40 dB/div in 1 dB step |
| Linear Scale | 10 divisions |
| Scale Units | dBm, dBmV, dBμ V, mV |
| Marker Readout Resolution |
0.03 dB for log scale 0.03% of ref level for linear scale |
| Traces | 3 traces |
| Trace Detector | Sample, Posi-peak, Neg-peak, Normal, Average |
| Marker Functions | Peak, Next peak, Marker to center, Marker to ref, etc. |
| Marker Display | Normal, Delta, Fix marker & Frequency counter |
| Reference Level | -130 dBm to +30 dBm |
| Level Accuracy | < ± 1 dB @ +25º C (Typical) |
| Input/Output | |
| RF Input | |
| Input | N connector |
| Input Impedance | 50 Ω |
| USB Port | USB 2.0 port and USB 1.1 port |
| LAN Port | 10 M / 100 M RJ45 |
| TG Out | |
| Output | N connector |
| Frequency Range | 10 MHz to 3000 MHz |
| Phase Noise | < -70 dBc/Hz @ 10 kHz |
| Level Range | -30 dBm to -0 dBm |
| Level Resolution | 1 dB |
| Level Accuracy | ± 2 dB |
| Harmonic Distortion | < -20 dBc |
| Non-Harmonic Distortion | < -30 dBc |
| Output Impedance | 50 Ω |
| Power Specifications | |
| Battery Type | 11.1V @ 5.2Ah Lithium-lon |
| Charge Time | < 5 Hours |
| Operating Time | > 3.5 Hours |
| AC Adapter | 19 V DC @ 3.42 A |
| Other Specifications | |
| Operating Temperature | -10 º C to +55 º C |
| Storage Temperature | -30 º C to +80 º C |
| Dimension (W x H x D) | 258 mm x 173 mm x 74 mm |
| Weight (With Battery) | < 2.2 kg |
| Display Type | 6.5 inch TFT color LCD |
| Display Resolution | 640 x 480 pixels |
| Language | Chinese, English |
| E7000A | E7100A | |
| Measurement |
VSWR Return Loss Cable Loss Distance-to-Fault (DTF) Return Loss Distance-to-Fault (DTF) VSWR 1-Port Phase Smith Chart |
|
| Frequency Range | 25 MHz ~ 4400 MHz | 25 MHz ~ 6000 MHz |
| Frequency Resolution | 1 kHz | |
| Frequency Accuracy | ± 5 ppm | |
| Output Power Level | 0 dBm typical | |
| Sweep Time | 1.5 ms/point | |
| Data Points | 130, 259, 517, 1033 | |
| RF Immunity | ||
|
0 dBm within ± 10 kHz of the carrier frequency +17 dBm @ > 1.0 MHz from carrier frequency |
||
| Corrected Directivity |
> 42 dB after OSL calibration > 38 dB after full span calibration |
|
| Return Loss | ||
| Range | 0.00-60.00 dB | |
| Resolution | 0.01 dB | |
| VSWR | ||
| Range | 1-65 | |
| Resolution | 0.01 | |
| Cable Loss | ||
| Range | 0.00-30.00 dB | |
| Resolution | 0.01 dB | |
| DTF | ||
| Return Loss Range | 0.00-60 dB | |
| VSWR Range | 1-65 | |
| Length |
0 to (Data points-1)/(Span× 2) × Vp × C Span=frequency range |
|
| Resolution (m) | =Vp × C /(Span× 2) | |
| RF Output Port | NF Type | |
| Impedance | 50 Ω | |
| Display | 6.5” TFT LCD, 640*480 | |
| Speaker | Internal | |
| Interface |
1 USB2.0, 1 mini USB 1 10 M / 100 M LAN port |
|
| Storage Space | 1GB memory, > 2000 trace files | |
| Operating Temperature | -10 ~ +55C | |
| Storage Temperature | -20 ~ +80C | |
| Weight | < 2.2 kg | |
| Dimension(L× W× H)( mm) | 258 × 173 × 74 | |
| Power Supply | ||
| Battery | 11.1 V, 5.2AH | |
| Continuous Work Time | > 4.5 Hours | |
| AC Adapter Output | 15 ~ 19 V DC | |
| AC Adapter Input | 100-240 V AC, 50-60 Hz | |
| Language | English, Chinese | |
