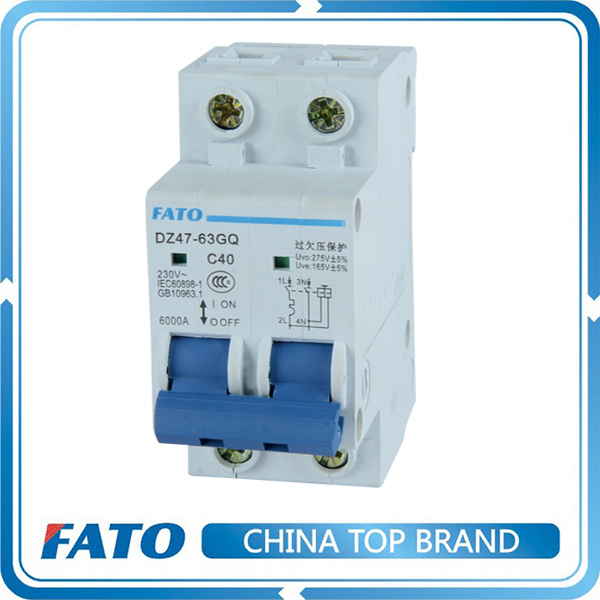

High quality DZ47-63GQ Over-voltage protection circuit breaker, parts of vacuum circuit breaker
APPLICATION
DZ47-63GQ series of single-phase over-voltage, under-voltage, over-under-voltage protection circuit breaker are applied in the circuit of rated current 63A below, AC50Hz and rated voltage 230V, and its over-voltage protection setting value is 270±5%, under voltage protection setting value is 170±5%.
It has the protection functions for overloading, short circuit and over-voltage of AC distribution system and electric equipment. It is widely used in electricity, posts and telecommunications, traffic, industrial enterprises and etc.This product is in accordance with IEC60898.
SPECIFICATION
Type | Pole |
Rated voltage
(V) |
Rated current
ln(A) |
Breaking current
lcn(A) |
Operate value | instantaneous tripping device |
| DZ47-63G |
1P+N
3P+N |
230
400 |
1~63 |
6000
4000 |
270±5%
170±5% |
C,D |
FEATURES & FUNCTIONS
the series products are made up of outer cover, op[erators, thermal trip, electromagnetic tripping device contact system, arc control system and over-under voltage protection circuit board and so on.
special design structure make it have 6KA breaking capacity.
mechanical life has over 20000 times.
installation guide for TH35-7.5 standard and with the following characteristics:
the handle is operated safely and comfortablely.
the protection setting value of over-under voltage can be setted by the users'needs.
while connecting the wire, please notice the zero line.
easily install.
