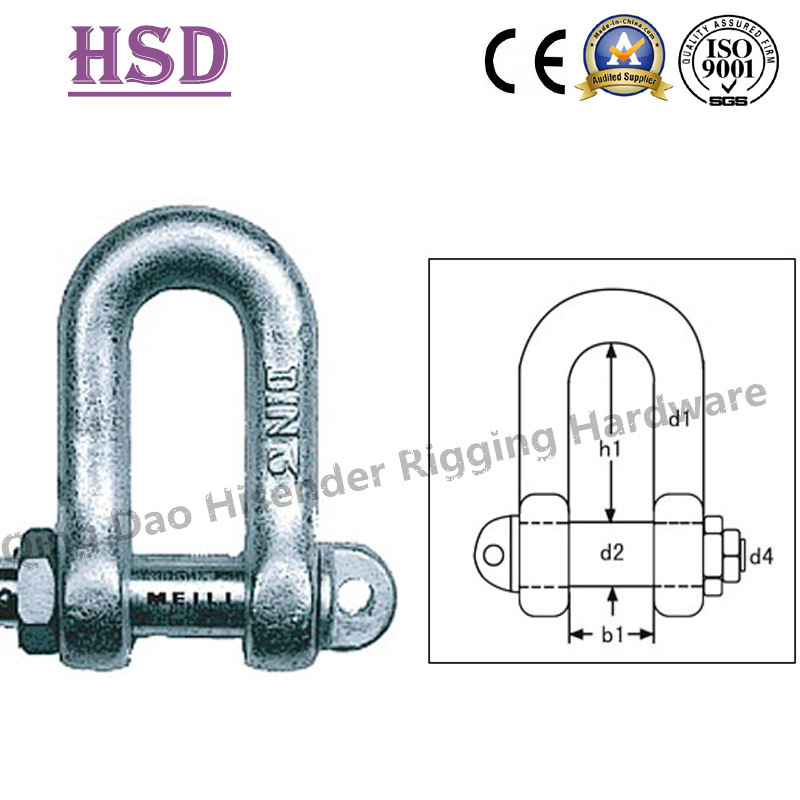

E. Galvanized DIN82101 a Type Shackle of Rigging Hardware

Product Specifications

Prod Model:	5mm-42mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Description:	DIN82101 a Type Drop Forged D Shackle
Surface Treatment:	E.Galvanized
Min Order Qty:	200PCS
Mainly Process:	Forged
Material:	Q235 Steel, 45# Steel, Alloy Steel
Color:	Any Colour According Customers Request

Product Description

Δ  1. Product   Description:

European Trawling shackel with Square Head Screw Pin

Nominal Size(tons)	SWL(kg)	D (mm)	d (mm)	a (mm)	c (mm)
0.2	200	8	6	12	35
0.3	330	10	8	16	45
0.5	500	12	10	20	50
0.9	930	16	12	24	60
1.4	1450	20	16	32	80
2.1	2100	24	20	36	90
2.7	2700	27	22	40	100
3.3	3300	30	24	45	110
4.1	4400	33	27	50	120
4.9	4900	36	30	58	130
6.8	6800	42	36	64	150
9	9800	48	42	70	170
10.7	10700	52	45	80	190
16	16000	64	52	99	235
21	24000	76	65	100	256

Δ  2.Material: Carbon steel, alloy steel, stainless steel, high strength steel.45# steel /Q235/Alloy Steel.


Δ 3.More Informations :

Surface: Galvanized / self color.

The  shackle mainly comprises a main body and a lateral pin.

The technology of the shackle is free forged, stamping .

The shackle is commonly used in lifting areas and mainly used for adjusting chainsaw to fasten cargoes

and machineries.

Name	Self color European Trawling with Square Head Screw Pin Shackle.
Material	Carbon steel, alloy steel, stainless steel, high strength steel.45# /Q235/Alloy Steel.
Surface	Galvanized (hot DIP and electroplating), painting, self colored, zinc plate
Process	Drop forged, stamping
Size	3mm-50mm
Origin	Qing Dao ,China
Standard	CE
Use as	Chain and Wire Rope Accessories
Function	For Lifting Industry
Packing	Gunny bag, wooden case, plastic drum.

Δ 4.Rigging Hardware- shackle type:

Screw Pin Anchor Shackle G-209

Round Pin Shackle G-213

Screw Pin Chain Shackle G-210

Round PIn Chain Shackle G-215

Bolt Type Anchor Shackle G-2130

Bolt Type Chain Shackle G-2150

Euro Type Large Dee Shackle Same Size Diameter Pin With Body

Euro Type Large Bow Shackle Same Size Diameter Pin With Body

Trawling Shackle With Square Head Screw Pin

Drop Forged Dee Shackle Italy Type

Grade 80 Dee Shackle With Bolt

Size/mm	W.L.L/ton	PIN DIA/mm	I.L/MM	N.W/kg
5	0.10	4	18	0.013
6	0.16	5	21	0.024
8	0.25	7	28	0.045
10	0.40	8	35	0.090
12	0.60	10	42	0.170
16	1.00	13	57	0.360
20	1.60	17	71	0.750
22	2.00	19	78	1.000
24	2.50	21	85	1.320
27	3.00	24	97	1.850
30	4.00	27	106	2.500
36	5.00	30	129	4.000
39	6.00	34	139	5.400

Δ 5.Other products

Qing dao Hisender Rigging Hardware also manufacture hooks, shackles, turnbuckles, wire rope clips,

Wire ropes ,load binders and other rigging hardware accessories.



Δ 6.Mainly export to :

Europeancountries,USA,Canada,Australia, Japan,Korea,Singapore ,Dubai  India, Dubai and many other

countries.


Δ 7. Advantages:


· China Leading Producing Technology

· Big Production Ability

· Fast Delivery

· Super High Quality

· Competitive Price

·  Production&  Export Experience From 2002

· Excellent Sale and After-sale Service

· OEM Available

Rich experience for international business, prompt delivery, quality control, small orders are acceptable.



Δ 8. Assurance,

· 100% quality manufacturing.

· Guarantee that our products meet your supplied specifications

· Extremely competitive pricing

· Delivery to your port or front door

· Partial container orders

·  Flexible payment options

· Unique tooling options

·  Full range of packaging options from bulk to retail ready

· Complete testing services available


Δ 9. Quality Assurance:


A.Have own factory and we can control every step by ourselves .

B. ISO 9001: 2008 international quality system certification .

C.High-qualityworkers.First-class advancedequipment, good quality control,   advanced technology.

D.Providing various kinds of packaging according to customers requirements, conventional   packaging is

    sack and the tray.


Δ 10. Service Assurance :

1.Reliable quality

Excellent hardware product processing enterprise.Focus on Hardware Producing from2002,supplying

high quality hardware products to customers.


2.Competitive price

We can produce various kinds of products according to your request on materials, technology, delivery

etc. so the prices are different. Welcome to inquire.

Little Profit, Long-term and Stable cooperation

Hope our little profit Win stable and long term cooperation.



3.Prompt delivery

Near to Qing Dao Port and Liuting International airport ,very convenient for transportation.


4.Good reputation

If there is Quality Problem , we will bear full responsibility.

All charge in our side.


5.Free Samples for provided if needed .


6.Accepting Designated Inspections from customer if needed .


7.All questions can be reply within 4 hours timely by professionalsales.
