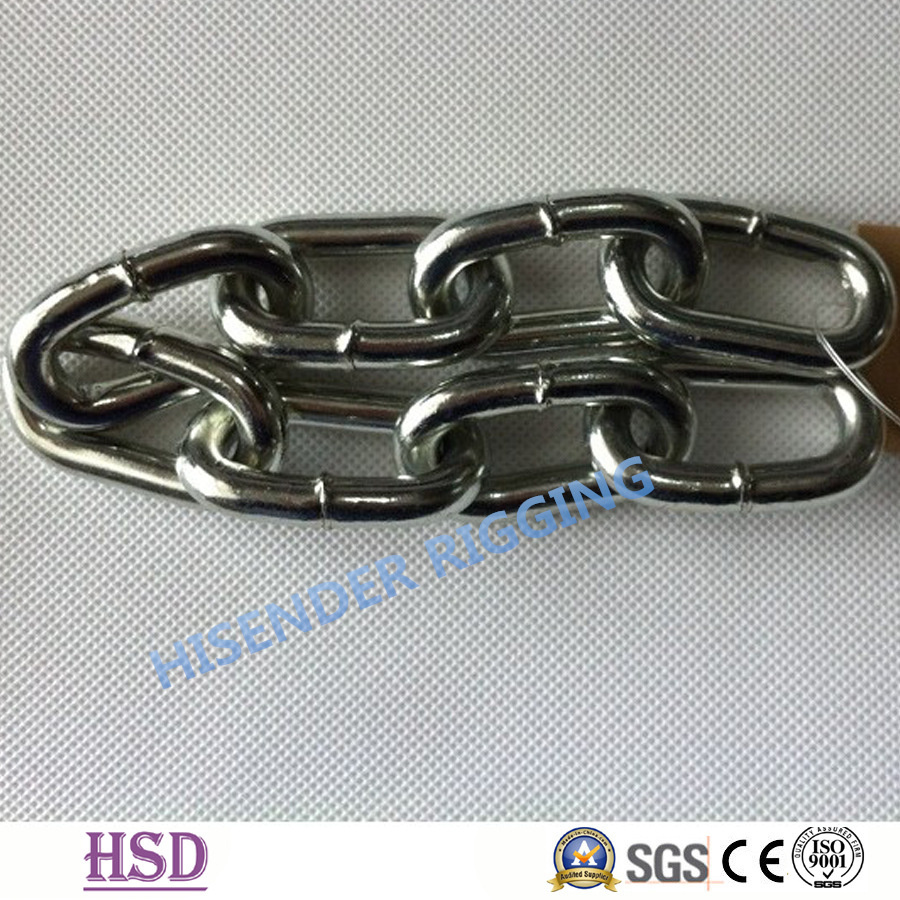

G30 Proofcoil Chain ASTM80 of Rigging Hardware

Name: G30 Proofcoil Chain ASTM80 of Rigging Hardware
Brand: china-manufacturer-directory.com
SKU: 699453172
Availability: InStock
Rating: 4.3 (26 reviews)

Price:	US $ 0.32/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Meter
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

ASTM80 Standard Link chain

Proofgoil chain ASTM80 (G30 )

Dia	Material Dia		Working Load		Test Load		Breaking Load		100 Links Length		100 feet weight
Dia	IN	MM	LBS	KG	LBS	KN	LBS	KN	IN	M	LBS	KG
3/16	0.218	5.5	750	340	1500	6.7	3000	13.3	99	2.51	42	19
1/4	0.281	7.1	1250	570	2500	11.1	5000	22.2	104	2.64	76	34
5/16	0.343	8.7	1900	860	3800	16.9	7600	33.8	114	2.89	115	52
3/8	0.406	10.3	2650	1200	5300	23.6	10600	47.2	128	3.25	166	75
7/16	0.468	11.9	3500	1590	7000	31.1	14000	62.3	142	3.60	225	102
1/2	0.531	13.5	4500	2040	9000	40.0	18000	80.1	156	3.96	289	131
5/8	0.656	16.7	6900	3130	13800	61.4	27600	122.8	194	4.92	425	193
3/4	0.781	19.8	9750	4420	19500	86.7	39000	173.5	220	5.59	612	278

()NACM84/90 ProofCoil Chain G30

Size		Material Dia		Working Load		Test Load		Breaking Load		Inside Length		Inside Width
MM	IN	MM	IN	KG	LBS	KN	LBS	KN	LBS	MM	IN	MM	IN
4.0	1/8	4.0	0.156	170	375	3.6	800	7.1	1600	23.9	0.94	6.4	0.25
5.5	3/16	5.5	0.217	365	800	7.2	1600	14.3	3200	24.8	0.98	7.7	0.30
7.0	1/4	7.0	0.276	580	1300	11.6	2600	23.1	5200	31.5	1.24	9.8	0.38
8.0	5/16	8.0	0.315	860	1900	15.1	3400	30.2	6800	32.8	1.29	11.2	0.44
10.0	3/8	10.0	0.394	1200	2650	23.6	5300	47.1	10600	35.0	1.38	14.0	0.55
13.0	1/2	13.0	0.512	2030	4500	39.8	8950	79.6	17900	45.5	1.79	18.2	0.72
16.0	5/8	16.0	0.630	3130	6900	60.3	13600	120.6	27200	56.0	2.20	20.0	0.79
20.0	3/4	20.0	0.787	4800	10600	94.3	21200	188.5	42400	70.0	2.76	25.0	0.98
22.0	7/8	22.0	0.866	5810	12800	114.1	25600	228.1	51200	77.0	3.03	27.5	1.08
25.0	1"	26.0	1.020	8140	17900	159.1	35800	318.2	71600	90.9	3.58	31.7	1.25

()NACM963Standard ProofCoil Chain G30

Size		Material Dia		Working Load		Test ;oad		Breaking Load		Inside Length		Inside Width
MM	IN	MM	IN	KG	LBS	KN	LBS	KN	LBS	MM	IN	MM	IN
4.0	1/8	4.0	0.156	180	400	3.8	800	7.2	1600	23.9	0.94	6.4	0.25
5.5	3/16	5.5	0.217	365	800	7.2	1500	14.4	3200	24.8	0.98	7.7	0.30
7.0	1/4	7.0	0.276	580	1300	11.6	2600	23.2	5200	31.5	1.24	9.8	0.38
8.0	5/16	8.4	0.331	860	1900	16.9	3800	33.8	7600	32.8	1.29	11.2	0.44
10.0	3/8	10.0	0.394	1200	2650	23.5	5300	47.2	10600	35.0	1.38	14.0	0.55
11.9	7/16	11.9	0.488	1680	3700	32.9	7400	65.8	14800	41.5	1.64	16.6	0.65
13.0	1/2	13.0	0.512	2030	4500	40.0	9000	80.0	18000	45.5	1.79	18.2	0.72
16.0	5/8	16.0	0.630	3130	6900	61.3	13800	122.8	27600	56.0	2.20	20.0	0.79
20.0	3/4	20.0	0.787	4800	10600	94.3	21200	188.6	42400	70.0	2.78	25.0	0.98
22.0	7/8	22.0	0.866	5810	12800	114.1	25600	228.2	51200	77.0	3.03	27.5	1.08
25.0	1	26.0	1.020	8140	17900	159.1	35800	318.2	71600	90.9	3.58	31.7	1.25

Material :Q235 steel, 20Mn Steel, 20Mn2 steel , Alloy steel

Product Description:

ASTM80 Standard, ASTM96 Standard link chain

Size: 1/8" - 1 1/2"

Packing& delivery: Gunny bag inner with pvc bag, plastic bucket/reel,metal

                                      pail and other packing ways as customer .


Quality & Service Assurance

1 Reliable partner: Reliable Supplier & over 20 years in manufacturing link chain.

2.Great quality: Control for each product, from the raw material to the final

                           process.

3. Price: Offer the lowest ex-factory prices with a wide range of shipping ways.

4.Certification: ISO, CE material certificate, quality certificate, management

                          certificate, test reports.

5.Transportation close to Qingdao Port & Airport, which provides great

                         advantages to the trade.

6.Quick response: All inquiries responded within 4 hours.

7.Timely delivery.

Free samples can post you for check and test, if needed.

Waiting for our pleasure cooperations.

Prod Model:	1/8"--1 1/2"
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Techology:	Semi Auto Welded Chain
Mainly Export:	USA, Canada, Australia, European Countries
Quality Standard:	ASTM80 G30, G43
Supply Certificate:	Working Load & Breaking Load Test Certificate
Usage:	Lifting Chain, Industrial Chain, Ship Fishing
Material:	Q235,20mn,20mn2,Cm490
Surface Treatment:	Galvanized, Polishing, Painted
Chain Size:	1/8"-1 1/2"
