E14 Lamp Gauges, Go Not Go Gauge, Go Gauge, Contact-Making Gauge

Name: E14 Lamp Gauges, Go Not Go Gauge, Go Gauge, Contact-Making Gauge
Brand: china-manufacturer-directory.com
SKU: 710323335
Availability: InStock
Rating: 5 (149 reviews)

Supplier:	Kingpo Technology Development Limited
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	CFR,CIF,EXW

Product Specifications

Prod Model:	IEC60061-3 E14
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

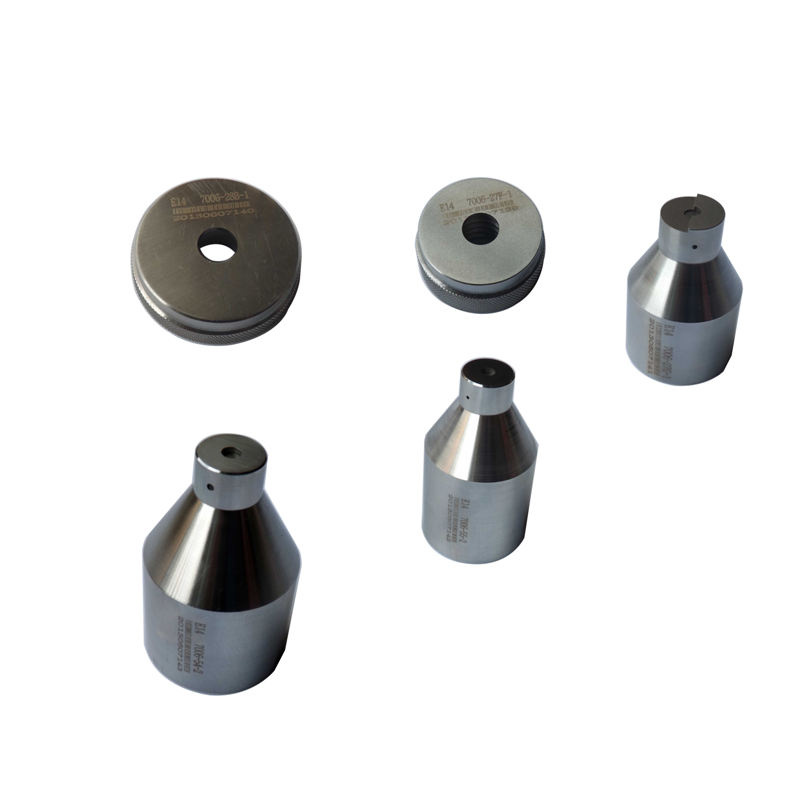

IEC60061-3 E14 Lamp gauges

7006-27F-1
Go gauge for E14 caps on finished lamps
Purpose: To check the maximum dimensions of the screw thread and dimension T1 minimum of E14 caps on finished lamps.
Testing: When the cap on a finished lamp has been screwed into the gauge as far as it will go, the centre contact shall be co-planar with, or project beyond surface X. "
7006-28B-1
Not go gauge for E14 caps on finished lamps
Purpose: To check the minimum outside(major) diameter of the screw thread, dimension d, of E14 caps on finished lamps.
Testing: When the gauge is placed over the thread of the cap on a finished lamp, held cap uppermost, the centre contact shall not project beyond surface X.
Only the weight of the gauge itself shall be used in the test. "
7006-55-2
Gauge for finished lamps fitted with E14 caps for testing protection against accidental contact
"Purpose: To check protection against accidental contact.
Testing: The shape of the lamp with regard to protection against accidental contact is assumed to be correct if the test sample being pushed as far as possible into the gauge, plane W does not protrude beyond plane V. "
7006-27G-1
Go gauge for dimension "S1" of E14 caps on finished lamps "Purpose: To check the dimensions S1 minimum and S1 maximum of E14 caps on finished lamps.
Testing: When the cap on a finished lamp has been pushed into the gauge as far as it will go, the plunger surgace W shall be co-planar with or project beyond X but it shall not project beyond surface Y. "
7006-54-2
Gauge for finished lamps fitted with E14 caps for testing contact making "
Purpose: To check lamp dimensions for contact making in IEC holders.
Testing: The shape of the lamp with regard to the fit in the lampholder is assumed to be correct if the lamp can be pushed into the gauge till plane W reaches plane V or projects beyond it. "
IEC60968 Figure 2
Holder for torsion test on lamps with screw caps

IEC60061-3 E14 Lamp gauges
Model	Gauge	Description	Photo
7006-27F-1	Go gauge for E14 caps on finished lamps	Purpose: to check the maximum dimensions of the screw thread and dimension T1 minimum of E14 caps on finished lamps. Testing: when the cap on a finished lamp has been screwed into the gauge as far as it will go, the centre contact shall be co-planar with, or project beyond surface X.
7006-28B-1	Not go gauge for E14 caps on finished lamps	Purpose: to check the minimum outside(major) diameter of the screw thread, dimension d, of E14 caps on finished lamps. Testing: when the gauge is placed over the thread of the cap on a finished lamp, held cap uppermost, the centre contact shall not project beyond surface X. Only the weight of the gauge itself shall be used in the test.
7006-55-2	Gauge for finished lamps fitted with E14 caps for testing protection against accidental contact	Purpose: to check protection against accidental contact. Testing: the shape of the lamp with regard to protection against accidental contact is assumed to be correct if the test sample being pushed as far as possible into the gauge, plane W does not protrude beyond plane V.
7006-27G-1	Go gauge for dimension "S1" of E14 caps on finished lamps	Purpose: to check the dimensions S1 minimum and S1 maximum of E14 caps on finished lamps. Testing: when the cap on a finished lamp has been pushed into the gauge as far as it will go, the plunger surgace W shall be co-planar with or project beyond X but it shall not project beyond surface Y.
7006-54-2	Gauge for finished lamps fitted with E14 caps for testing contact making	Purpose: to check lamp dimensions for contact making in IEC holders. Testing: the shape of the lamp with regard to the fit in the lampholder is assumed to be correct if the lamp can be pushed into the gauge till plane W reaches plane V or projects beyond it.
IEC60968 Figure 2		Holder for torsion test on lamps with screw caps

Kingpo Technology Development Limited Of which registed in Hongkong, capacity 10million HKD. We have a factory located in Dalang Town, Humen, Dongguan.

One of the best gauge manufacturer in Guangdong.

We have in this industy more than 10 years, with rich experience and skilled staffs. Master all kinds of international standards, say: BS1363, IEC60884, IEC 60320, GB1002, UL, AS, VDE, and so on.

Do our best to provide excellent product and service. --this is our aim.
