Product Specifications
| Prod Model: |
FM-6090 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Xyz Working Area: |
600*900*100mm(as You Customize) |
| Table Size: |
720*1150mm |
| Spindle: |
1.5kw Water Cooling Spindle |
| Spindle Speed: |
0-24000rpm/Min |
| Max Travel Speed: |
6m/Min |
| Max Engraving Speed: |
4m/Min |
| Motor And Driver: |
Stepper Motor and Drivers |
| Rails: |
Square Guide Rail |
| Transmission: |
Rack & Ball Screw |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Manual |
| Controlling Mode: |
CNC |
| Certification: |
SGS |
Product Description

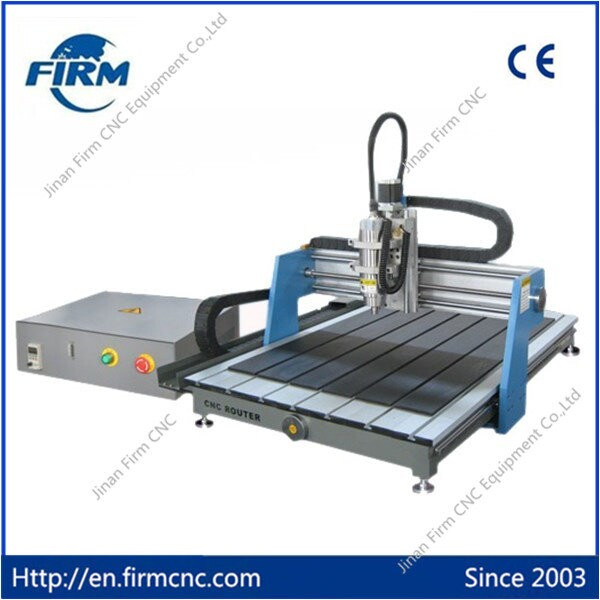

Easy Operation Carving Engraving CNC Woodworking Machine
The characteristics of this CNC router:
1. High speed, high torque, high precision 3.0Kw water cooling gurantees the high wooking speed and accuracy
2. Taiwan Hiwin square rails gurantees the accuracy and strength of the machine.
3. The servo motor adopt the current control systerm save the power consumption.
4. DSP control system, no need computer.
5. If it works on the cylinder, the max diameter is: Φ 100mm. The max length is: 1200mm.
6. It adopt the T slot with clamp as working table, then you could fit different size of carved materials.
7. It has the break-point memory points for 10 pcs, reducing materials waste.
8. Iron cast wholly frame, double-screw auto eliminating clearance ball screw, floor-type liner guide transmission.
9. Well designed dust and wanter proof device ensure the machine easy maintenance.
10. CAD/CAM designing software like Type 3/ArtCAM/Castmate /wentai and so on.
After-Sale Service:
1. Technical files service provided.
2. On-site training service provided.
3. Free training course at our plant.
4. Lifetime maintenance free of charge.
5. Technical support online service provided.
6. Spare parts replacement and repair service provided.
7. We will provide the consumable parts at an agency price when you need replacement.
About us:
Jinan Firm CNC Equipment Co., Ltd. Is One of the leading developer and manufacturer of high-performance CNC ROUTER, For diverse applications in numerous markets. It was established in 2003, We focus on Wood CNC Router, Stone CNC Router, Laser Machine, Plasma machine. We uphold the concept of "CUSTOMER FIRST, QUALITY FIRST, SERVICE FIRST"We have enjoy a good reputation all over the, and our products enjoy a good market all over the world!
F A Q:
Delivery time: 20-25 working days
Payment term: 30% T/T down payment, 70% T/T upon copy of bill of lading in one week.
Remark: Installation guide and manual and tool kit will be sent to Buyer with machine.
All spare parts on machine we take use high quality and professional installation.
Machine has been tested for 72 hours without stop before delivery.
CE authorized and ISO9001 Firm strictly carried out.
Last but most important, if you are interest in or have any questions about this CNC router, please contact us without any hesitate, we will offer the best service for you.
| Model | FM-6090 |
| XY working area | 600x900mm ( as you customize) |
| Z working area | 100mm |
| Table size | 720x1150mm |
| Max travel speed | 6m/min |
| Max engraving speed | 4m/min |
| Resolution ratio | 0.01mm |
| Reposition accuracy | 0.05mm |
| Max feeding height | 100mm |
| Command | G code*. u00*. mmg*. plt |
| Surroundings for software | Windows98/2000/xp |
| Power(not include the spindle) | 300W |
| Working voltage | AC220V/50Hz |
| spindle power rate | 1500 W |
| spindle rotating speed | 0-24000rpm/min |
| Drive motor | stepper |
