Product Specifications
| Prod Model: |
6000N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accuracy: |
+/-1% |
| Output Ratio Of Single Lever: |
10:1 |
| Output Ratio Of Double Lever: |
50:1 |
| Capacity: |
Single Lever 1000n , Dual Lever:6000n |
Product Description
Purpose:

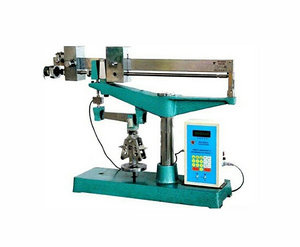

For flexural strength test of cement specimen and other nonmetallic material.
Standard:
GB/T17671,GB3350,BS4550,ISO679
Technical Parameters:
Accuracy: ±1%
Output ratio of single lever: 10:1
Output ratio of double lever: 50:1
Capacity:single lever: 1000N , Dual lever:6000N
Loading rate:Single lever:(10±1)N/s , Dual lever:(50±5)N/s
Motor Model: D-63
Power: 220V 50Hz 15W
Flexure jig:
Diameter of the loading and supporting bars: Φ10mm
Central distance between two supporting bars: 100mm
Effective distance between the loading and supporting bars: 46mm
Relative indication error: 1%
Purpose:
For flexural strength test of cement specimen and other nonmetallic material.
Standard:
GB/T17671,GB3350,BS4550,ISO679
Technical Parameters:
Accuracy: ±1%
Output ratio of single lever: 10:1
Output ratio of double lever: 50:1
Capacity:single lever: 1000N , Dual lever:6000N
Loading rate:Single lever:(10±1)N/s , Dual lever:(50±5)N/s
Motor Model: D-63
Power: 220V 50Hz 15W
Flexure jig:
Diameter of the loading and supporting bars: Φ10mm
Central distance between two supporting bars: 100mm
Effective distance between the loading and supporting bars: 46mm
Relative indication error: 1%
