Product Specifications
| Prod Model: |
GEM-70+35MM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screw Design: |
Single-Screw |
| Model Number: |
Gem-70+45mm |
| Voltage: |
380V |
| Power(W): |
30kw |
| Inverter: |
Germany-Siemens |
| Bearing: |
Japan-NSK |
| Electric Element: |
Siemens and Omron |
| Precision: |
High Precision |
| Certification: |
ISO |
| Demoulding: |
Pull Core |
| Heating System: |
Electric |
| Function: |
High Temperature Resistance |
| Mould Life: |
300,000-1,000,000 shots |
| Automatic Grade: |
Semiautomatic |
| Condition: |
New |
| Customized: |
Customized |
| Warranty: |
12 Months |
Product Description
1. Professional and Strong Manufacture and Sells Team:
| GEM YOUNG R&D TEAM |
| Name | Position | working experience | Main research | successful project |
| zanyang Xie | General engineer | 10 years | Drawing and designer | power cable machine |
| xiaohua Hu | Vice general engineer | 8 years | Designer | cate5 cable machine |
| jingxin Liu | cable technology engineer | 15 years | cable making designer | teflon cable machine |
| weihua Li | electrical engineer | 7 years | electrical research | over seas machine install |
| kangyou Wu | produce manager | 6 years | product produce | car cable machine |
| Jack | sells manager | 5 years | export service | 3 times overseas after service |
2.GEM Spare Parts Brands:
Motor: Dongguan Motor , Teco, ABB, Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF
3.GEM General Description
It is suitable for the extrusion of PVC,PE and other plastic material, .The extruder can extrude single color, double color, co-stripes,mono layer, dual layer .
Mainly applied in the insulation or sheath extrusion of Automotive cable, cat 5e,6,7,Power cable, Data cable, Building wire, Electric wire. etc.
One and two extruders: skin/stripe process
Co-extrusion: simultaneously filling and sheathing
Tandem extrusion: two extrusion groups, one for filling and one for sheathing
Three extruders : skin/stripe quick colour change
Salient features
1.Quick stripe/skin colour change system
2.Taiwan design screw,insulation of high speed conductors with various thermoplastic materials
3.Multi-pass compartment and integrate motorization keep you Reduced line volume and high cooling capacity
4.take-up solutions on reels or coils
5.extrusion line with coiler online
6.high efficient pay-off to make sure operation non-stop
7.The mobile Extruder fixed to the ground and could easily be changed for any line direction.
8.PLC+Professional numerical control software, industrial computerized operation,Store,display & revise the technical parameters,wholly controlling,adjusting and monitoring the state of the producing.

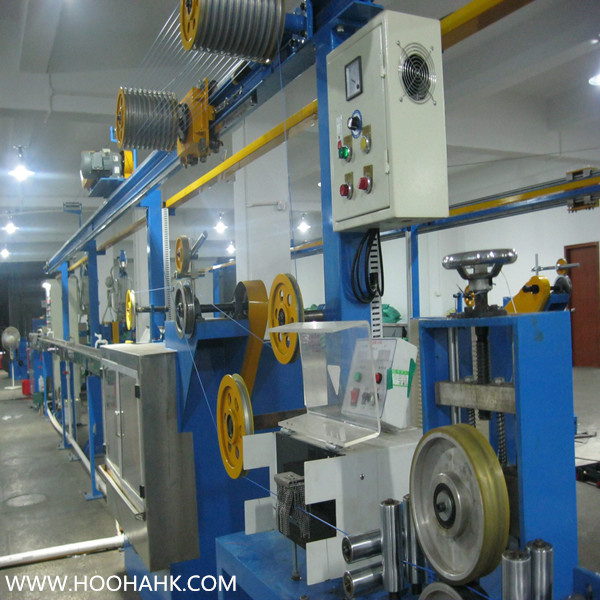

GEM YOUNG automatic cable extruder machine |
| Model | GEM-35 | GEM-50 | GEM-70 | GEM-80 |
| Pay off | 1.fork type pay off 2.flyer pay off 3.motorized pay off |
| L/D ratio | 24.0/1.0 | 26.0/1.0 | 26.0/1.0 | 26.0/1.0 |
| Driven motor | 4 | 15 | 30 | 30 |
| Screw speed | 120 | 120 | 110 | 110 |
| Max. Capacity | PVC 40 LDPE 24 LSHF .. | PVC 110 LDPE 70 LSHF 80 | PVC 210 LDPE 70 LSHF 80 | PVC 270 LDPE 175 LSHF 210 |
| Finished Dia. | 0.5-2 | 1.0-6.0 | 2.0-12 | 3.0-20 |
| Cooling device | Singgle/double layer | Singgle/double layer | Singgle/double layer | Singgle layer |
| Take up | 1.dual bobbin type 2. auto change type 3.fork type 4.coiler |
| Temperature control | 7 zones | 7 zones | 8 zones | 9 zones |
GEM YOUNG Bobbin data: ( in mm unit) |
| Flange | Barrel | Over width | Traverse width | Bore |
| 630 | 315 | 475 | 400 | 56 |
| 800 | 400 | 600 | 500 | 80 |
| 1000 | 500 | 750 | 630 | 80 |
| 1250 | 630 | 950 | 800 | 80 |
4.Afetr service
1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online
5.Contact information:
Phone: +8613763134250
Http//:www.hoohahk.com
http://hoohaco.en.made-in-china.com/
Add:No. Beice District, Humen Town,
Dongguan City, Guangdong Province,China
6.Where are we:
Hongkong airport to Humen by boat 2 hours
Guangzhou airport to Humen by car 2 hours
Shenzhen airport to Humen by car 1 hour
Guangzhou South high speed train station to Humen 20 minutes
Shenzhen North high speed train station to Humen 20 minutes
GemYoung Wire & Cable Equipment Factory is a comprehensive enterprise integrating the manufacture, sale and export of wire & cable equipment, such as all kinds of cable extrusion lines, cable twisting bunching machines, cable coiling machines, and wire drawing machines. We have rich experience in designing and making wire and cable machinery. Especially, we are good at customized design, technical solution and manufacture.
We have established favorable relationships with many worthy customers around the world. Our customers are from China, North Africa, the Middle East, South Asia and South America. Consequently, our products are popular in domestic and international markets. Our object is "to base upon honesty, sell excellent quality, and serve for customers". We sincerely look forward to establishing cooperation with you in the future.
Main products:
*Electric wire extrusion production lines
*High speed building wire extrusions
*Extrusion for chemical cables
*Extrusion for physical foam coaxial cables
*Teflon extrusion lines
*High speed twist bunching machines
*High speed swivel arm single twisting machines
*HDMI single twist machines
*High speed double twisting machines
*High speed tapping machines
*High speed braiding machines
*Cable shielding machines
*High speed auto coiling machines
*Auto cutting machines
*Wire drawing machine
*Sub (color)-extruders
*Pay off stand series
