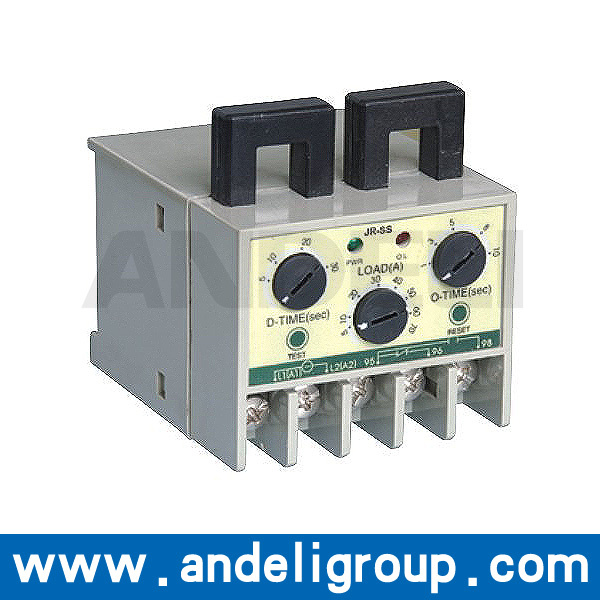

Electrical Relay Electronic Overload Relay (JR-SS)

Name: Electrical Relay Electronic Overload Relay (JR-SS)
Brand: China-Manufacturer-Directory.com
SKU: 607133594
Availability: InStock
Rating: 4.6 (60 reviews)

Supplier:	Andeli Group Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	JR-SS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	600vac, 50/60Hz

Product Description

Why choose us?

1. 20 years - Andeli Group Co.,Ltd is founded in 1993.
2. 12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3. 300 cooperating companies - We have over 300 cooperating companies.
4. 3000 workers - We have over 3000 workers.
5. USD150,000,000 - The total assets is USD150,000,000.
6. 235,000 square meters - The area of Andeli is 235,000 square meters.
7. Certification - We have passed ISO9001:2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...

Application

AJR-SS electronic overload relay is suitable for AC 50/60Hz, voltage up to 600VAC and currentup to 60A. It is used as overload and phase loss protection, independently adjustable startingand trip delay, visual current setting aid and trip indication, fail safe protection (N type) andelectronic shear pin function. The product conforms to IEC60947-1 standard.

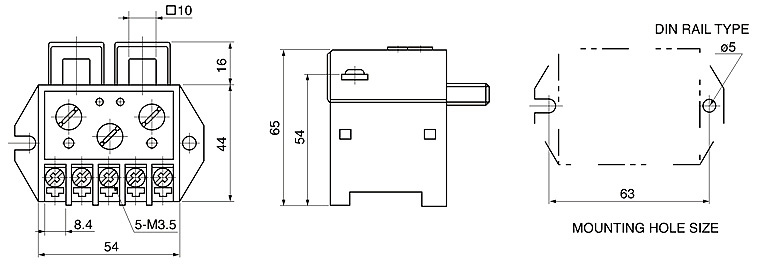

Dimension

About us

Type	AJR-SS
Current range	05)0.5-5A(scale 6.5A)
	30)3-30A(scale 35A)
	60)5-60A(scale 70A)
Rated voltage	600VAC, 50/60Hz
Operation setting	D-TIME		0.2-30seconds
	O-TIME		0.2-10seconds
Accuracy	Current		± 10%
	Time		± 15% of max. time set value
Time characteristics	Definite time
Control voltage	220)Voltage free(90~260)VAC, 50/60Hz 440)Voltage free(320~480)VAC, 50/60Hz Other voltage optional.
Current sensing	2 CTs
Output contacts	Contacts		SPDT 3A/250VAC Resistive
	Condition	N Type	Normally energized: 95- -98closed
		R Type	Normally De-energized: 95-\|/\|-98closed
Reset	Manual or remote electrical by interrupting supply
Environment	Temp. Run	Run	-20+70 deg. o C
		Store	-30+80 deg. o C
	Humidity		45~85% RH, non-condsing
Insulation	Between casing and circuits: Over 10MΩ with DC 500V megger
Dielectric strength	1)Between casing & circuits: AC 2000V, 60Hz, 1 min
	2)Between contacts: AC 1000V, 60Hz, 1 min
	3)Between contacts: AC 2000V, 60Hz, 1 min
Power consumption	Under 2W
Mounting	35mm Din Rail(D)
The run-up current of motor(starting current)does relay trip because overcurrent protection of AJR-SS is not applied during motor run-up time.

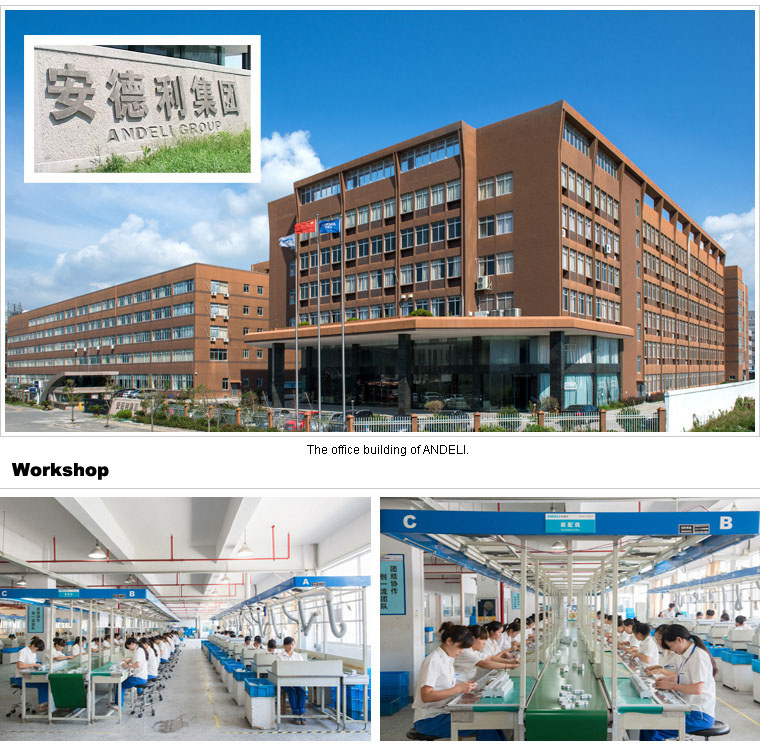

Established in 1993, ANDELI Group Co., Ltd. is a specialized manufacturer of low voltage electrical equipment. ANDELI Group owns 12 share-holding companies in Shanghai, Hunan, Zhejiang, UAE and over 300 member enterprises. "ANDELI" trademark is identified as one of the Chinese well-known trademarks. ANDELI Group ranks among top 500 in electric industry in China and our products are granted the title of the national products exempt from inspection.

With a workshop covering more than 27, 000 square meters, we are able to supply various circuit breaker, MCB, MCCB, RCCB, contactors, relays, fuse, transformer, voltage stabilizer, switching power supply, meters, solar products, welder and other electric products.

Moreover, with over 60 series and more than 2, 000 specifications, the annual output volume has reached USD24, 000, 000 in 2013. ANDELI regards quality of products as life. Our company is certified with ISO9001 and we have obtained CCC (China Compulsory Certification), RoHS, CCEE, CE, CB, SIMKO and KEMA certificates.

Through outstanding performance and excellent reputation, ANDELI has won many national awards and been recognized as one of the distinguished brand name in its local market. In the future, ANDELI will continue ensuring that our products meet the expectation of our customers with respect to product quality, and pursuing advance to integrative value of enterprise and sustainable growth.

Providing quality products, excellent service, competitive price and prompt delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
