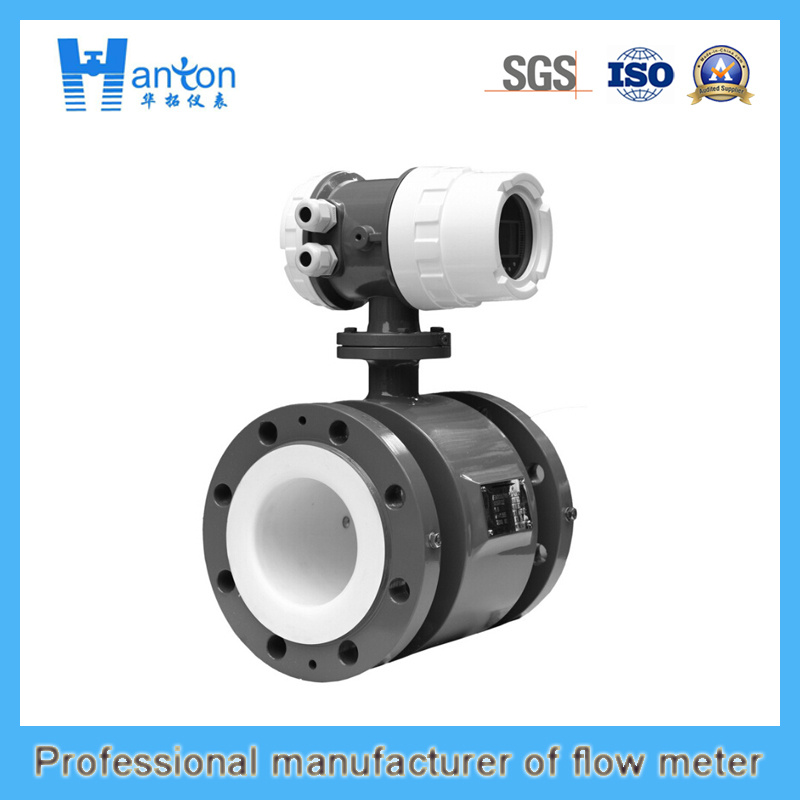

Electromagnetic Flow Meter for Measuring (all kinds of) Liquid
| Price: |
US $ 300-400/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
We supply excellent quality Electromagnetic Flow Meter which is fully automatic and digitally designed by our technologist. This flow meter is simply structured, reliable, no movable parts and long operation life. These product range have no mechanical inertia, quick response and good stability, application in automatic examination, and regulation and controlling. Measuring accuracy is uninfluenced by the physical parameters such as type, temperature, viscosity, density and pressure. This range of product posses operation data for safe and firm protection of memory. Our product is made from fine quality basic components, the products meet the need of different mediums. We offer many types of flow meter such as Sandwich type and insertion type. We also provides client's specifications according to their requirement.
Electromagnetic flowmeter is designed to measure flow of both liquid, solid-liquid and gas adopting measuring principle of Faraday's Law.
Characteristics:
1. No abrasion and long service life due to non-moving parts when operation.
2. Ratio of measuring range is 1:100.
3. Suitable to any electric conductive mediums.
4. Anti-Corrosion and wear-resisting thanks to material and construct of the product.
5. Double lines LCD, showing both instantaneous and accumulated flow.
| Diameter | DN15 to DN500 |
| Material of Lining | PTFE or PFA, or Ne, FEP |
| Mediums | Liquid, solid and etc conductive |
| Conductivity | > 20μ s/cm |
| Accuracy | 0.5 to 1.0 |
| Flow range | 0.05m/s to 12m/s |
| Working temperature | 5º C to 55º C |
| Working pressure | 0.6Mpa to 4.0Mpa |
| Temp of mediums | -40º C to 180º C |
| Protection Grade | IP65 or IP67 or IP68 |
Signal
output | 0 to 10mA DC or 4 to 20mA DC |
| Communication | RS485/232C HART, Modbus, Profibus |
| Power supply | 220VAC 50HZ, 24V DC |
| Anti-explosion grade | ExiaIICT6 or ExiaIIBT |
| Housing material | Carbon steel or stainless steel |
| Electrode material | stainless steel or recommended |
| Prod Model: |
HT-071EMFM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressure Loss: |
0.6~4.0MPa |
| Measurement Range: |
0.3~15m/S |
| Lining Material: |
Hygienic PTFE |
| Electrode Material: |
Mo with Stainless Steel, Ti, Ta, H, PT |
| Housing Material: |
Stainless Steel |
| Medium Temperature: |
-40oc ~ +180oc |
| Environment Temperature: |
5oc ~ +55oc |
| Power Supply: |
220V AC or 24V DC |
| Protection Level: |
IP65 |
| Type: |
Variable Area Flow Meter |
| Measuring Principle: |
Electrical Principles |
| Measuring Media: |
Liquid |
| Sensor: |
Tube/Flange |
| Accuracy: |
0.5%, -0.5% |
| Size: |
Dn15~Dn500mm |
