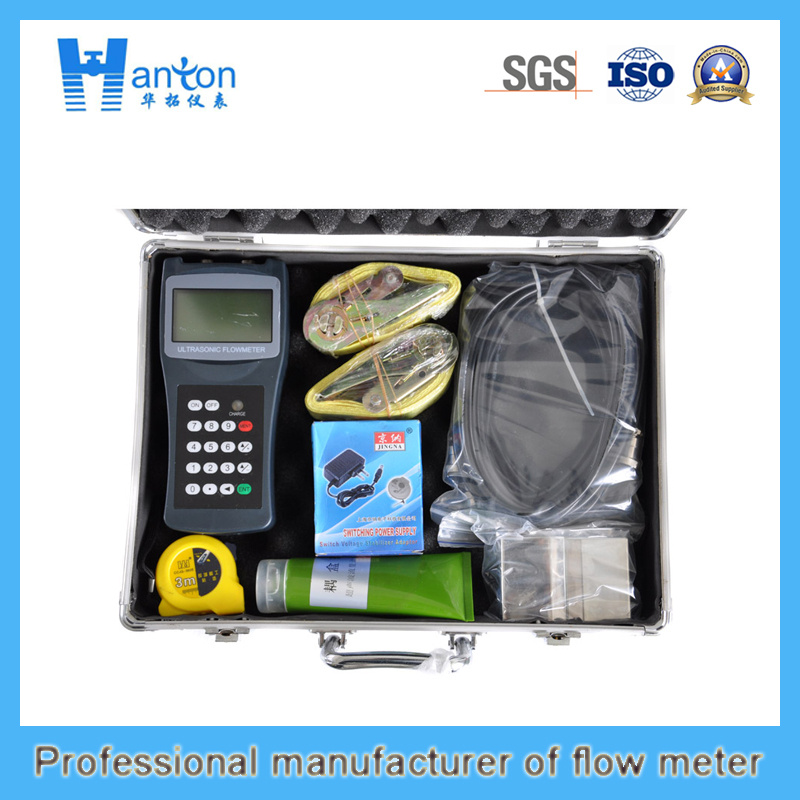

Handheld Ultrasonic Flow Meter (Flowmeter)
| Price: |
US $ 300-400/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Handheld ultrasonic flowmeter is suitable for calibration and inspection of various liquid flow in industrial field, which has many superiorities, such as high accuracy, good consistency, easy to carry and installation, and etc.
1. Product description
| Accuracy | ± 1% |
| linearity | 0.5% |
| Repeatability | 0.2% |
| Power supply | 90~230VAC |
| Display | LCD display showing instantaneous flow, accumulated flow (positive, negative and net), velocity, working status and etc. |
| Size of main body | Around 90x200x30mm |
| Weight of main body | Around 500g |
| Signal output | RS232 |

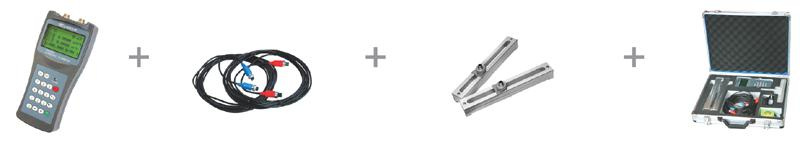

| Sensor | Standard model M1 with 3 other options |
| Cable | 5meters or 10meters or 15meters 2pcs each |
| Size of pipe | DN15-100 or DN50-700 or DN300-6000 |
| Housing Material | ABS or Aluminium alloy or Heat-resisting material |
| Installation | External applying on outer side of pipes without any disturbing production. |
2. Options of sensor:
| Item | Option1 | Option2 | Option3 | Option4 | Option5 | Option6 | Option7 |
| Suitable for size pipe | DN15-100 | DN50-700 | DN15-100 | DN50-700 | DN300-6000 | DN15-100 | DN50-700 |
| Housing Material | Aluminium alloy | Aluminium alloy | ABS | ABS | ABS | Heat-resisting material | Heat-resisting material |
| Way of installation | Shape of V or N or W | Shape of V or Z | Shape of V or N or W | Shape of V or Z | Shape of Z | Shape of V or N or W | Shape of V or Z |
| Protection grade | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Dimension | 200× 25× 25mm | 280× 40× 40mm | 45× 30× 30mm | 60× 45× 45mm | 80× 70× 55mm | 90× 85× 24mm | 90× 82× 29mm |
| Weight | 250g | 1080g | 75g | 250g | 650g | 94g | 150g |
| Fluid temp | 0 to 70º C | 0 to 70º C | 0 to 70º C | 0 to 70º C | 0 to 70º C | 0 to 160º C | 0 to 160º C |
| Prod Model: |
HT-003UF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Linearity: |
0.5% |
| Repeatability: |
0.2% |
| Non-Intrusive Measuring: |
External Applying on Outside of Pipes |
| Liquid Types: |
Water, Sea Water, Industrial Sewage, Alcohol |
| Material Of Pipe: |
Carbon Steel, Stainless Steel, Cast Steel, PVC |
| Size Of Pipe: |
Dn15mm to Dn6000mm |
| Power Supply: |
Rechargeable Ni-MH Built-in Batteries |
| Display: |
LCD Display Showing Instantaneous Flow |
| Small And Light: |
Size of Main Body Is Only 90X200X30mm |
| Type: |
Ultrasonic Flow Meter |
| Measuring Media: |
Liquid |
| Main Application: |
Wastewater |
| Sensor: |
Clamp-on/External |
| Measuring Principle: |
Ultrasonic |
| Accuracy: |
±1% |
| Size: |
Dn15-100, Dn50-700, Dn300-6000 |
