Product Specifications
| Prod Model: |
SHD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sensor: |
Tube/Flange |
| Type: |
Electromagnetic Flow Meter |
| Accuracy: |
?à0.6-1% |
| Measuring Media: |
Liquid |
| Measuring Principle: |
Mechanics |
| Main Application: |
Corrosive Liquid/Gas |
| Size: |
Dn10-Dn3000 |
Product Description

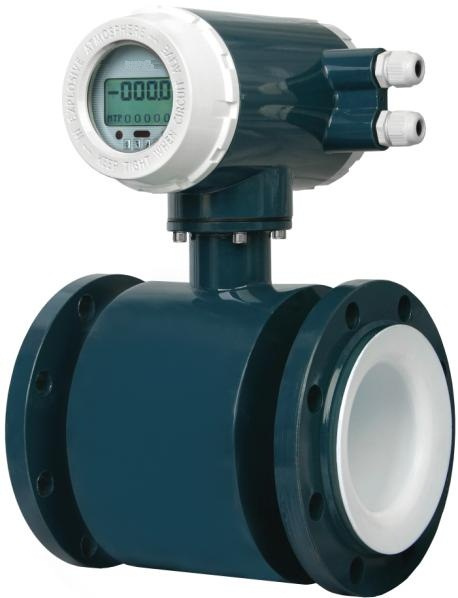

We can provide insertion type magnetic flow meter, sanitary, tri-clamp magnetic flow meter, battery-powered magnetic flow meter, high accuracy flow meter.
Electromagnetic flowmeter is a kind of inductional instrument designed by Faraday's law of electromagnetic induction to measure flow of conductive media in the tube. They are widely used in industrial sectors such as chemical industry, environmental protection, metallurgy, pharmaceutical, paper making, water supply and removal etc.
Besides measuring flow of general conductive liquid electromagnetic flowmeter can measure flow of liquid-solid mixed fluid, high-viscosity fluid and salt, strong acid and strong alkali.
Technical Data:
Suitable Diameter: DN25~DN2600(below DN25 unstandard)
Electrodes Materials: 316L(stainless steel), HC, HB, Ti, Ta
Suitable Fluid: Liquid with conductive ratio more than 5 μ S/cm
Measuring Range: 0.1~10m/s (extendable to 15m/s)
Upper Limit of Span: 0.5~10m/s. 1~5m/s recommended
Accuracy: 0.3, 0.5, 1.0
Output Signals: 4~20mADC, load< = 750ohm, 0~3kHz, 5V with source and changeable width. High terminal and effective frequency output, RS485 interface
Operation Pressure: 1.0MPa, 1.6MPa, 4.0MPa, 16MPa (special)
Fluid Temperature: -20C~80C, 80C~130C, 130C~180C Depending on Lining Material
Ambient Temperature Sensor: -40C~80C. Transducer -15C~50C
Ambient Humidity: < = 85%RH (at 20C)
Cable Outlet Size M20× 1.5
Power Supply: 220VAC± 10%, 50Hz± 1Hz, 24VDC± 10%
Power Consumption: < =8W
Protection Ratings: Ntegral type: IP65. Remote type: Sensor IP68, transducer IP65
Materials of Liner PTFE, soft rubber, hard rubber, etc
|
Item |
Code |
Description |
|
Factory Mark |
SHD |
Silver Automation Instruments |
|
Meter Type |
LED |
Intelligent Electromagnetic Flowmeter |
|
Meter Size |
-XXX |
Example: 100=DN100, if it is followed by I, stands for Inserted Type, by AI, stands for adjustable inserted type |
|
Electrode Material |
0 |
316LSS |
|
1 |
Pt |
|
2 |
HB |
|
3 |
Ta |
|
4 |
Ti |
|
5 |
HC |
|
Liner Material |
3 |
Teflon (PTFE) |
|
4 |
F46 |
|
5 |
Fs |
|
6 |
Polychlorobutadiene rubber |
|
7 |
Polyurethane rubber |
|
Rated Pressure(MPa) |
4 |
DN10~80 |
|
1.6 |
DN100~150 |
|
1 |
DN200~1000 |
|
0.6 |
DN1100~2000 |
|
0.25 |
DN2200~DN3200 |
|
Working Temperature |
E |
< 60 ° C |
|
H |
< 160 ° C |
|
Grounding Ring or Grounding Electrodes |
0 |
No ring |
|
1 |
With ring |
|
3 |
With Grounding Electrodes |
|
Protection Grade |
0 |
IP65 |
|
1 |
IP68 |
|
Converter Type |
0 |
Compact |
|
1 |
Remote |
|
Output Signal Communication |
0 |
4~20mA |
|
1 |
RS-485 |
|
2 |
Hart |
|
3 |
Profibus-DP*1 |
|
4 |
Pulse Output |
|
Housing Material |
0 |
CS |
|
1 |
304 SS |
|
Material of Body Flange |
0 |
CS |
|
1 |
304 SS |
|
Companion Flange |
0 |
No |
|
1 |
With |
|
Power Supply |
0 |
220V AC |
|
1 |
24V DC |
|
Explosion Proof |
0 |
Non(0 could be omitted) |
|
Ex |
Exd IIBT3~BT6 |
