Electronic Card Lock System and Timer
Product Specifications
| Prod Model: |
NI-100F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fail-Safe Type: |
Power to Lock |
| Face Plate: |
205L*35W*40h(mm) |
| Strike Plate: |
90L*25W*2h(mm) |
| Bolt: |
16mm (Throw) * 16mm(Diameter) |
| Voltage: |
DC12V |
| Start Current: |
960mA |
| Standby Current: |
130mA |
Product Description

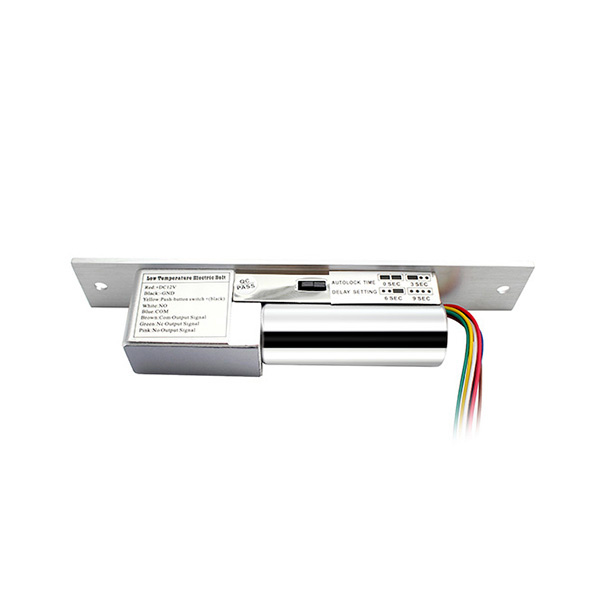

Electronic card lock system and Timer
NI-100F is deadbolt lock with door & lock status dual signal output and delay function, which is fail safe electric bolt lock that suitable for glass door, wooden door, metal door . We supply integrity equipment to collocate with fully frameless glass door, swing-in door and so on. Build-in Photoelectricity control and low temperature design, which makes access safer and durable.
| Version | Fail-unlocked |
| Standard Functions | Low Temperature,Door Status Sensors,Relock Delay Timer |
| Door Status Sensors | Dry contact NC,COM |
| Lock Status Sensors | Dry contact NC,NO,COM |
| Push Button Contact | Door Open Push Button Input Contact |
| Relock Delay Timer | Relock Delay Timer |
| Optional Functions | Buzzer |
| Diameter dead bolt | ø16mm,16mm |
| Shear strength | 2000Lbs/800kg |
| Rated Operating Voltage | DC 12V or 24V (Customization Available) |
| Start Current | 960mA |
| Standby Current | 130mA |
| Face place material | High Aluminum |
| Surface Temp | Low Temperature |
| Ambient temperature in °C | -10°C - +55°C |
| Suitable for | Wooden & Aluminum & Glass & Fireproof &Metal door |
| Face Plate Dimensions(L x W x D) | 205Lx35WX40H(mm) |
| Strike Plate Dimensions(L x W x D) | 90Lx25Wx2H(mm) |
| Weight | 0.72kg |
| CE Certificat | YES |
| Rohs Certificat | YES |
Nordson Electronic Co., Limited was founded in 2006, and now we are one of the most professional and comprehensive providers of access control solution in China. After years of arduous pioneering, we create a powerful capabilities of product development and manufacturing. Ourbusiness scope involves magnetic lock, bolt lock, strike lock, door contract, accesscontroller, automatic door operator and access control solution.
Nordson pursuited for excellence all the time. We makethe brand to be top-ranking in China with advanced crafts and rigoroustechnologies. Up to now, all our products pass the certifications of CE, RoHS, andalso pass the quality test of security products by China's Ministry of PublicSecurity. Nordson's products sell and be agent in more than 100 countries andregions, such as USA, EU, Middle East, Southeast Asia, Australia, Brazil, India, Russia etc...Besides, Nordson provides OEM and ODM services also. Nordson'sproducts are widely used in business institutions, government agencies, residentialcommunities, universitiesand so on.
In future, Nordson will pursuite for more excellent performance, and provide more new items and better services. Our customers will growtogether with us, to be strong in the process Nordson become the most powerfulenterprise of security system in China.
History
2006 Nordson wasfouned.
We were agent to sell electric locks andaccess control system products.
2008 Nordson Electronicsopened a factory.
We supplied electric locks for buildingprojects and customized production for OEM customers.
2010 NordsonElectronics Co., Limited was founded in HongKong.
We fully entered theHongKong market.
2012 InternationalTrade Department of Nordson Electronics(Shenzhen) is founded.
We were absorbedto oversea maketing and development.
2014 The trademark "Nordson"was registered in China mainland.
We wereconcentrated on product development and branding.
2015 We are opening upa new age of access control.
