Electronic Instrument for Techwin Cable and Antenna Analyzer

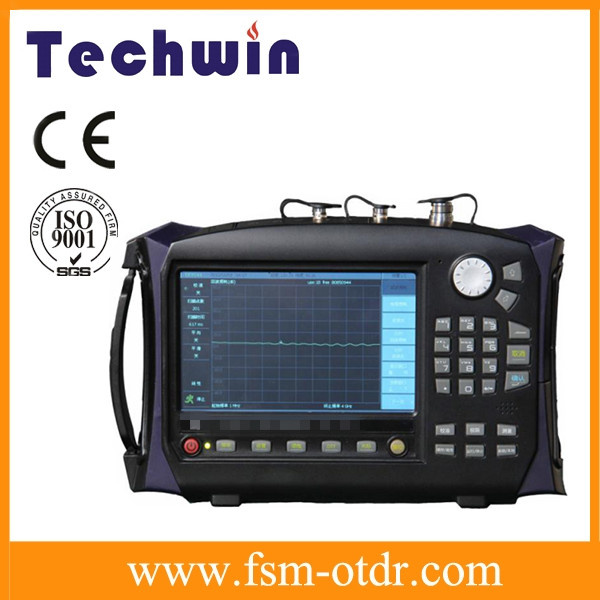

Name: Electronic Instrument for Techwin Cable and Antenna Analyzer
Brand: China-Manufacturer-Directory.com
SKU: 764280435
Availability: InStock
Rating: 4.9 (85 reviews)

Supplier:	Hangzhou Techwin Precision Instrument Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	TW3300
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency Range:	1MHz~4GHz
Sweep Time:	<1ms/Cw(10kHz If Bandwidth)
Frequency Resolution:	1kHz

Product Description

Product Overview:
Adopting new techniques like advanced radio frequency and digital hybrid integration design,
broadband and fundamental wave mixing, digital IF processing and intelligent power management, etc.,Techwin Cable and Antenna Analyzer has advantages of fast measuring speed, high measurement accuracy, small size, light weight, battery power, touch screen operation and adjustable backlighting. It can measure return loss, standing wave ratio (SWR), impedance, phase, DTF (discontinuity point fixing), etc.
It is developed for onsite test and suitable for measuring the feeder line system of various
communication base stations including trunking, GSM,PCS/DCS,CDMA,GPRS,WCDMA,
CDMA2000,TD-SCDMA,LTE and paging system. Techwin Cable and Antenna Analyzer can help the users make quick evaluation on the state of the transmission line and antenna system, improve the maintenance efficiency of the base station in operation and accelerate the installation and debugging process of the new base station during the installation, debugging and daily maintenance of the feeder line system. It can also be used to test the reflection parameters of the RF devices in scientific research, teaching and manufacturing.

Main Features:
? Automatic adjustment of screen brightness. Techwin Cable and Antenna Analyzer can adjust the backlighting of the LCD automatically according to the environment. The users can also adjust the backlighting manually.
? High measuring speed. The top measuring speed as high as 1ms/point
? Support list sweep. The users can sweep multiple frequency bands they are concerned about, every frequency band can be set with different parameters, such as sweep point, IF bandwidth, etc.
? GPS location function. Techwin Cable and Antenna Analyzer has built-in GPS receiver, the users can get their current location information through the external antenna.
? Support touch screen operation. Techwin Cable and Antenna Analyzer has a 7-inch LCD touch screen, all the common operations can be done through it.
? Test data storage and playback. Techwin Cable and Antenna Analyzer can store the test data to the internal FLAH memory, external USB memory and SD card.
? PC data transmission interface. Techwin Cable and Antenna Analyzer provides mini-USB interface which can be connected to PC through USB cable to realize the download of test data. It also provides the LAN interface to communicate with PC.
? Power measurement. Techwin has the power measurement option which will realize accurate power measurement through external USB CW power sensor.

Typical Applications:

Technical Specifications:
Ordering Information:
Base Unit:
Techwin Cable Antenna Analyzer 1MHz~4GHz
Standard Configuration
