Electronic Relay/ (JRS1) Thermal Overload Relay /Thermal Relay (JRS1)
Product Specifications
| Prod Model: |
JRS1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
220-380V |
| Rated Current: |
0. 1~0. 16, 0. 16~0. 25, 0. 25~0. 40, 0. 40~0. 63 |
| Productivity: |
20, 000PCS/Day |
Product Description

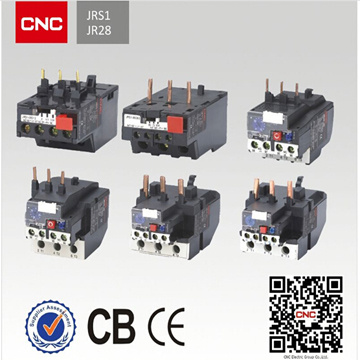

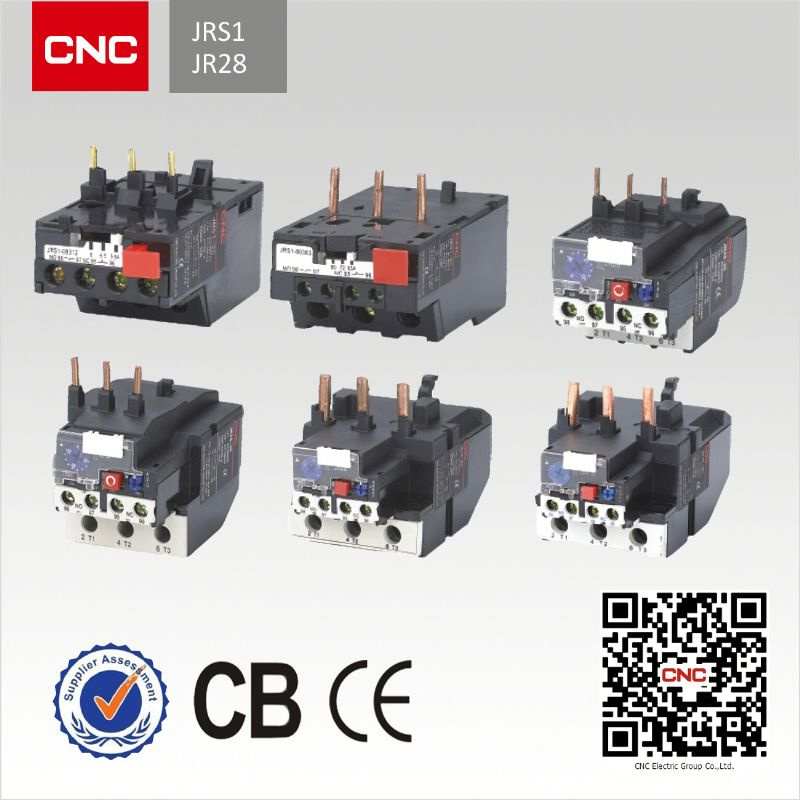

Electronic Relay/(JRS1)thermal overload relay /Thermal Relay (JRS1)
General Electronic Relay/(JRS1)thermal overload relay /Thermal Relay (JRS1) is generated by the current into components of heat, make have different expansion coefficient of bimetallic strip deformation occurs, when the deformation reaches a certain distance, just push rod action, make the control circuit disconnect, so that the contactor, losing electricity main circuit disconnect, realizes the motor overload protection.
Main role Mainly used for asynchronous motor overload protection, It works for overload electrical current overheated components, bimetallic strip heating bend to promote action mechanism to drive the contact action, to disconnect the motor control circuit is to secure a motor power, have the effect of overload protection. In view of the bimetallic strip heated bending process, the heat transfer need a long time, therefore, thermal relay cannot be used as a short circuit protection, and can only be used for overload protection of thermal relay overload protection.Installation1. When placed, if the heating element in the lower part of bimetallic strip, bimetallic strip is soon hot, short action time;
2. If the heating element is next to the bimetallic strip, bimetallic strip hot are slower, the action of thermal relay long time;
3. When the thermal relay and other electrical appliances when put together, should be in below and away from other electrical appliances more than 50 mm, in order to avoid being influenced by other electric heating;Daily maintenance1, thermal relay action should be reset after a certain time, automatic reset time should be done in 5 minutes, manual reset after 2 minutes to press the reset button.
2, when the short-circuit fault, to check whether hot components and bimetallic strip deformation, if any abnormal situation, should be timely adjusted, but not element will be removed, nor bend a bimetallic strip.
3, the use of thermal relay should check once a week, the specific content is: Thermal relay overheating, odor and discharge, all the parts with or without screw loose fall off and remove bad, surface without damage and clean or not.
4, the use of thermal relay should be maintenance once a year, the specific content is: Cleaning, repair parts, testing insulation resistance should be greater than 1 megohm, electricity. After check thermal relay, in addition to the connection screw, screw other don't move.
5, change the thermal relay, the newly installed thermal relay must be in conformity with the original specifications and requirements.Packaging & Shipping1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
2. Orders processed timely after the payment verification.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
4. The images shown are not the actual item and are for your reference only.
5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
We mainly use China post air mail / Hong Kong post air mail / Singapore post air mail/DHL/UPS/FEDEX/EMS.
China post air mail / Hong Kong post air mail /Singapore post air mail takes about 7-40 days(or more) at usual; DHL/UPS/FEDEX takes about 3-7 days at usual; EMS takes about 7-15 days at usual.
|
Type |
Rated working curren |
Thermal component |
|
Rated current (A) |
Regular or scale of rated current (A) |
|
JRS1-25 (LR1-D25322) |
25 |
0.16 |
0.10-0.16 |
|
0.25 |
0.16-0.25 |
|
0.4 |
0.25-0.40 |
|
0.63 |
0.40-0.63 |
|
1 |
0.63-1.0 |
|
1.6 |
1.0-1.6 |
|
2.5 |
1.6-2.5 |
|
4 |
2.5-4.0 |
|
6 |
4.0-6.0 |
|
8 |
5.5-8.0 |
|
10 |
7.0-10.0 |
|
13 |
9.0-13.0 |
|
18 |
12.0-18.0 |
|
25 |
17.0-25.0 |
|
JRS1-25 (LR1-D80363) |
80 |
32 |
23.0-32.0 |
|
40 |
30.00-40.00 |
|
50 |
38.00-50.00 |
|
57 |
48.00-57.00 |
|
66 |
57.00-66.00 |
|
80 |
28.0-36.0 |
