Electronic Test and Measurement Instrument Phase Angle Multimeter

Product Specifications

Prod Model:	GF211
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display:	Digital
Stucture:	Electromagnetic

Product Description

Electronic Test and Measurement Instrument Phase Angle Multimeter

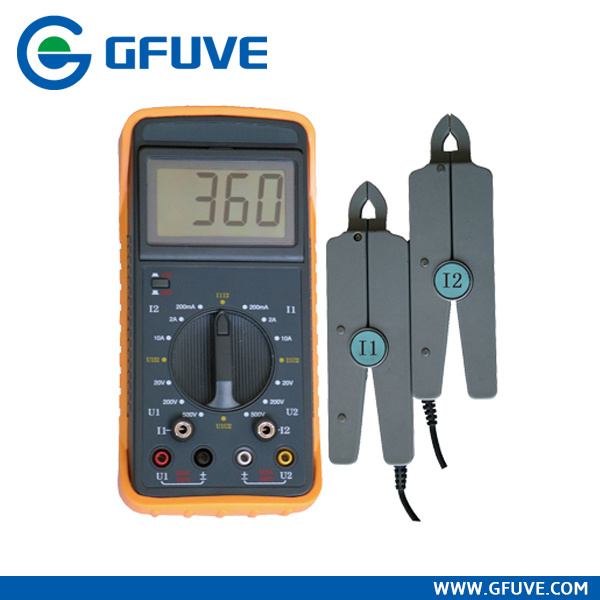

GF211 double clamp phase volt-ampere meter is a multi-functional portable instrument. It can measure not only alternating voltage, but also alternating current. Its important function is to measure phase angle between two voltages, between two current or between voltage and current. The current signal is obtained by the clamp current transformer without cutting off current wire. It can discern inductive circuit and capacitive circuit; Can directly read differential protection phase among every unit of CT; Can check connection of transformer; Measure three way voltage phase sequence; Can check whether the meter connection is right or not; Can evaluate the running speed of electric kWh meter. It has high resolution of current, so can be used as a leakage current meter. It is an ideal choice for electric power bureau, factories, mine, petroleum -chemistry enterprises, metallurgy factories and so on.

Specifications
2.1 Scale
2.1. 1 Phase: 0-360°
2.1. 2 AC Voltage: 500V
2.1. 3 AC Current: 200mA / 2A / 10A
2.2 Fundamental error (under standard operating environment)
2.2.1 Standard Condition
2.2. 2 Phase accuracy 1.0% FS
2.2.3 Voltage accuracy
2.2.4 Current accuracy
2.3 Input impedance:
2.3. 1 1MΩ When measure voltage
2.3. 2 input voltage impedance>120KΩ When measure phase
2.4 operation condition
2.5 additional error
2.5. 1 When measure phase angle, the voltage and the current are in the range of the operating conditions, the additional error is less than the fundamental error.
2.5. 2 When measure current, the error LED by wires away from center of clamps is less than the fundamental error.
2.6 Safety specification
2.6. 1 Resistance to voltage
The meter can resist 1000V (AC sinewave, 50Hz or 60 Hz) for 1 minute both between the meter circuit and the meter case; Between input joint U1 and U2 can resist 500V(AC sinewave, 50Hz or 60 Hz) for 1 minute.
2.6. 2 Insulation resistance
The resistance both between the meter circuit and the meter surface and between the terminals U1 and U2 is greater than 100MΩ .
2.7 Power supply Two 9V batteries.
2.8 Size and Weight: 85mm× 167mm× 35mmm 0.5Kg

Temperature	Moisture	Wave Form	Frequency	Wire Position	Phase measurement
					voltage	current
23±5degrees	<65%	Sine wave Distortion ≤1%	50± 2Hz, 60± 2Hz	center of clamp	100V± 25V	1A±0.2A

Scale	Accuracy	Resolution
200V	1.0FS	0.1V
500V	1.0FS	1V

Scale	Accuracy	Resolution
10A	2.0FS	10mA
2A	2.0FS	1mA
200mA	2.0FS	0.1mA

Temperature	Moisture	Phase measurement
		voltage range	Current range
0±40degrees	≤80%	3V-500V	0.01A-10A

No	Name	Number
1	Double clamp phase volt-ampere meter	1
2	Clamps  10A	2
3	Clamp wire	2
4	Voltage wire	2
5	User's manual	1
6	Certification of quality	1
7	Box	1
