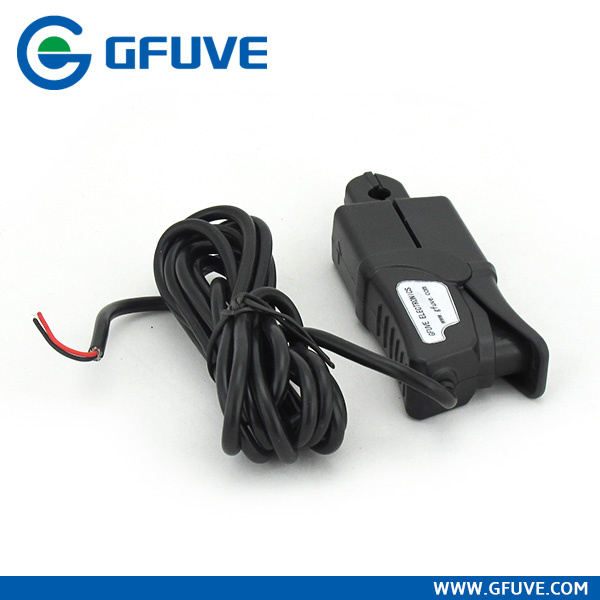

Q8 High Precision AC Current Clamp Sensor

Name: Q8 High Precision AC Current Clamp Sensor
Brand: china-manufacturer-directory.com
SKU: 688868582
Availability: InStock
Rating: 4.7 (120 reviews)

Supplier:	Beijing GFUVE Electronics Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	Q8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Q8:	Clamp Sensor
Color:	Black
Jaw Open:	8mm
Cable:	2.5m
Standards:	En60044-1
Application:	Energy Meter Calibrator

Product Description

GFUVE Q8 high precision split core current clamp sensors

Applications
· Power quality measuring
· Large industrial loads
· HVAC
· Measuring around cable bundles
· Power load monitoring
· Waveform analysis
· Measurement range of 1mA to 10A AC
· Small, compact size
· Improved ergonomic design and easy operation
· Conforms to EN 61010, 600V CAT III
· Low phase shift for power measurement
· Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
· With load capacity≤ 4
· Output model: Lead output (2.5m)

PARAMETERS

Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.2%, 0.5%
Primary current	0 - 10A AC
Secondary current	0 - 10mA AC (customized)
Max. Cont. Input current	12 A
Load capacity	≤4Ω
Over voltage category	CAT III 600V
Output signal	10mA AC at nominal input current
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032
Installation	clamp type
Output mode	lead output(2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)	42.6× 122.5 × 23
Weight (g)	225
Holding wire diameter (mm)	φ8
Max. jaw opening (mm)	8
