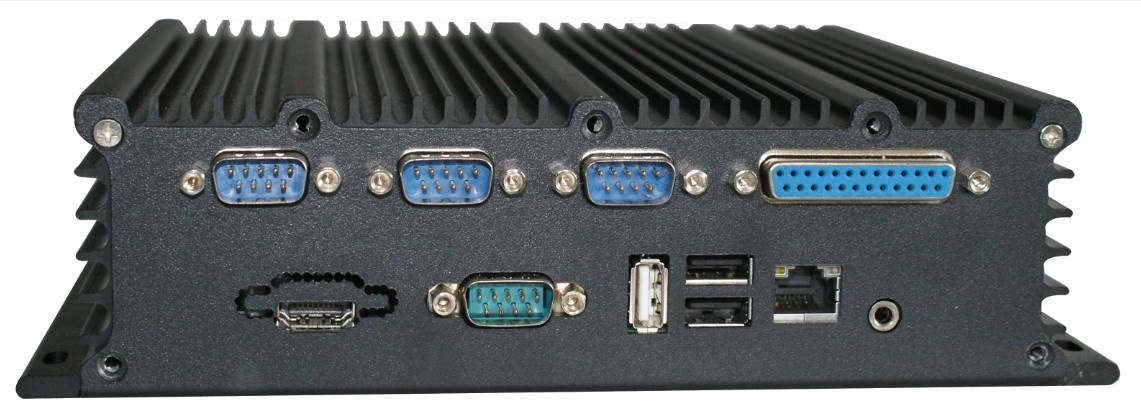

Embedded Box Industrial PC/Industrial Control Computer

Product Specifications

Prod Model:	MD6-GK0107
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Serial Port:	4× dB-9 Male Connector Port
USB Port:	7× USB 2.0 Ports
Chipset:	Intel Nm10 Express Chipset

Product Description

System
Motherboard Mini-ITX MP-N2600
Embedded CPU Intel Cedar Trail series CPU ATOM N2600
Memory Soldered onboard 2GB DDR3-1333 SDRAM
Chipset Intel NM10 Express Chipset
ATA 1× Serial ATA II ports with 3GB/s HDD/SDD transfer rate
2× Serial ATA III ports with 6GB/s HDD/SDD transfer rate
LAN Chipset 1× Realtek RTL8111DL Gigabit Ethernet controllers
Audio ALC 662 2-channel Audio Codec integrated
Mult I/O
Serial Port 4× dB-9 Male connector Port
Support 4× RS232 ports (COM4 is RS232/422/485 selectable)
USB Port 7× USB 2.0 ports
GPIO header 1× dB-9 female connector Port
Video Port 1× HDMI Port connector
1× dB-15 female connector Port for Analog RGB
1× LVDS connector, supports dual channels 24-bit LVDS output
1× LVDS connector, supports single channels 18-bit LVDS output
Selectable Port 1× dB-25 female connector Digital I/O Port LPT
PS2 Port 1× 6-pin Mini-DIN for Keyboard and Mouse
Expansion Bus 1× PCI slot w/ riser card
1× Mini PCI-E slot w/ riser card
Environmental
Operating Temp -10~60
Storage Temp -40~85
Relative Humidity 20~85%
Vibration 3 Grms/5~450Hz/random operation
Shock & Crash Operating 20G(11ms), Non-operating 320G with HDD
Operating 80G(11ms), Non-operating 32G with SSD
Qualification
Certification CCC, CB, CE, FCC, RoHS
Power Requirement
Power Input 100V-240VAC 1.5A / DC12V 5A (BNC Prot)
Power Consumption 40W(Max. )
Power Adapter 60W AC/DC Adapter DC to configure
Storage
Type 1× 2.5 "Drive bay for STAT II HDD-320G/SSD-32G
Mechanical
Construction Aluminum
Mounting Wall-mount (Default integrated)/DIN rail mounting
Weight/Gross weight 2...1kg/2.6kg
Dimensions
(W× D× H) 250× 58× 195mm
