Embedded Computer Scc-3116

Name: Embedded Computer Scc-3116
Brand: china-manufacturer-directory.com
SKU: 769414845
Availability: InStock
Rating: 4.4 (142 reviews)

Supplier:	Shenzhen JHC Technology Development Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SCC-3116
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application Field:	Industrial Control
Processor Type:	Intel
Stratification:	Operating System Layer
Range Of Application:	Dedicated
Certification:	FCC
Type:	Embedded Systems
Machine Word-Length:	16

Product Description

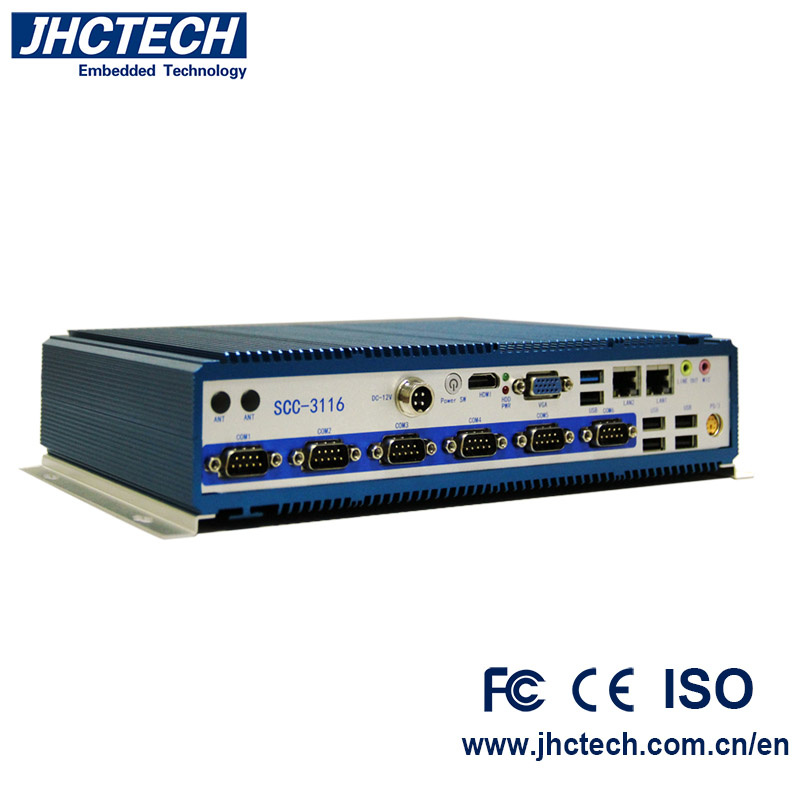

Embedded Industry PCS for Delivery Lockers with Dual Displays SCC-3116

Features:
Ultra-low power, fanless design
Intel Celeron J1900, up to 2.41GHz
1*DDR3L 1333MHz SODIMM, Max.4GB
2*Mini PCIe Card Support WIFI,3G
VGA&HDMI dual displays
2*RTL811G Gigabit Ethernet interface
1*SATA2 2.5'' HDD Bay and mSATA dual storage
6*COM/1*USB3.0/5*USB2.0/AUDIO
DC12V input

SYSTEM	CPU	Intel® Celeron J1900 Processor 2.0GHz to 2.41GHz, Quad-core four thread CPU 2M Cache,22 nm, TDP 10W
	RAM	1*DDR3L 1333MHz SODIMM, Max.4GB
	EXPANSION	2Mini PCIe Card, one is 1PCIe and USB(with SIM), Support PCIe Expansion WIFI and 3G module, the other is 1*SATA2, support Msata disk
	DISPLAY	VGA&HDMI , Support Synchronous or asynchronous display, HDMI support 4K HD decode or 16 channels decoding
	M/K	PS/2
	Ethernet	Dual Realtek 8111 10/100/1000Mbps chipset, RJ-45 interface*2
	SSD	MSATA, 16GB to 512GB
	HDD	2.5''HDD Bay, Support 1*SATA2 3GB/s 2.5''HDD
	COM	RS-232/422/4852 (jumper setting ), RS-2324
	USB	5USB 2.0, 1USB3.0
	SYSTEM	1Power switch, reset switch 1
	LED LIGHT	Power light×1,HDD light*1
	AUDIO	Line-out & MIC
	WATCH DOG TIMER	Timer system reset/interrupt
POWER	DC IN-PUT VOLTAGE IN-PUT	Built in DC-DC converter(default )
	DC IN-PUT VOLTAGE IN-PUT	DC 12V, TDP [email protected] Typical [email protected] (2.5''HDD)
	AC IN-PUT VOLTAGE IN-PUT	Power adapter(option)
	AC IN-PUT VOLTAGE IN-PUT	Voltage input:100VAC~240VAC@50~60Hz
	OS	Windows 7, Linux Fedora Ubuntu
	OPTION	WIFI / 3G
MECHANICAL	STRUCTURE	Blue aluminum-case, Wrinkle-shape for cooling
	COLOUR	Silver aluminum+Silver aluminum panels
	INSTALLATION	On-wall, desktop
	DIMENSIONS	26816057.6mm
	WEIGHT	1.95Kg
ENVIROMNTAL	OPERATION TEMPERATURE	20~65ºC-SSD Without Airflow -10~55ºC-HDD Without Airflow
	STORAGE TEMPERATURE	-20°C~ 70°C (-4°F ~ 158°F)
	STORAGE HUMIDITY	5~90%@40°C, non-condensing
	VIBRATION	5 grms / 5 ~ 500Hz / in work status(CFD)
	VIBRATION	1 grms / 5 ~ 500Hz /in work status ( built -in HDD module)
	SHOCK	50 g peak acceleration (duration 11ms)(CFD)
	SHOCK	20 g peak acceleration( duration 11ms)( built -in HDD module)
EMC	CE /FCC A class ,UL
ORDER INFORMATION
SCC-3116
Fanless embedded PC, Intel Atom J1900, VGA&HDMI, 2Gigabit Ethernets/6COM/ 6*USB/ Audio/PS2/2.5'HDD Bay
PA-60DC12
AC/DC power adapter,DC12V/5A 60W
