Shenzhen JHC Technology Development Co., Ltd. >> Small Embedded Computer PMI-3110

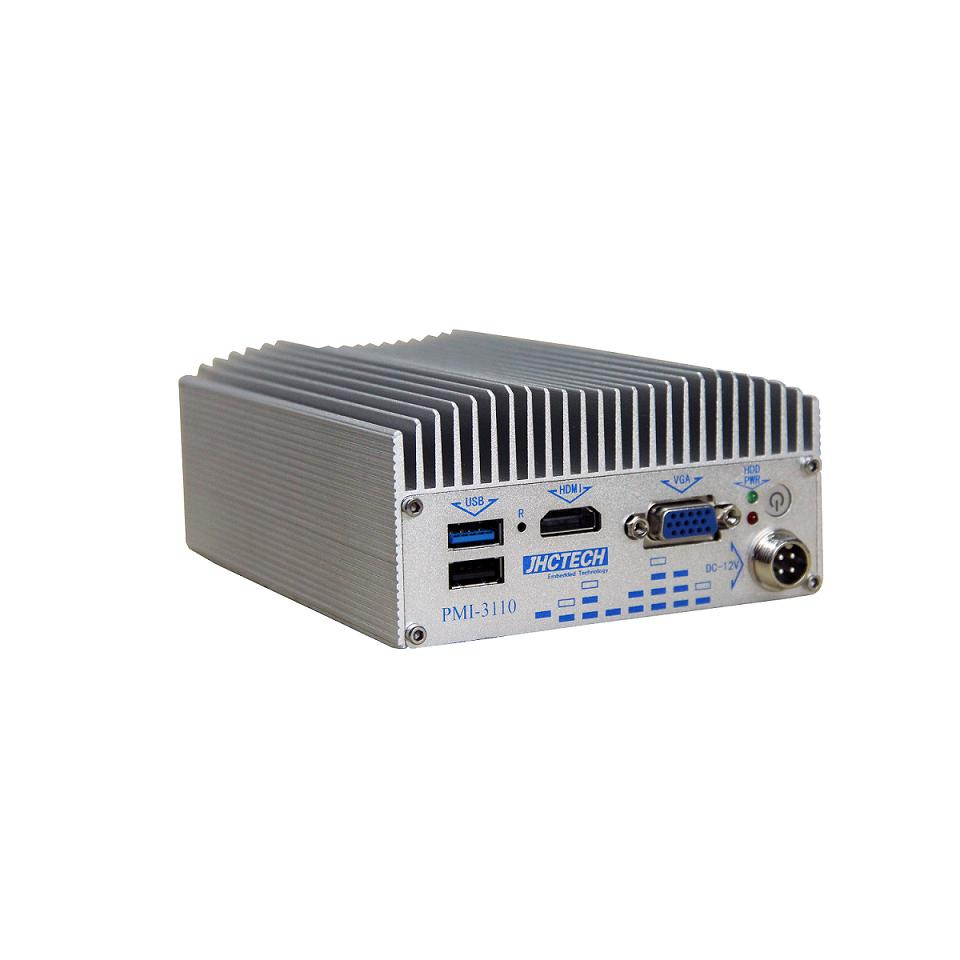

Small Embedded Computer PMI-3110

Name: Small Embedded Computer PMI-3110
Brand: china-manufacturer-directory.com
SKU: 771245265
Availability: InStock
Rating: 4.4 (96 reviews)

Supplier:	Shenzhen JHC Technology Development Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	PMI-3110
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application Field:	Industrial Control
Processor Type:	Intel
Stratification:	Operating System Layer
Range Of Application:	Dedicated
Certification:	FCC
Type:	Embedded Systems
Machine Word-Length:	32

Product Description

Tiny Embedded Box&Indusrial PCS for Video Surveillance PMI-3110

Features:
Aluminum alloy chassis, Fanless cooling design
Intel Celeron J1900 up to 2.41GHz
1*DDR3L 1333MHz SODIMM, Max. 4GB
4*100M port switch or dual Gigabit Ethernet ports
VGA&HDMI dual displays
2*USB/1*COM/ Audio
mSATA and 2.5"SATA HDD Bay
Shock & Vibration resistance
DC12V input

SYSTEM	CPU	Intel® Celeron J1900 Processor 2.0GHz to 2.41GHz, Quad-core four thread CPU 2M Cache,22 nm, TDP 10W
	RAM	1*DDR3L 1333MHz SODIMM, Max. 4GB
	EXPANSION	MINI PCIe CARDx2, one is PCIe X1+USB signal(with SIM slot), the other is SATA2 signal, support mSATA disk
	DISPLAY	VGA&HDMI dual display interfaces,support synchronous or asynchronous display, Support HDMI 4k HD decode or 16 channel 1080P decoding
	M/K	USB
	Ethernet	4* RJ45 100M port switch, link to one Intel I210-IT network chipset(S001); dual Intel I210-IT chipset, 2*RJ45 Gigabit connector(S002)
	SSD	mSATA× 1, support 8G to 256G mSATA disk
	COM	1*RS232(S002)
	USB	USB3.01 and USB 2.01
	SYSTEM	1Power switch, reset switch 1
	LED LIGHT	power light1,HDD light1
	AUDIO	Line-out & MIC
	WATCH DOG TIMER	timer system reset/interrupt
POWER	DC IN-PUT VOLTAGE IN-PUT	built in DC-DC converter(default )
	DC IN-PUT VOLTAGE IN-PUT	DC 12V
	AC IN-PUT VOLTAGE IN-PUT	power adapter(option)
	AC IN-PUT VOLTAGE IN-PUT	voltage input:100VAC~240VAC@50~60Hz
	OS	Windows 7, Windows XP, Windows XP Embedded, Linux
	OPTION	WiFi / 3G
MECHANICAL	STRUCTURE	Aluminum case, Wrinkle shape for cooling, ultra-thin
	COLOUR	Silver
	INSTALLATION	VESA,Desktop, DIN Rail mouting
	DIMENSIONS	111144.556.1mm
	WEIGHT
ENVIROMNTAL	OPERATION TEMPERATURE	20~65ºC-SSD Without Airflow -10~55ºC-HDD Without Airflow
	STORAGE TEMPERATURE	-20°C~ 70°C (-4°F ~ 158°F)
	STORAGE HUMIDITY	5~90%@40°C, non-condensing
	VIBRATION	5 grms / 5 ~ 500Hz / in work status(CFD)
	VIBRATION	1 grms / 5 ~ 500Hz /in work status ( built -in HDD module)
	SHOCK	50 g peak acceleration (duration 11ms)(CFD)
	SHOCK	20 g peak acceleration( duration 11ms)( built -in HDD module)
EMC	CE /FCC A class ,UL
ORDER INFORMATION
PMI-3110-S001
Fanless embedded PC, Intel Atom J1900, VGA&HDMI, 2Gigabit Ethernets/6COM/ 6*USB/ Audio/PS2/2.5'HDD Bay
PA-60DC12
AC/DC power adapter,DC12V/5A 60W
