Product Specifications
| Prod Model: |
EM50C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Emm50c: |
Puncher |
| Punching Line: |
Pipe Punching |
Product Description

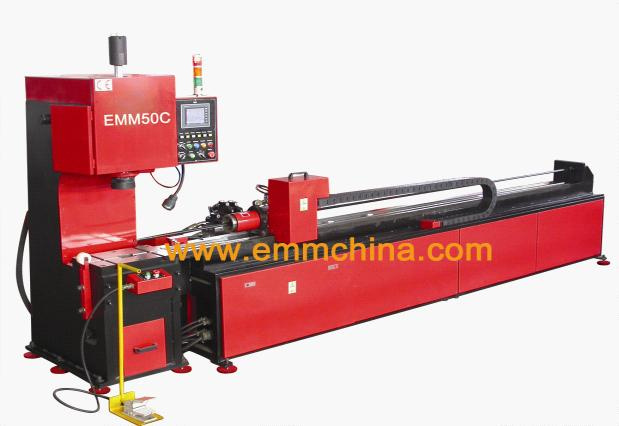

1. EMM50 hole punching line can punch circle, square, rectangular and oval on rectangular pipes and various shapes of holes.
2. Aperture and thickness: Φ 50× Τ 3~~~~~Φ 16× Τ 11
3. The diameter of the puncturing pipe: Round pipe Φ 16-----Φ 150
Quartet tube: 20× 20-------75× 75
Rectangular tubes 15 × 30 ------- 60 × 120
Iron pin 30 × 30-------- 75 × 75
Iron trough 25 × 50-------- 60 × 120
4. Punching Hole Distance: 0.1mm-------------2900mm 200holes
5. Punching speed: 1.5 second /PCS 150mm stroke
6. Punching the longest distance: 2900mm
7. Standard processing length: 3500mm (can stretch)
8. Feeding the fastest servo speed: 5000mm / min
9. Processing settings categories: Single-punch, non-equidistant punching, punching equidistant, 360 ° Rotating punching and push rod pushing.
10. TFT human-machine interface, Taiwan Tada Units control system, touch-screen settings, in both Chinese and English exchange.
11. Can be store 0-99 group processing mode
12. Size and weight: 8200 × 1500 × 2300 MM, 3.0T
Equipment product processing
Feeding Fixture Start auto Punching and forming
Discharging
Main structure features
TFT human-machine interface display, touch screen setting, the Numerical control system, and precise positioning servo motor, size of memory function in storage module.
Structure: By powerful composite combination, the frame of thick durable components.
Operating function: With inching and automatic function.
*Oil Hydraulic System: Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration. *Whenever the oil cylinder is moving downward, the machine is designed with hydraulicdifference driving loops rated at high or low RPM. It is also featured with high speed downward moving, low speed processing and hi- speed position resume. It is available to increase the formation stability of work pieces during puncturing. In addition to increasing the activation speed, it can effectively reduce HP lead to save electrical energy. *The electrical control system is designed with human machine interface 150mm(Stroke available for positioning) the mold set is designed with 400mm in depth available for forward and backward 150mm moving accessibility Our machine is designed with the Italy-made digital scale (LCD display) with high precision. *Our machine is adopted with Japan-made serve motor driving devices and the feed-in and receiving speed can be set to high speed and high precision to enhance the productivity. *It is featured with sufficient clamping force of clamping oil cylinders and the position of work pieces is stable and uneasily loose off.
Equipment product instruction
Automatic feeding: One worker start the double line at the same time, if the tubes with standard size, the worker operated without any mistake, it only need about one minute punch one pipe.
Artificial feeding: Two workers operate one line separated, if the tubes with standard size, the worker operated without any mistake, it need about five minute can punch one pipe.
