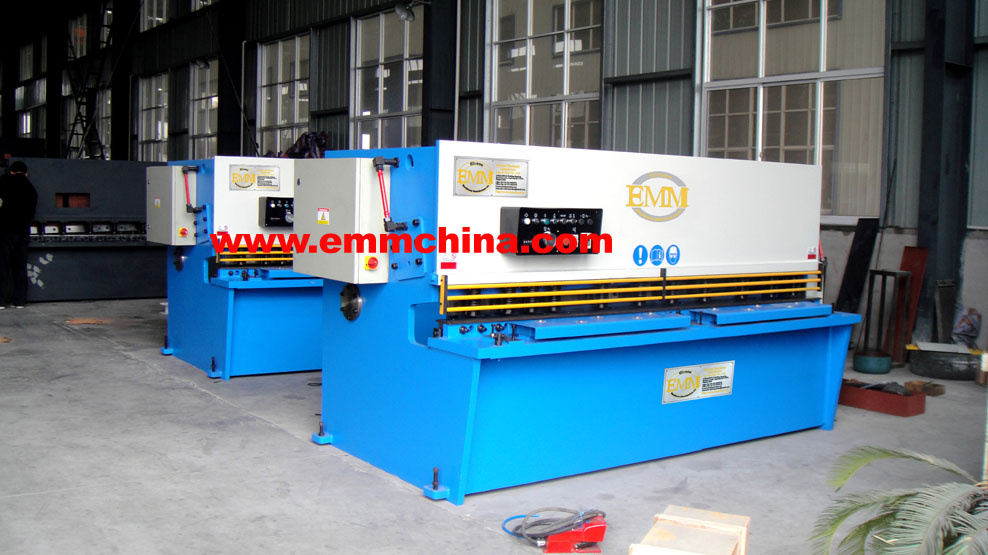

Hydraulic Guillotine Shearing Machine (QC11Y-4X3200-E10)
Product Specifications
| Prod Model: |
QC11Y-4X3200-E10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Machinery & Hardware |
| Automation: |
Manual |
| Type: |
Hydraulic Shearing Machine |
Product Description
Major Elements:
1. Hydraulic system: Omega
2. Electro parts: Siemens
3. Motors: Siemens
4. Sealings: Valqua from Japan or DZ from Taiwan
5. Oil pumps: From Shanghai
6. Blades: From Shanghai
7. Standards: According to < GB/T14349-93 >.
8. Operation system: E 10 by Estun
Enclosed accessories:
1 \ Operation Manual ( hydraulic diagram \ electro diagram \ ground works )
2 \ Certification.
3 \ Packing list.
4 \ Colors: According to your requirements
|
No. |
Code |
Name and Specification |
Qty |
Remark |
|
1 |
|
The machine |
1 set |
|
|
2 |
GB799-88 |
Fundation Screw M24× 500 |
4 groups |
|
|
3 |
GB1335-76 |
O-Shaped Sealing Ring 35× 3.5) |
10/12/15/sets |
|
|
4 |
|
o-shape sealing Ring100× 5.7 |
1set |
|
|
5 |
|
o-shape sealing Ring110× 5.7 |
1set |
|
|
6 |
|
Dust proof Ring d95 |
2sets |
|
|
7 |
|
Dust proof Ring d95 |
2sets |
|
|
8 |
|
Cushion Ram |
10/12/15/sets |
Plate Pressed pedal’ s easily worn parts. |
|
9 |
|
Front Bracket |
3 sets |
|
|
10 |
|
Foot Pedal switch |
1 set |
|
|
11 |
|
Key to Electric Box |
1 set |
|
|
12 |
|
Key to Button Power |
1 set |
|
|
13 |
|
Oil gun |
1 set |
|
|
No. |
Items |
Value |
Units |
Remarks |
|
1 |
Max thickness |
Mild |
4 |
mm |
|
|
Stainless |
2 |
|
2 |
Max width |
3200 |
mm |
|
|
3 |
Plate rigidity |
δ b≤ 450 |
N/mm 2 |
|
|
4 |
Shearing angle |
0.5-1.5° |
|
|
|
5 |
Stroke times |
12-18 |
min -1 |
|
|
6 |
Uprights distance |
3430 |
mm |
|
|
7 |
Blade length |
3300 |
mm |
|
|
8 |
Worktable height |
800 |
mm |
|
|
9 |
Major motor |
Y132M- 4 |
7.5KW |
|
|
10 |
Back gauge motor |
Y7114 |
0.55KW |
|
|
11 |
Dimension |
3900 |
mm |
|
|
1550 |
|
2040 |
