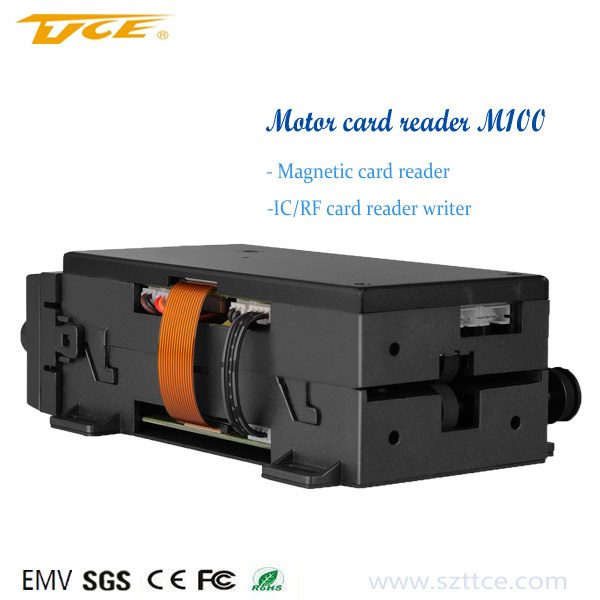

Product Specifications
| Prod Model: |
TTCE-M100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
12 V±5% |
| Work Current: |
Max 1.5A |
| Communication Method: |
RS232( Ex-Works 9600baud) |
| Magnetic Life Span: |
Not Less Than 1, 000, 000 Times |
| Dimension: |
40.2mm(Length)*83.5mm(Width)*40.5mm(Height) |
| Weight: |
350g |
| Certification: |
ISO |
| Type: |
Motor Card Reader |
Product Description
Characteristic
. Read and write card function:
Read and write IC card (memory card/logic encryption card/ smart card)/RF card. Magnetic card read only
. Eject card when power off
When main power is off it can be ejected card out by spare power.
. Antistatic brush: Antistatic brush is installed at the card in/out position, which can clean the dust and static from card.
. Compact configuration
. Double latch design
Application
. ATM
. Nformation kiosk
. Electronic purse
. Self-service terminal
. Multimedia telephone
. Automatic vending machine
. Electric purse
. Recharging machine
| Subject | Specification |
| Magnetic card | Accordance with ISO7810 7811 standard card |
| IC card | EMV\7816 |
| RF card | S50\S70\ID card |
| SIM card | 8 port to insert card |
| Card entry method | Magnetic signal, Optoelectronic signal and rear card insert |
| Motor door | Allow enabled card to insert |
| Mechanical door | Prevent dust and foreign body |
| Alert Lamp | Card entry alert, power on alert, IC card power on alert |
| Card stop position | Multiple card stop position |
| Input voltage detection | have protection alert when voltage is above 13v or below 11V |
| Input voltage protection in negative direction | Not above 40V |
Shenzhen TianTeng Industry Co., Ltd is a high technology corporation assessed by Shenzhen technology and information office. Our company is focusing on researching, producing and marketing products. Our products are widely used in the fields of bank, city one-payment card system, mobile system, transportation system, underground and parking lot.
Our main products are: Card Issuing/reclaiming reader, Automatic-reclaim card machine, Electric Card Reader, Automatic counting machine, Card issuing/ reclaiming reader & writer.
Tianteng industrial Co., Ltd has our own brand TTCE, and has an experienced technology group of high education in many subjects, Through our continuous efforts, we have developed a lot of patent technology according to market demand, and achieved certificates of ISO9001\ISO14001\PBOC2.0\EMV etc.
Our company has fetch in the idea of environmental protection since 2003, and had become one of the earliest company in this field in the world. Up to now, we have a perfect administrators and operating system of environmental protection. Our company has professional testing equipment and environment.
