Enerpac Stc Series Ultra Thin Low Height Mini Hydraulic Cylinder

Product Specifications

Prod Model:	KET-STC Series
Oil Capacity(T):	5-200
Stroke(mm):	7-30
Collasped Height(mm):	20-55.5
Outside Diameter(mm):	60-220
Plunger Diameter(mm):	21-160
Working Pressure(MPa):	10-150
Certifiacation:	CE&ISO9001:2008
Color:	Can Customize
OEM:	Yes
Delivery Time:	7-20days After Receive Payment
Material:	Steel
Structure:	General Cylinder
Power:	Hydraulic
Standard:	Can Custmoize
Pressure Direction:	Single-acting Cylinder
Usage:	Suitable for Lifting in a Narrow Space Inside

Product Description

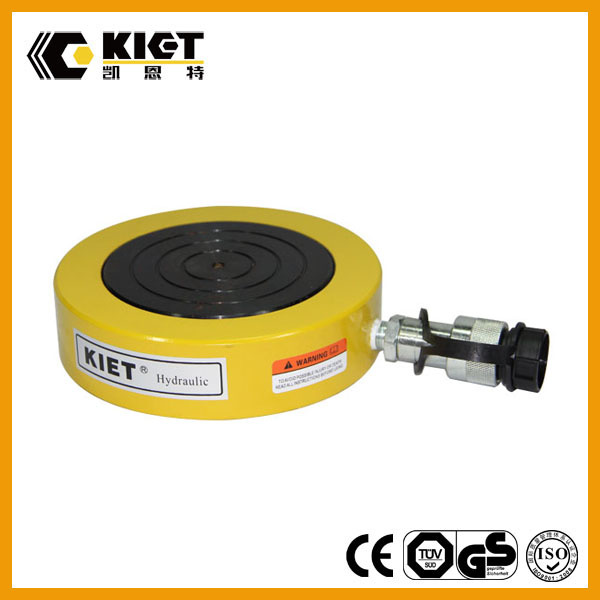

   Enerpac STC Series Ultra thin Low Height Mini Hydraulic Jack


Jiangsu Canete Machinery Manufacturing Co.,Ltd

Product Description:

? with the lowest collapsed height,apply to adjust in small gap .
? Light weight, small volume, super high pressure, high performance
?single acting,load return
? hard chrome plated high quality steel plunger
? CR 400 coupler and dustcap included on all models

Parameters:

Model Number	Capacity	Stroke	Height	Cylinder	Piston Rod	Working Pressure
		(mm)	(mm)	Diameter	Diameter
				(mm)	(mm)
KT-STC-5T-10	5T	10	30	60	21	150MPa
KT-STC-10T-10	10T	10	30	70	30
FT-STC-25T-10	25T	10	30	90	47
KT-STC-50T-10	50T	10	30	115	68
KT-STC-65T-10	65T	10	30	120	75
KT-STC-100T-10	100T	10	30	144	95
KT-STC-50T-10	50T	10	30	144	95	70MPa
KT-STC-100T-10	100T	10	32	205	135
KT-STC-100T-20	100T	20	55	205	135
KT-STC-100T-12	100T	12	45	185	130
KT-STC-120T-10	120T	10	30	160	100	150MPa
KT-STC-10T-20	120T	20	55.5	220	150	70MPa
KT-STC-150T-10	150T	10	31	176	115	150MPa
KT-STC-150T-30	150T	30	80	215	165	70MPa
KT-STC-200T-10	200T	10	32	205	135	150MPa
KT-STC-100T-10	100T	10	32	198	135	70MPa
KT-STC-20T-7	20T	7	20	220	160	10MPa

Packaging & Shipping:
We provide wooden packing for each hydraulic cylinder, which can perfectly protect , the shipping can be by express parcel, by air or by sea shipping.

Our Service:
KIET provide one year guarantee for all the hydraulic cylinders. We promise if there is any Problems of the hydraulic cylinder during the quality warranty not by outside force, we will replace a new cylinder for free. Any quality defects reported by customers will be responded in 24 hours.

Company Information:
Jiangsu Canete Machinery Manufacturing Co.,Ltd .  is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.

Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

Jiangsu Canete Machinery Manufacturing Co.,Ltd .  is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.

Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

Certificates:
CE, ISO9001:2008


FAQ:
Q1: How can contact sales?
A1: Please call: +86-18121376369 for pre-sales or click the contact find our website and email address.
Q2: How can I buy Kiet products in my country?
A2: Please send us an inquiry or email, we will reply to your if there is distributor in your country.
Q3: How long does it take to get the product If I place an order?
A3: If products stock available, after confirmation of your payment or advance payment, we will pack and deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea shipment, it will take 15-45 days depending on different locations.
Q4: How to make payment?
A4: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma
invoice with our banking details.
Q5: Manufacturing time?
A5: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products (refer to our model), it can be produced in 10-0 days. If it is customized, not our standard products, it will take 20-45 days to produce.


Contact
Ms.Helen Tong(sales manager)
Mob:+86-18121376369


                                                            Welcome to visit our factory!
