loader 5ton

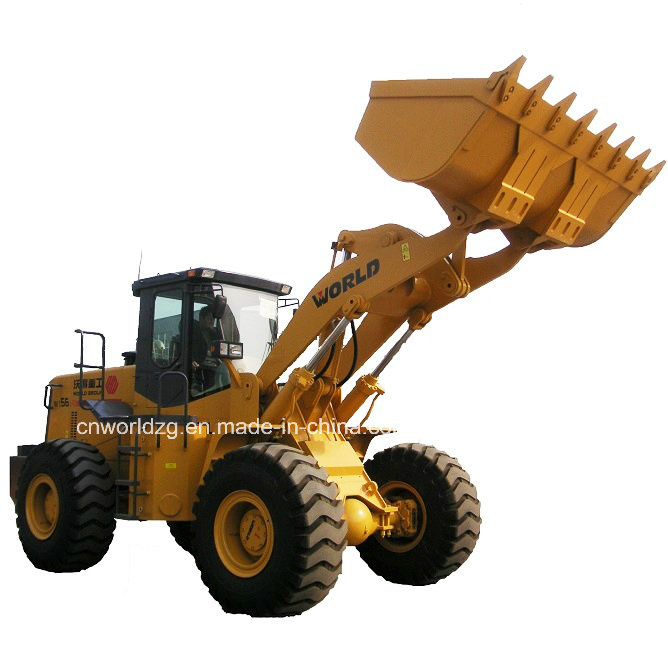

5 ton wheel loader W156, 5000kg rated load, 3 or 3.6 or 4 cbm bucket capacity, Weichai Steyr or Shangchai CAT or Dongfeng Cummins engine, Hangzhou Advance brand planet type transmission, power shift, 2 forward and 1 reverse shifts. Caliper disc brake, air over oil active 4 wheel brake, full-hydraulic coaxial flowrate amplification steering system, middle articulated frame. Long wheel base and big breakout force for heavy duty. Self-made transaxle, cabin, frame, arm and bucket. With air conditioner. Joystick, log grapple, forks, quick fitting, rock bucket and 4 in 1 bucket are optional.
Parameters:
| Items | Model: W156 |
| Bucket Capacity (m 3 ) | 3.0 or 3.6 or 4.0 |
| Rated Load (kg) | 5000 |
| Max. Breakout Force (kN) | 150±5 |
| Max. Traction (kN) | 165±5 |
| Forward Speed 1 st (km/h) | 0-11.5 |
| Forward Speed 2 nd (km/h) | 0-37.5 |
| Reverse Speed (km/h) | 0-17 |
| Max. Dumping Height (mm) | 2970±50 |
| Max. Dumping Reach (mm) | 1200±50 |
| Min. Turning Radius (mm) | 6700±50 |
| Min. Clearance Over Ground (mm) | 380±20 |
| Wheel Base (mm) | 3427±30 |
| Tread Width (mm) | 2300±10 |
| Total Hydraulic Cycle Time (s) | 11.1 |
| Full Bucket Lifting Time (s) | 5.7 |
| Overall Dimensions (mm) | L:8075xW:2960xH:3500 |
| Operating Weight (kg) | 16200±200 |
| Diesel Engine |
| Brand | Weichai Steyr or Cat6121 or Cummins |
| Type | Direct injection, turbocharged, water cooling, 4 strokes, 6 cylinders |
| Rated Output (kw) | 162/162/160 |
| Rated Speed (rpm) | 2200 |
| Max. Torque (N.m) | 855/860/908 |
| Transmission |
| Type | Planet type |
| Rated Input Speed (rpm) | 2200 |
| Transaxle & Tire |
| Rear Axle Oscillation | Center oscillation |
| Oscillating Angle Of Rear Axle (°) | 13 |
| Pressure Of Tire (MPa) | 0.28-0.32 |
| Working Hydraulic System |
| Working Pump Type | Gear pump |
| Working Pressure (MPa) | 17 |
| Lifting Cylinder Bore x Stroke (mm) | 165x757 |
| Tilting Cylinder Bore x Stroke (mm) | 200x540 |
| Steering System |
| Steering Pump Type | CBGJ2080 |
| Working Pressure (MPa) | 12 |
| Steering Cylinder Bore x Stroke (mm) | 100x342 |
| Max. Steering Angle (°) | 35 |
World Group was established in 1988. The main products include wheel loaders, hydraulic excavators, power presses, wheel tractors, combine harvesters, lawn mowers and crankshafts for diesel engines.
We can supply 3 ton and 5 ton wheel loaders, 1.8 ton, 6 ton, 8.5 ton, 15 ton, 24 ton, 33 ton, 36 ton and 42 ton excavators, from 25 ton to 500 ton C-frame and H frame power presses, 40-120HP tractors, 18" to 60" lawn mowers, wheel and crawler combine harvesters for wheat and rice, etc.
Great manufacturing ability and matured technology are the major advantages of World Group. High reliability and durability are the ever lasting endeavor of World Group.
Shanghai Yingxin World Machinery Co., Ltd is a subsidiary company of World Group, which is appointed to be fully in charge of the overseas business of World brand products.
Now we are looking for dealers and distributors to promote our products in worldwide markets. If you are interested, please visit for more information about us.
