Product Specifications
Prod Model: |
VCT-1513W-4H |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Wood Router |
Controlling Mode: |
CNC |
Feed Mode: |
Mechanical |
Screw: |
Multi-Screw |
Certification: |
CE |
Plastic Processed: |
ABS |
Cutting Machine Type: |
CNC Cutting Machine |
Precision: |
High Precision |
Spindle Number: |
Four-Spindle |
Spindle Layout: |
Spindle Underneath |
Product Description

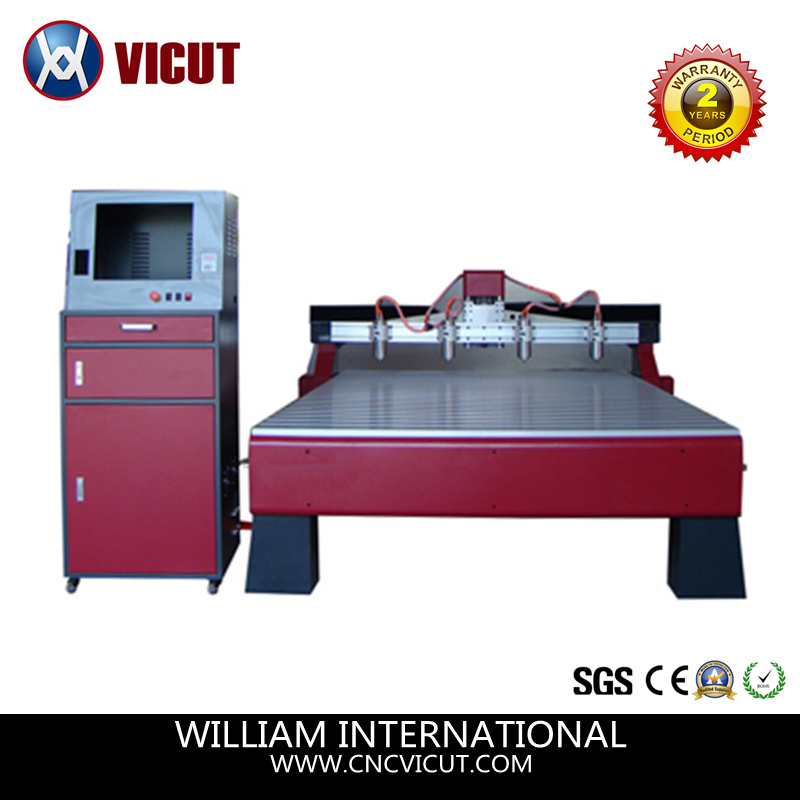

Hign Accuracy Table Move CNC Router (VCT-1513W-4H)
VICUT middle size format systems are mainly for 3D engraving, wood Relief and Cabinetry, Acrylic stand, signs, guitar and musical instruments, braille signs, name tags, asset tags, electric tags, awards, jewelry, gifts, parts marking, PCB making, soft metal craft, and much more.
Product Details Show:
1. Base Frame: The base frame is made of heavy-duty tubular steel that is welded, precisely machined by gantry milling machine and stress relieved by vibration device so that the foundation remains true and steady over the operational life of the machine.
2. NC Studio Controller: PC based NC Studio Controller with more friendly human machine interface/HMI, fully executed with computer. It well realizes high-speed and high-precision motion control. Better anti-interference performance due to control signal adopting differential signal input/output, featured as power failure protection function, linear interpolation, circular interpolation, intelligent look-ahead, reverse cutting, backlash compensation, breakpoint memory and block skip, etc.
3. Multiple Spindles: Four water cooling spindles fixed by professional holders which can adjust the spindle height easily.
4. TBI Ball Screw: Quality TBI Anti-Backlash center driven ball screws on all axis with 25mm diameter and 0.01mm repositioning accuracy.
5. PMI Linear Square Guide: 25mm linear square guide from PMI, it is an ultra-heavy type that achieves a deep grooved raceway with its diameter more approximate to the ball diameter and has high rigidity, vibration and shock resistance, and damping characteristics, which are required for machine tools.
6. Servo Motor Drive: AC Panasonic Servo motor for more smooth motion and triple working speed, and they require no regular maintenance.
7. Central Lubricator: Easier to lubricate the Guide units regularly, just pull it gently and oil will go when it is needed.
Options:
1. Optional spindle Motor: We have both water cooling and air cooling spindle options of different powers made in China or Italy.
2. Tool Sensor: For Automatic tool length calibration and registration, it allows for easy and accurate "Z" zero position for single and multiple tool changes through the program, saves time & error-free.
Dust skirts: Switchable structure with dense skirts for your convenience to load tools, easy to remove the dust completely.
Working Size | 1500 ×1300 ×150mm (5*4*5ft) |
Transmission | XYZ TBI Ball Screw & PMI Linear Square rails |
Max Engraving Speed | 12000mm/min |
Mini Feeding Speed | 1mm/s |
XYZ Resolution | 0.0125mm |
Spindle Motor | 4pcs×2.2kw/ 6000~24000rpm |
File Format | G code or HPGL |
Net Weight | 800KG |
Packing Size | 2.2x1.9x1.7m |
