Product Specifications
| Prod Model: |
DM800HD SE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Mane: |
Enigma2 Full HD Dm800se A8p WiFi Support Original |
| Color: |
Black |
| Size: |
320mm X 200mm X 90mm |
| Weight: |
2.0kg |
| Tuner: |
Dcm 4505 |
| Simcard: |
SIM210&A8p |
| Warranty: |
1 Year |
| WiFi: |
Support |
| Delivery Time: |
Within 1 Working Days After Your Payment |
| Motherboard: |
D11 |
Product Description

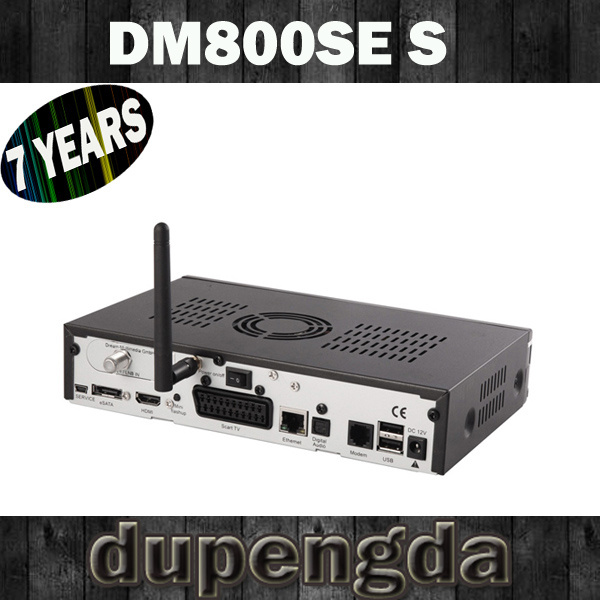

Enigma2 Full Hd DM800SE a8p WIFI support Original software
| Quick Details |
| Place of Origin | Guangdong, China (Mainland) | FTA(Free To Air): | Yes |
| Brand Name: | Dreambox | Model Number: | DM800SE-S |
| Type: | Digital | High Definition: | yes |
| Color: | Black&white | Packing: | Poly bag and giftbox |
| Warranty: | 1 year | Application: | Indoor used |
| Advantage: | Competitive price/OEM/fast delivery |
| Packaging & Delivery |
| Packaging Details: Packaged by poly bag and giftbox OEM is available for simA8P |
| Delivery Detail: Within 1workday after payment |
Main features:
A 400 MHz processor the Dreambox 800 HD se supports the Linux TV API
10/100MBit compatible Ethernet Interface
HDMI connector
Plug & play Tuner
Colored OLED display
Plug & play slot for an internal 2, 5" SATA hard disk
Technical Features
400 MHz MIPS Processor
Enigma 2, Linux coloredOLED - Display Operating System
MPEG-2 / H. 264 Hardware decoding
Tuner: DVB-S, optional: DVB-C, DVB-T
Tuner Module, Plug&Play
2 X Smartcard-Reader (Dreamcrypt CA)
Mini USB for Service and software update
10/100Mbit Ethernet Interface
1 X Scart (RGB, FBAS or S-Video)
HDMI
2 X USB 2.0 (e. G keyboard)
Analog modem
S/PDIF Interface for digital bit stream out (AC-3)
64 MByte Flash, 256 MByte RAM
SATA
- for internal HDD 2, 5"
Unlimited channel lists for TV/Radio
Channel-change time < 1 second
Automatic service scan
Directly bouquet-lists
EPG (electronic program guide)
Multiple LNB-Switching control (supports DiSEqC)
OSD in many languages and skin-support
Videotext Decoder
Extern 12V power supply
DreamBox 800 HD se technical data
DBS-Tuner mit DVB-S2:
Frequency Range 950...2150 MHz
Demodulation DVB-S (QPSK); DVB-S2 (8PSK, QPSK)
Symbol rate DVB-S: 2...45 Mbaud/s, SCPC/ MCPC
DVB-S2: 10 31 Mbaud/s (8PSK), 10 30 Mbaud/s (QPSK)
Video decoder:
Video Compression MPEG-2 and MPEG-1 compatible, H. 264
Video Formats 4: 3 / 16: 9
Letterbox for 4: 3 TV-Device
Audio decoder:
Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3
Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz
Output analog:
Output Level L/R 0, 5 Vss on 600 Ohm
THD > 60 dB (1 kHz)
Crosstalk < -65 dB
Output digital:
Output Level 0, 5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
S/PDIF-Output optical, Toslink
Ausgang Video:
Ausgangspegel FBAS 1 Vss +/- 0.3 dB an 75 Ohm
Video parameter:
Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard
TV-Scart:
Output: FBAS, RGB, S-Video
Mini USB service connector:
Function: Update of Firmware
Ethernet:
10/100 MBit compatible interface
Function: Update of Firmware
Analoge modem:
Analoge modem for Internet connection
SATA Interface:
For internal 2, 5" HDD
USB
2 X USB 2.0
LNB power and polarisation per tuner:
LNB Current 500mA max.; Short-circuit-protected
LNB Voltage vertical < 14V no load, > 11, 5V at 400mA
LNB Voltage horizontal < 20V no load, > 17, 3V at 400mA
Count of active satellite position:
DiSEqC 1.0/1.1/1.2 and USALS (Rotor Control)
Power consumption:
< 15W at 12V
External PSU
Input:
110-240V AC / 50-60Hz / 0, 6A
Output:
12V = / 3, 0A
