| Detailed Product Description |
|
| Main features are a 400 MHz processor, the Dvb-s2 800 HD se supports the Linux TV API |
|
| Have a look to HighDefinition TV on your Dvb-s2 |
|
| 10/100MBit compatible Ethernet Interface |
| HI connector |
| eSATA |

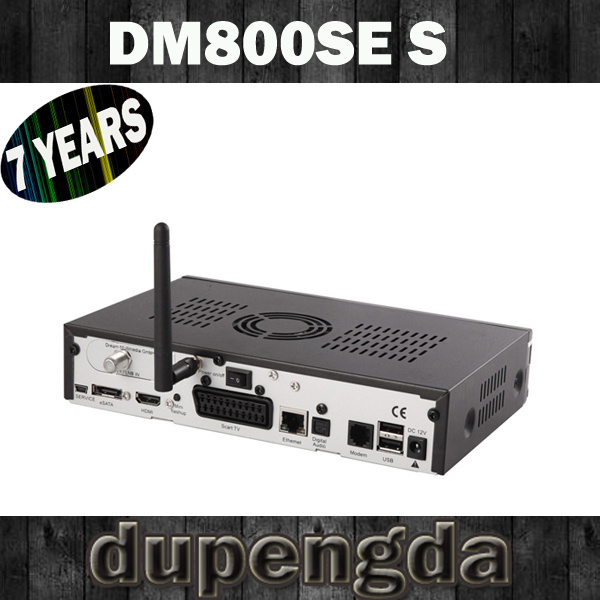

| Powerful receiver for digital TV and Radio programs. |
|
| Main features are a 400 MHz processor |
| the 800hd se 800 SE+ (plus) supports the Linux TV API |
|
| have a look to HighDefinition TV on your 800hd se |
|
| 10/100MBit compatible Ethernet Interface |
| DVI connector |
|
| plug & play Tuner |
| brilliant OLED display |
|
| SATA for use either as internal HDD 2, 5" or eSATA |
|
| - 400 MHz MIPS Processor |
| - Linux Operating System |
| - OLED - Display |
| - MPEG-2 / H. 264 Hardware decoding |
| - Tuner: DVB-S, optional: DVB-C, DVB-T |
| - Tuner Module, Plug& Play |
| - 1 x Smartcard-Reader |
| - V. 24/RS232 Interface |
| - 10/100Mbit Ethernet Interface |
| - 1 x Scart (RGB, FBAS or S-Video) |
| - HDMI |
| - 2 x USB 2.0 |
| - analog modem |
| - S/PDIF Interface for digital bit stream out (AC-3) |
| - 64 MByte Flash, 256 MByte RAM |
| - SATA |
| - for use either as internal SATA HDD 2, 5? |
| - or to use for extern eSATA |
|
| - unlimited channel lists for TV/Radio |
| - channel-change time < 1 second |
| - automatic service scan |
| - directly bouquet-lists |
| - EPG (electronic program guide) |
| - multiple LNB-Switching control (supports DiSEqC) |
| - OSD in many languages and skin-support |
| - Videotext Decoder |
| - extern 12V power supply |
|
| 800hd se 800 SE technical data |
|
| DBS-Tuner mit DVB-S2: |
|
| Frequency Range 950...2150 MHz |
| Demodulation DVB-S (QPSK); DVB-S2 (8PSK, QPSK) |
| Symbol rate DVB-S: 2...45 Mbaud/s, SCPC/ MCPC |
| DVB-S2: 10? 31 Mbaud/s (8PSK), 10? 30 Mbaud/s (QPSK) |
|
| Video decoder: |
| Video Compression MPEG-2 and MPEG-1 compatible, H. 246 |
| Video Formats 4: 3 / 16: 9 |
| Letterbox for 4: 3 TV-Device |
|
| Audio decoder: |
| Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3 |
| Audio Mode Dual (main/sub), Stereo |
| Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz |
|
| Output analog: |
| Output Level L/R 0, 5 Vss on 600 Ohm |
| THD > 60 dB (1 kHz) |
| Crosstalk < -65 dB |
|
| Output digital: |
| Output Level 0, 5 Vss on 75 Ohm |
| Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz |
| S/PDIF-Output optical, Toslink |
|
| Ausgang Video: |
| Ausgangspegel FBAS 1 Vss +/- 0.3 dB an 75 Ohm |
|
| Video parameter: |
| Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm |
| Teletext filter in conformity with ETS 300 472 Standard |
|
| TV-Scart: |
| Output: FBAS, RGB, S-Video |
|
| Serielle Interface RS 232: |
| Typ RS232 bidirectional |
| Bitrate 115, 2 kBit/s max. |
| Plug Connector SUB-D-9 |
| Function: Update of Firmware |
|
| Ethernet: |
| 10/100 MBit compatible interface |
| Function: Update of Firmware |
|
| Analoge modem: |
| analoge modem for Internet connection |
|
| SATA Interface: |
| - for use either as internal HDD 2, 5? or eSATAor internal 2, 5" HDD |
|
| USB |
| 2 x USB 2.0 Host |
|
| LNB power and polarisation per tuner: |
| LNB Current 500mA max.; short-circuit-protected |
| LNB Voltage vertical < 14V no load, > 11, 5V at 400mA |
| LNB Voltage horizontal < 20V no load, > 17, 3V at 400mA |
|
| Count of active satellite position: |
| DiSEqC 1.0/1.2 SAT POSITION / SAT OPTION |
| DiSEqC - Rotor Control |
|
| Power consumption: |
| < 15W at 12V |
|
| External PSU |
| Input: |
| 110-240V AC / 50-60Hz / 0, 6A |
| Output: |
| 12V = / 3, 0A |
|
| Physical specification: |
| Ambient Temperature +15° C...+35° C |
| Humidity < 80% |
| Size (W x D x H): 195 mm x 140 mm x 40 mm |
|
| Package included: |
| 800hd se receiver x1 |
| remote control x1 |
| power supply x1 |
| hi cable x1 |
| scart to av connector x1 |
