Product Specifications
| Prod Model: |

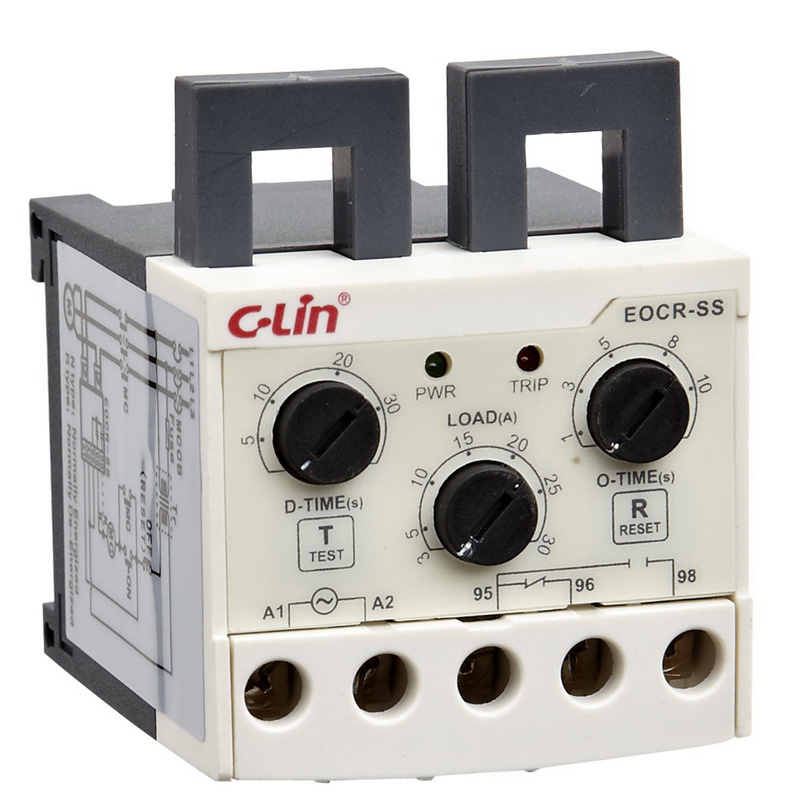

EOCR-SS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
General Introduction
EOCR series motor protector (hereinafter referred to as the protector) is applicable to the
power supply circuit with AC 50HZ, and the protector works at the rated of below 380V
voltage. The protector and AC contactor or other switches form a motor control circuit.
When the main circuit of motor generates phase failure, overload and other abnormal working
states, the protector will timely break switch contacts, disconnect three-phase power supply
off to make fast and reliable protection for the motor.
Protector using potentiometer quantization setting mode regulates the protector setting current
directly according to the rated current of motor nameplate, which is more convenient and
intuitive than the setting mode which sets without quantization, with starting motor but cannot
set the motor rated current accurately.
Protector using intelligent multisession inverse time limit protection technology controlled by the
current multiplying power, which can meet the requirements of different kinds of motors from
light load to the overload start.
Outline Dimension
| Model | EOCR-SS |
| Working Power | AC220V, AC380V 50Hz |
| Current Range | 05 type: 0.5~6.5A; 30 type:3~30A |
| 06 type:5~65A |
| Start Avoiding Time | D-Time:0.2~38s |
| Phase Failure Operation Time | O-Time:2~17s |
| Overload Operation Time |
| Run Stalling Time |
| Start Avoiding Time | "D-Time"+"O-Time":4~57s |
| Reset Mode | panel reset or power off reset |
| Contact Form | 1 NC and NO switchover contact |
| Contact Capacity | 3A AC380V(resistance) |
| Outline Dimension | 54*72.5*65.5mm |
| Installation Mode | guide rail type |
