Motor Protector Jd-5 (B) 2 in 1
Product Specifications
| Prod Model: |
JD-5(B) 2 in 1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Power: |
AC220V, AC380V 50Hz |
| Current Range: |
2~100A |
| Protection Function: |
Phase Failure, Overload Protection |
| Display Mode: |
LED Indicates Working State |
| Setting Mode: |
Potentiometer Setting Current |
| Output Contact: |
No and Nc Switchover Contact |
| Contact Capacity: |
2A AC380V(Resistance) |
| Outline Dimension: |
125*71*92mm |
| Installation Mode: |
Device Type, Guide Rail |
Product Description

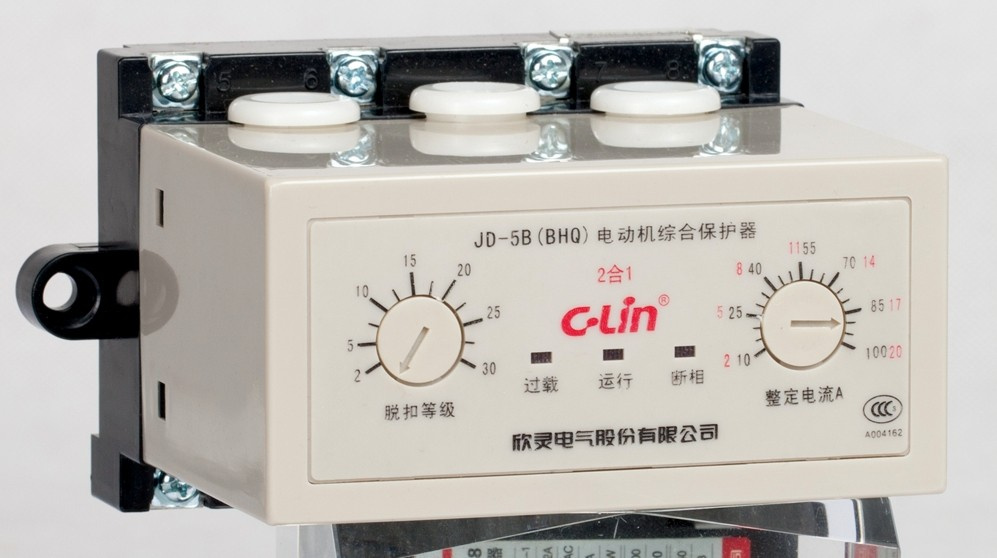

JD-5B 2 in 1 Integrated Motor Protector
JD-5B (BHQ) 2 in 1 series of integrated motor protector (hereinafter referred to as the
protector) is applicable to the power supply circuit with AC 50HZ, and the protector works
at the rated of below 380V voltage, The protector and AC contactor or other switches form
a motor control circuit. When the main circuit of motor generates phase failure, overload
and other non normal working state, the protector will timely break switch contacts,
disconnect three-phase power supply off for the motor to make fast and reliable protection
for the motor.
The JD-5 Protector adopts a new linear sampling and tuning patent technology, realizes
the potentiometer adjustment linearization, Its tunning rated current can be directly set
according to the rated current on the motor nameplate calibration value. We use intelligent
multi-section inverse time protection technology which is under the current ratio control .
Since the inverse time has excellent performance for continuously adjustable technology,
which makes the protector adapt to all kinds of motors whatever they are light load starting
type or heavy load starting type .
JD-5 series of protectors perform Q/ZXL0083 enterprise protection standards, and meet
the requirements ofGB14048.4 and GB14048.5 standards.
| Model | JD-5(B) 2 in 1 Integrated Motor Protector |
| Working Power | AC220V, AC380V 50Hz |
| Current Range | 2~100A |
| Protection Function | phase failure, overload protection |
| Display mode | LED indicates working state |
| Setting mode | potentiometer setting current |
| Output contact | NO and NC switchover contact |
| Contact Capacity | 2A AC380V(resistance) |
| Outline Dimension | 125*71*92mm |
| Installation Mode | device type, guide rail |
Xinling Electrical Co., Ltd. China was established in 1990. The company has 9 sub-branches, more than 100 cooperation units, and 100 direct distributors, 1000.00m2 factory area and 1000 stuffs.
The company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, itsstreng thens the management or enterprise and promotes product quality. The company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.
The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.
Xinling --- will create a magnificent tomorrow together with you!
