Product Specifications
| Prod Model: |
EOCR-SS(N) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

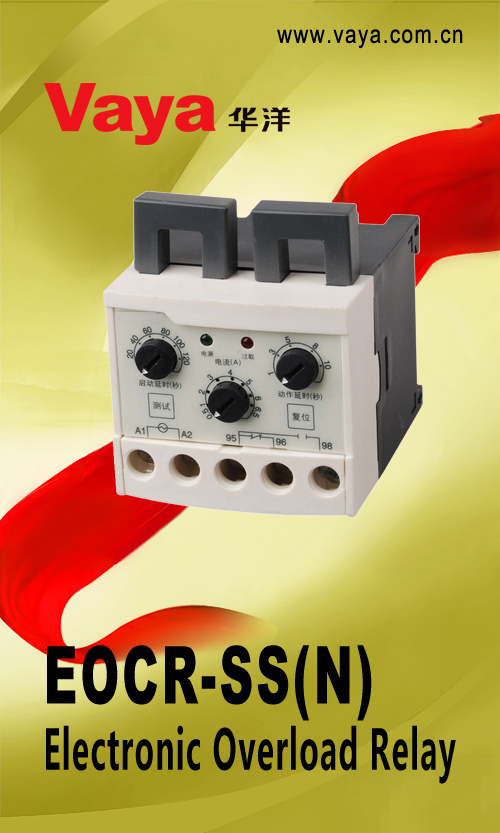

EOCR-SS(N) Electronic Overload Relay
2 Integral Current Transformers
Electronic Shear-pin Function
Independently Adjustable Starting Trip Delay
(D-Time) & Operating Time (O-TIME)
Features
Phase Loss Protection
Typical Wiring
Compact Design
Multiple Protection Functions
Wide Current Adjustment Range (10: 1)
Ammeter Function
Trip Indication LED
High Accuracy
Manual Instantaneous Reset
Electrical Remote Reset
Test Function
Ambient Insensitive
Low Energy Consumption
Fail-safe Operation (No Volt Release)
|
Protection |
|
Protective Item |
Operating (Trip) Time |
|
Over-current |
O-TIME |
|
Phase Loss |
O-TIME |
|
Locked Rotor |
O-TIME + D-TIME |
|
Specification |
|
Current setting |
Type |
Range |
|
05 |
0.5 - 6A |
|
30 |
3 - 30A |
|
60 |
5 - 60A |
|
100~(over 60A) |
Ext. CT Option |
Time
Setting |
Start D-TIME |
0.2 - 30 sec |
|
Trip O-TIME |
0.2 - 10 sec |
Control Voltage
(50/60Hz) |
220 |
90 - 260VAC |
|
440 |
320 - 480VAC |
|
Output Relay |
Mode |
1-SPDT(1C) |
|
Rating |
3A/250VAC Resistive |
|
Status |
Normally Energized |
|
Time-Current Characteristic |
Definite |
|
Operating (Trip) Indication |
2-LED |
|
Mount |
35mm Din-rail / Panel |
