Zhejiang Huayang Electric Co., Ltd. >> PGOPR-SS3 Electronic Overload Relay

PGOPR-SS3 Electronic Overload Relay

PGOPR-SS3 Electronic Overload Relay
Supplier: Zhejiang Huayang Electric Co., Ltd.
Price: Negotiable/Piece
Min Order: 20/Piece
Quantity::
Trade Terms: FOB,CFR,EXW
contact supplier

Product Specifications

Prod Model: PGOPR-SS3
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

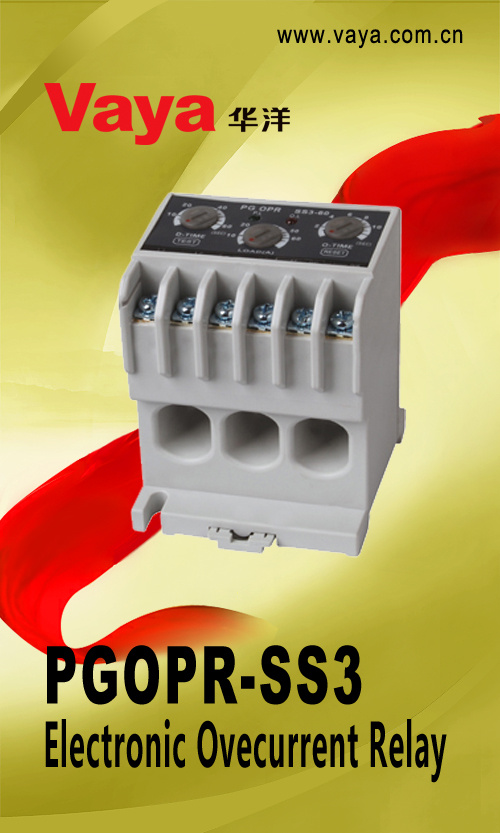

PGOPR-SS3 Electronic Overload Relay
Specification
Type Pass-through    3 holes Pass-through    3 holes Pass-through    3 holes
Over current AC relay PGORP-SS3 06/30/60/20 PGORP-SS 06/30/60/1f20 PGORP-ES2
Characteristics Phase reversal over current protection Wide pass through  Wide pass through
Magnetic Contactor All common products
All common products
Current Setting Range A 06 30 60 120 06 30 60 120 06 30 60 120
0.5-6.5 3-30 5-60 10-120 0.5-6.5 3-30 5-60 10-120 0.5-6.5 3-30 5-60 10-120
Operation Characteristics Definite Curve Inverse Curve
Motor Application KW 230-240V All commom product
380-460V 06: with CT infinite capacity
Protection Over Current YES
Locked rotor YES
Phase loss YES NO
Phase Reversal YES NO
Time setting sec Operation D-TIME 0.2-60/O-TIME 0.2-12 0.2-30
Reset Manual (Instantaneous) Reset (Auto Reset 180 sec)
Control Power  Voltage 90-260V AC (380V,440V AC/DC)
Frequency 50/60
Output Relay Contact 1C
Operation Normally open Normally closed (COM/95-NC/96-NO/98)
Capacity 5A/250 Resistive Load
Insulation Resistance Min 50 at 500V DC
Surge Endurance KV (6times/min)
Ambient Temp Operation Minus 25 to 70 degree centigrade
Storage Minus 30 to 80 degree centigrade
Humidity 45-85%RH
Operation indication Green LED(P.L):Power on
Red LED(O.L):Over current Trip
Yellow(PMR) Phase reversal Trip
Green LED(P.L) power on
]Red LED(O.L) Over Current Trip
Installation Screw and DIN-rail (35mm)

Zhejiang Huayang Electric Co., Ltd. Specializes in manufacturing the Electronic overload Relays, Thermal Overload Relays, Electronic Voltage Relays, Other Protection & Monitoring Devices, Current Transformers, Shunt and any other electrical equipments. After several years' development, Vaya has become a larger enterprise combining research, production, sales and after-sales service of electronic relay and is one of the famous manufacturers in China. All of our production procedures are strictly followed ISO 9001. We also get across safety certification such as CE, CB, UL, CCC, etc. We are sure that we can offer you the product with good quality as well as competitive price as we have advanced technology and prefect testing equipments, with Up-To-Date machines and production.

Thanks to the perfect character, good service, and high quality, our products are well sold both in domestic and oversea markets, and highly praised by the clients. With the principle of quality, technology and credit, we insist on "Talents Is Our Base, Technique is the Source of Enterprise Development". And always continually research and develop new products to meet the clients' need. Look forward to establishing a long term business relationship with you!
