Product Specifications
| Prod Model: |
YJ-2002H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Aluminum Alloy |
| Principle: |
Optics |
| Kind Of Light Source: |
Ordinary Light |
| Mobility: |
Desktop |
| Number Of Cylinder: |
≥three |
| Principle Of Optics: |
Biological Microscope |
| Stereoscopic Effects: |
No |
| Shape: |
Rectangular Prism |
| Type: |
Fluorescent |
| Usage: |
Research |
| Magnification: |
>1000X |

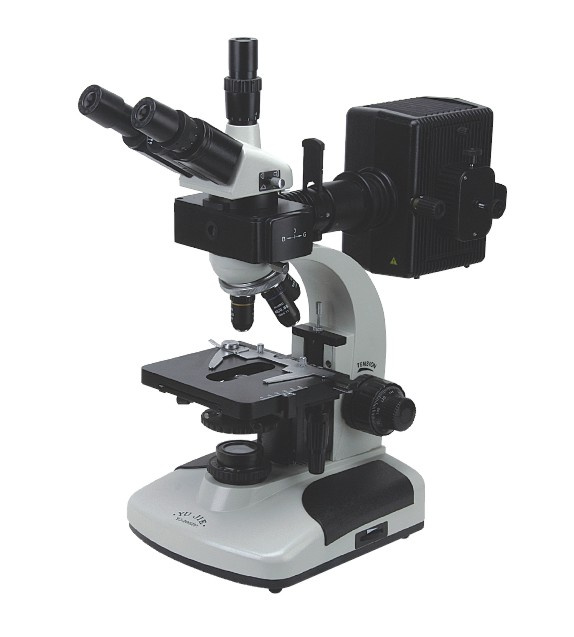

Product Description
45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)
Wide Field Plane-Scope Eyepiece: WF10X/18, WF16X/13;
Total Magnification: 40X-1600X;
Articulated Free Binocular Head, Interpupillary Distance: 55-75mm; 30° Inclined, 360° Rotatable
The Adjustable Height range of the Vertical Tube: 10mm;
Double Layers Mechanical Stage: 140X155mm, Moving Range X-Y: 70X50mm
Ø 2-Ø 30mm Iris Diaphragm And Ø 32 Filter;
ABBE Condenser: N. A. 1.25
Coaxial Coarse And Fine Focusing Adjustable Mechanism: 30mm, Precision: 0.002mm
Built-in Adjustable Brightness Halogen Lamp 6V/20W and Kohlar Illumination System
B(Blue)Exciting Lighting Filter System, Wavelength 450-490(nm);
G(Green)Exciting Lighting Filter System, Wavelength 510-570(nm);
V(Violet);
U(Ultraviolet Radiation);
Body Package: 1SET\CTN 42X31X52CM Gross Weight: 9.3Kgs
Fluorescent Attachment Package: 1SET\CTN 46X38X23CM Gross Weight: 6 Kgsthe company's core advantage:
1,30 years' experience in producing microscopes
2,Home-grown developing, designing, production, exporting
3, Advanced equipments, first-class technology and enterprising
employee

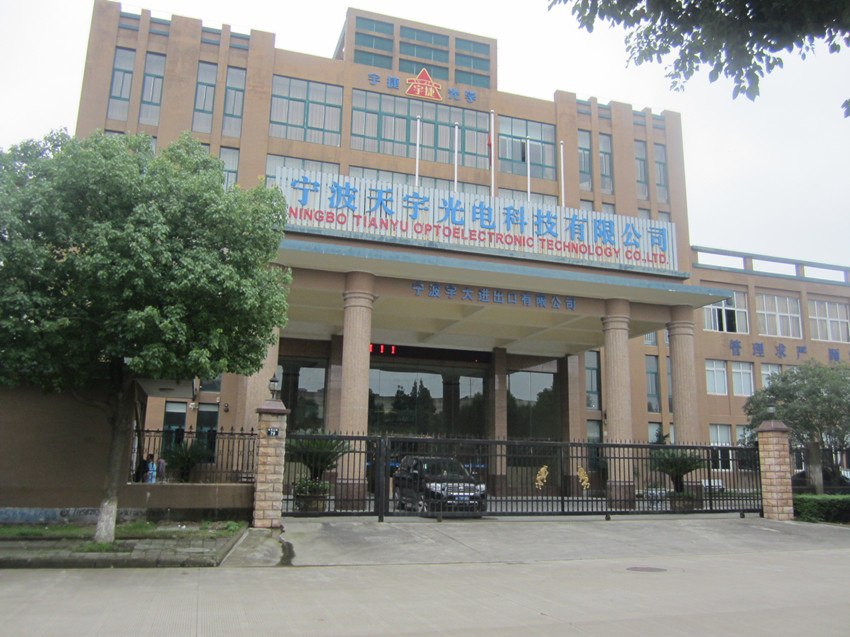

factory

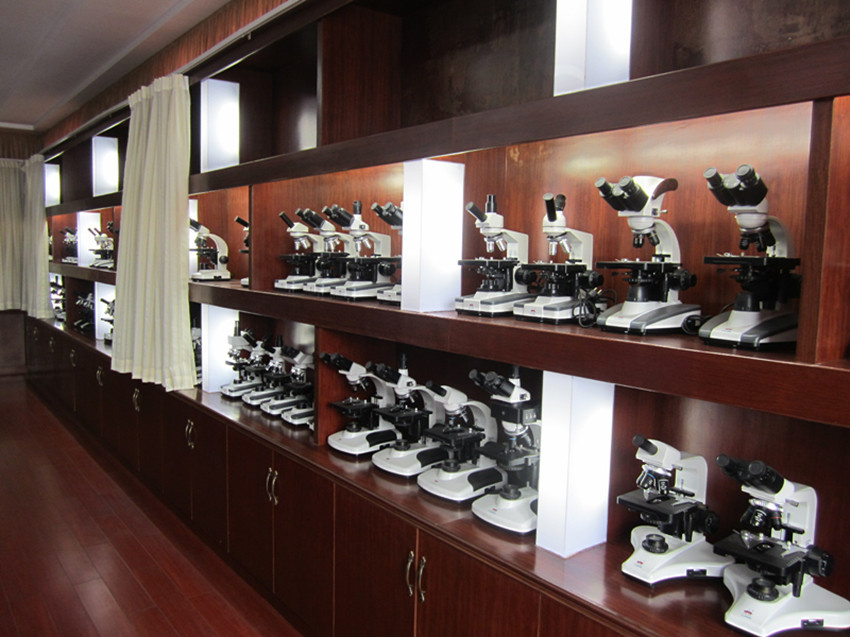

sample room

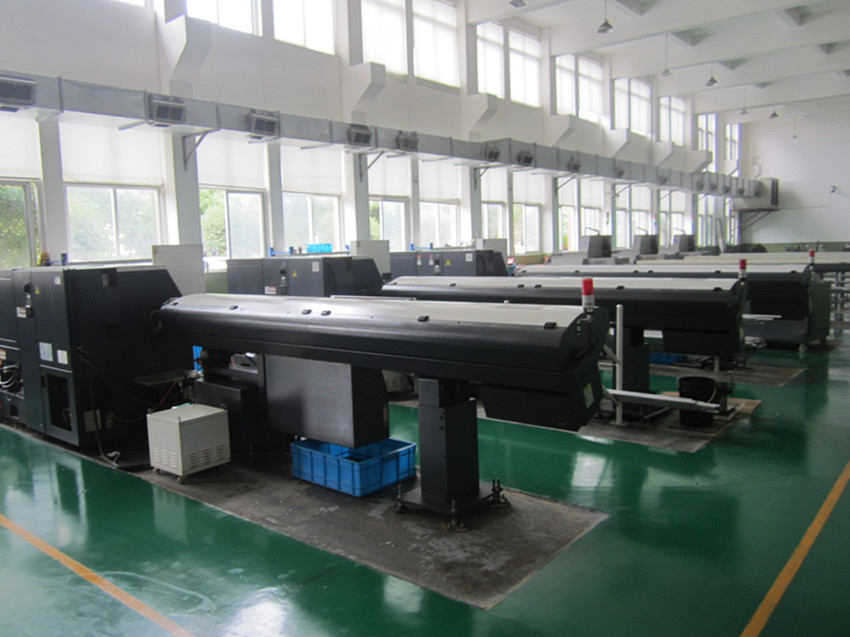

workshop
Contact UsTel:86-0574-86110738/86110758Fax:86-0574-86101768Web:www.yujie.comAdd:No. 79, Putuoshan Road, Daqi, Beilun Dist, Ningbo, Zhejiang, China
Ningbo Yujie Optical Instruments Co., Ltd. is one of the professional manufacturers and distributors of optical microscopes in China. Since 1978, we have obtained abundant experience for designing, manufacturing and managing of microscopes and have been a full set of quality system. In 1993, we obtained the Export License from the Government. Our company has passed the evaluations of ISO9001 and CE certifications. At present, our company has advanced equipment, first-class technology and enterprising employee. Over 200, 000 units of microscopes are manufactured and sold every year. 98% of them are exported to the world.
In 2003, we registered a new company of Ningbo Yuda Import & Export Co., Ltd. It is not only all in charge of exporting microscopes, but also dedicating to supplying the products of excellent quality, reasonable price and best service to factories, educational sectors, hospital sectors and laboratories around the world. "Promoting innovation" and "customers first" are our two principle. We are always devoting ourselves to developing new products and improving product quality.
On the basis of the equal with each other, mutual benefits, friendly cooperation, reliable quality, good reputing, competitive price and efficient working style, we have established extensive connections and good relationships with our esteemed customers worldwide. We are looking forward to taking a good and friendly cooperation with all the domestic and abroad enterprises for a brilliant future together.
