Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
CATV（Cable Television）Equipment |
Product Description
Complies with the IEEE 802.3ah, IEEE802.1, Homeplug BPL, Homeplug AV

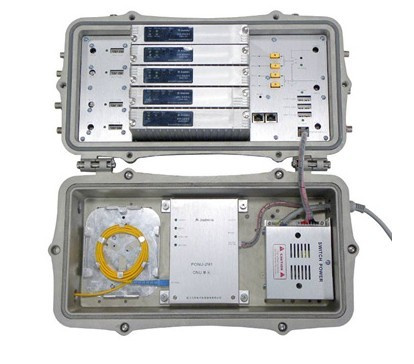

Embedded 1*ONU, 4*EOC Headend, 1* NMS module, 1*1G switch backplane and CATV(RF) input
The ONU has 4 Ethernet output, each output will be modulated to 2-30MHz signal via independent 4*EOC headend
Support 4 CATV signal input, and 4 independent output mixed CATV and modulated Ethernet Signal via Coaxial Cable
RF output >= 110dBuv
CATV bandwidth: 47 MHz~1000 MHz, Modulated Ethernet bandwidth: 5-30MHz.
Allowance RF Link Loss more than 60dBuv between output of ECSS4F-A and user terminal
Support Broadcasting Storm Restrain, ACL access control
Epon transmitting 20Km, Optical receiving sensitive -25dBm
Maximum Bandwidth of MAC 4*100Mbps, and High physical bandwidth to 240Mbps
Multi-Carrier OFDM+TDMA, Support Multi-service
SNMP Net-management system
We are professional CATV products manufactory, which stablished in 1958, we have 52 years of experience in developing and manufacturing CATV systems. Our sales network covers China, Southeast Asia, the Middle East, Europe, and the US.
Our product range includes:
1. Full DVB-C digital headend equipment/software/STB, and solution.
2. Full Gepon/EOC equipments, and solution.
3.1550/1310nm Optical euquipments.
4. Optical workstations, Nodes and receivers.
5. Optical devices and accessories.
6. RF modulators.
7. Trunk and line amplifiers.
8.5-1, 000MHz taps/splitters.
9. Satellite Dish antennas.
10. C/Ku band LNBs.
11. Coaxial and optical cables.
All operations at our 410, 000 square meter facility are ISO 9001 certified. 5600 employees, 100 R&D staff, and 500 engineers are ready to satisfy your requirements. We have an annual capacity of 2, 000, 000 terminal equipment and 80, 000 network equipment.
