Product Specifications
| Prod Model: |
AT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resistance: |
Variable Resistor |
| Type: |
Thermal Resistor |
| Installation: |
DIP Resistor |
| Function For Resistance: |
Protective Resistor |
| Package Type: |
Surface Mount |
| Application: |
Digital Thermometer |
| Material: |
Metal Oxide |
| Resistance Change Scale: |
Non-Linear |
| Shape: |
Pearl Shape |
| Brand: |
Tonze |
Product Description

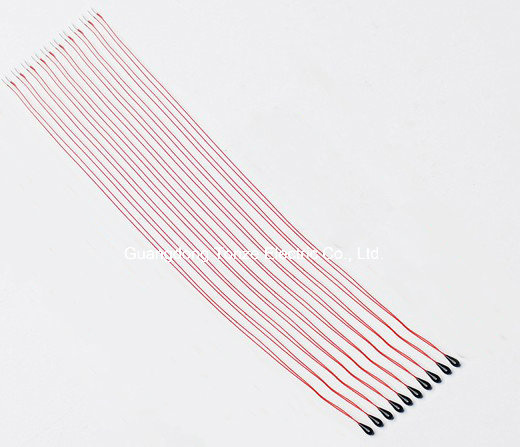

AT rapid measurement NTC Thermistor is specially designed to meet the requirement of the manufacturers of digital thermometers, with special treatment and IC matchable, can detect the temperature of the measured object within one second, complete testing of the body temperature in 5 seconds.
Features:· High quality enameled wire
· Quick thermal sensing response and high delicacy
· High resistance precision and good coherence
· High working stability and reliability
· Small size and light weight

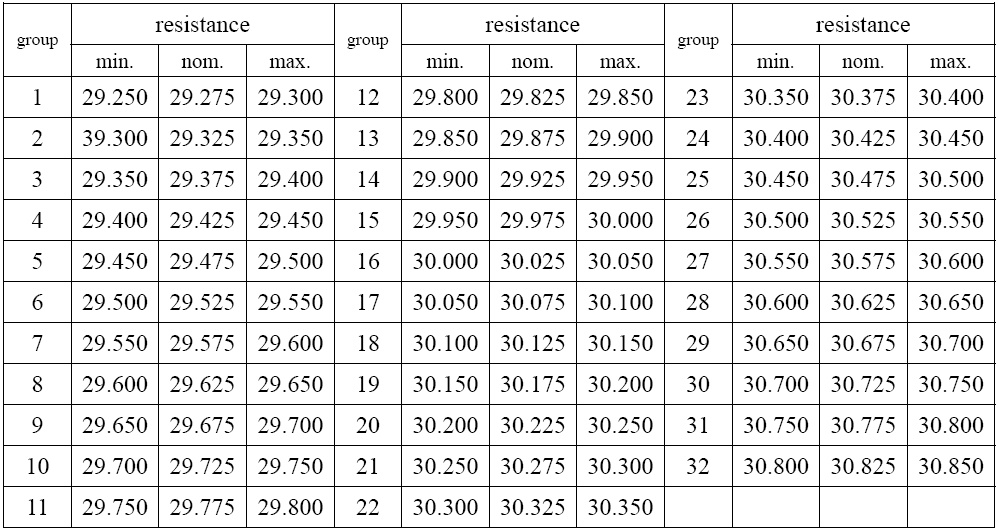

· Specially for digital thermometer used, under R37ºC, which is divided into 32 resistances ranges, every 50Ω constitutes a resistance range, make sure the tolerance of measurement temperature is ±0.1ºC Application:Digital Thermometer, Medical Devices, Computer and so on.
Specification:· The range of resistance under the rated zero power (R37ºC): 30KΩ
· The allowable tolerance of R37ºC: ±0.01ºC
· The range of B value (K): 3950K
· The allowable tolerance of B value: ±1%
· The range of operating temperature: -30ºC ~ +120ºC
· Dissipation factor: ≥0.7mW/ºC (In Still Air)
· Thermal time constant: ≤3.2S (In Still Air)
· Encapsulated: Enameled wire
· Dimension: Lead wire ø0.18mm
Established in 1996, Guangdong Tonze Electric is a professional and leading manufacturer specializing in high precision NTC THERMISTORS and TEMPERATURE SENSORS, as well as Medical and Home Electric Appliances. We are capable of making all kinds of specifications to meet your requirements and providing technical support.
We are an ISO9001 and ISO14001 certified company, covering an area of 39, 000sqm located in Shantou, China.
With excellent testing equipment, professional manufacturing technique, and perfect quality control system, we aim to serve customers with high product quality and honesty.
Trust in us for our 18 years experience serving the famous enterprises. Welcome to contact.
