Product Specifications
| Prod Model: |
AT-4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rate Value: |
50k |
| Tolerance: |
+/-1% |
| B Value: |
3950k |
| Lead Wire: |
Copper |
| Resistance: |
Variable Resistor |
| Type: |
Thermal Resistor |
| Function For Resistance: |
Protective Resistor |
| Package Type: |
Surface Mount |
| Application: |
Medical Devices and So on |
| Quantity: |
as Required |
| Installation: |
Solder |
| Material: |
Metal Oxide |
| Resistance Change Scale: |
Non-Linear |
| Shape: |
Pearl Shape |
| Brand: |
Tonze |
Product Description

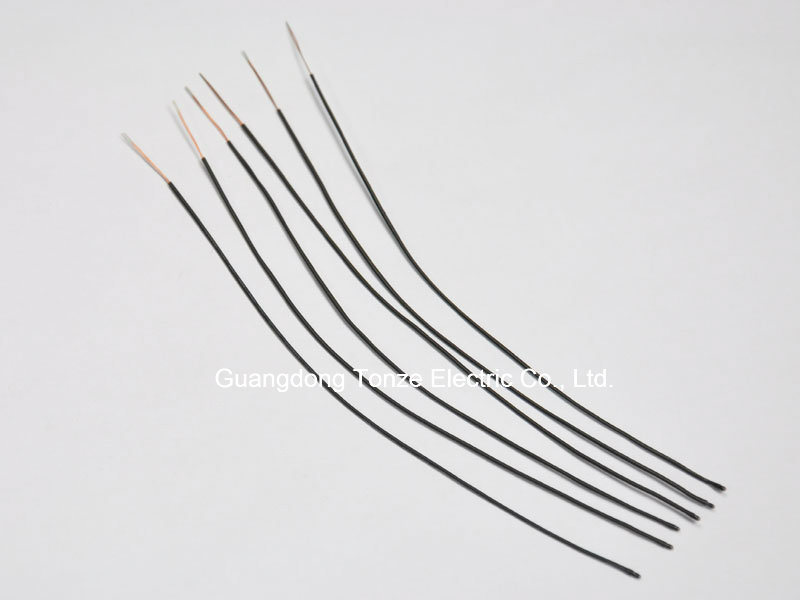

· Ø 0.22 enameled lead wire NTC thermistor with black tube, double insulation.
· Could be customized according to the requirement of the customers
· Small size, quick thermal sensing response and high delicacy
· High working stability and reliability
·
Application: Medical Devices, Computer and so on.

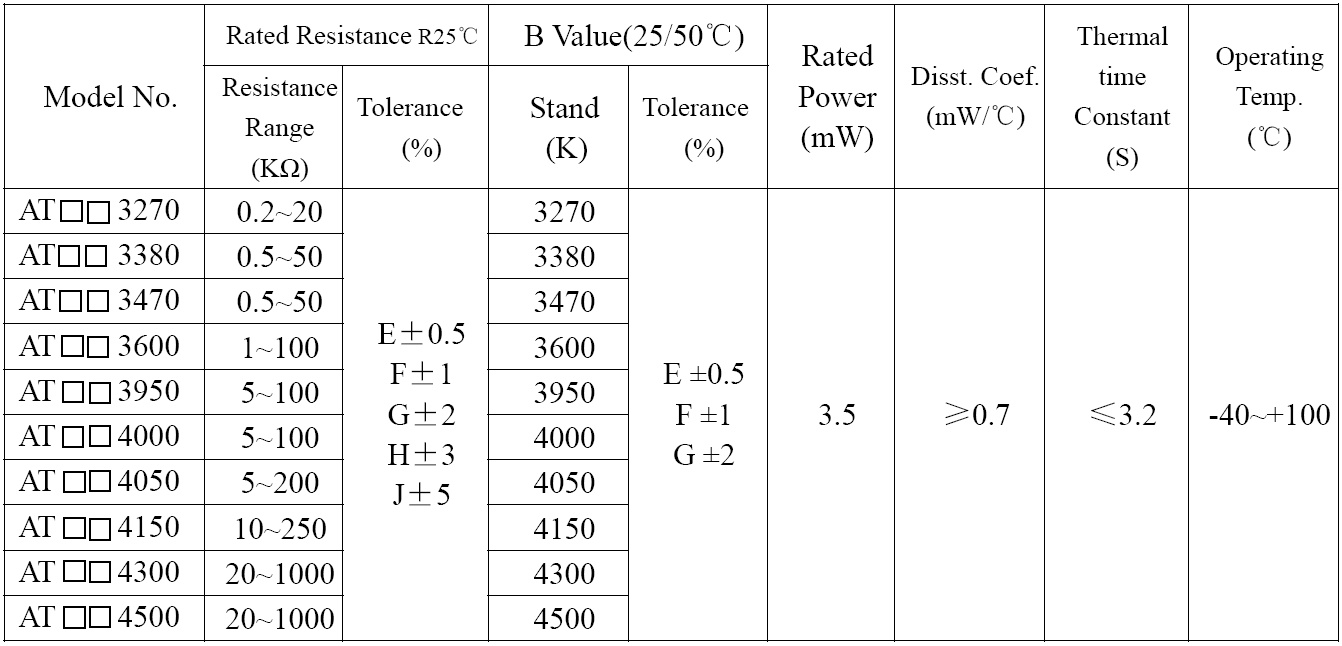

Specification:· The range of resistance under the rated zero power (R25ºC): 0.1~1000KΩ
· The allowable tolerance of R25ºC: ±0.5%,±1%,±2%,±3%,±5%
· The range of B value (K): 3100~4500K
· The allowable tolerance of B value: ±0.5%,±1%,±2%
· The range of operating temperature: -30ºC ~ +120ºC
· Dissipation factor: ≥0.7mW/ºC (In Still Air)
· Thermal time constant: ≤3.2S (In Still Air)
· Encapsulated: Enameled wire
· Dimension: Epoxy head size ≤1.8mm
Established in 1996, Guangdong Tonze Electric is a professional and leading manufacturer specializing in high precision NTC THERMISTORS and TEMPERATURE SENSORS, as well as Medical and Home Electric Appliances. We are capable of making all kinds of specifications to meet your requirements and providing technical support.
We are an ISO9001 and ISO14001 certified company, covering an area of 39, 000sqm located in Shantou, China.
With excellent testing equipment, professional manufacturing technique, and perfect quality control system, we aim to serve customers with high product quality and honesty.
Trust in us for our 18 years experience serving the famous enterprises. Welcome to contact.
