Product Specifications
Prod Model: |
B05 |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
White |
Application: |
Light |
Type: |
Female/Male |
Material: |
LCP |
Product Description

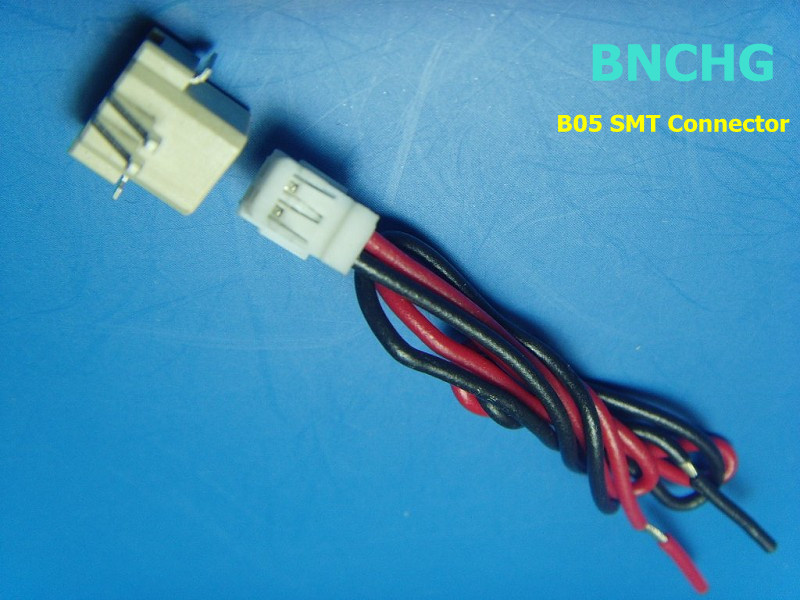

BNCHG B05 Tyco Inverted Thru Board SMT Terminal Blocks
Quick Details
Place of Origin: Zhejiang China (Mainland)
Brand Name: BNCHG
Model Number: B05 Application: PCB, LED
Gender: Other Interface type: AC/DC
Contact material: Copperinsulator
Material: LCP character: Inflaming retarding
Wire length: 300mmpin
Number: Two certificates: RoHS, S, CQC, CE, ISO9001: 2008
Packaging & Delivery
Packaging Detail: By standard export carton
Delivery Detail: 5~15 days after the payment received
Specifications
B05 tyco inverted thru board SMT terminal blocks
1. CQC
2. Have over 12year experience
3.100% test before deliver
4. Fast deliv
BNCHG B05 Tyco Inverted Thru Board SMT Terminal Blocks
Company Introduction
Yueqing Bincheng Electronics Co., Ltd is a manufacturing concern for over 12 years of the terminal block, wire connector, lamp holder, LED connector, electronic ballast fittings, wiring harness, controller panel etc. Possessed of passel high quality technical person with ability and management personnel, and continuously introdu-cing into advanced technologies, procuct equipment and test instrument. Company already has passed the ISO9001 quality system, The product has passed each kind of authentication like CE, CCC, CQC, RoHS, CB, VDE and a variety of utility model patent application. We also accept custom's OEM or ODM.
The product widely used for household appliances, building-connect, illumination appliances, communication equipment, automobile etc. The procuct sell well domestically and abroad, have high quality. The company depent on advanced technologies, all-right quality, adaptive price, quality service co-operation with you and bring for brighter future!
Introduction
1. The connector is used with a simplified LED power supply design.
2. It can make the current from a FR4 or aluminum PCB plate lower through o resolve the LED board surface wiring problems, so as to greatly reduce the time and cost of wiring.
3. New reverse SMT board connector products fully embodies the meet customer demand for service purposes.
4. The launch of the new SMT board connector with 2 bit to 6 bit and using surface mount technology, applied through the circuit board so that the interface to the PCB board,
5. SMT board connector adopts high-temperature resistant material, can execute the reflow soldering, flat surface design for vacuum suction head packaging and convenience.
Application
Indoor and outdoor lighting fixtures
General LED illumination fixtures
Various non-lighting applications that require wire dress connections below the PC board
LED lighting controls
About Payment
A. 100%TT in advance. (Order less than 4000 USD)
B. 70%TT in advance, the balance against the copy of B/L at sight
C. Negotiable
About Shipping
1. The packages normally will be shipped out within 3 working days after the payment confirmed
2. The packages can also be shipped by DHL/TNT/UPS/EMS/FedEx, you are welcome to choose the way you like
3. We are not responsible for any accidents, delays or other issues caused by the forwarder
