Product Specifications
| Prod Model: |
R13H30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
100&100&26mm |
| Data Interface: |
1 LAN Port |
| SIM Card Slot: |
1 Standard Slot |
| Support Network: |
CDMA |
| Type: |
Wireless |
| Information Content: |
Data |
| Usage: |
Data Transmission |
Product Description

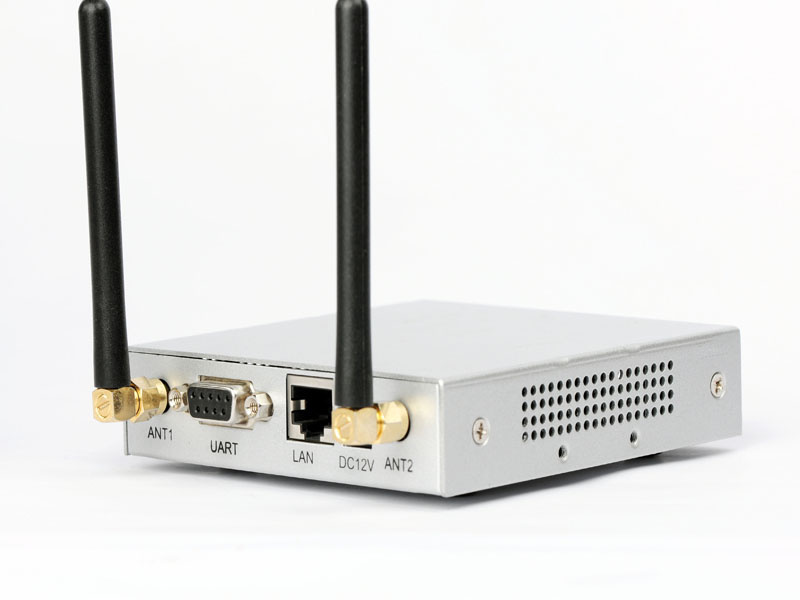

R13 series industrial EVDO/CDMA Ethernet router is designed to offer fast connectivity for industrial application, like ATM Monitoring, Meter Transmission, Remote data collecting. It uses EVDO technology as data bearer network, providing data speeds up to 3.1Mbps on the downlink and 1.8Mbps on the uplink. By owning automatic connection monitoring and heartbeat detection, make sure the router won't fail all the time.
The router is supporting Quad band frequency, and using Industrial Grade equipment design standards, stable and reliable. Multiple encryption protocols as L2TP, IPSec, and GRE are owned, making it ideal solution for applications in which high data bandwidth and strong stability are required (like video surveillance and ATM).
Application:
Mobile video surveillance
ATM security network
Environment monitoring
Electronic meter data transmission
Distribution automation
Wireless LED
Smart home system
Oil monitoring.
|
Hardware |
Software |
Bandwidth |
Φ CPU
RAM: 256Mbit
FLASH: 64Mbit
Φ Power
DC 9-36V
Consumption
Idle: 190mA@12VDC
Peak: 320mA@12VDC
Work: 240mA@12VDC
Φ Environment
Storage temperature -40º C_ 70º C
Work temperature: -20º C_ 60º C
Humidity: < 95%
Φ Dimension
L*W*H: 100*100*26mm
Weight
Net weight: 300g
Φ Interface
1 LAN 10/100Mb RJ45
1 Serial port RS232/485
1 SIM Card slot |
Φ Network protocol
PPP, ICMP, TCP, UDP, DHCP, HTTP,DNS, SNMP,VRRP
Φ VPN
IPSec
PPTP
L2TP
GRE
Φ Serial Port Baud Rate
300-115200bps
Φ Firewall
NAT
DMZ
IP address filtering
MAC address filtering
Φ Management
Web
Telnet
Φ Routing
Static Routing
Port Forwarding
|
3G 800/1900MHz
CDMA1X 800/1900MHz
Downlink/Uplink
EVDO: 3.1Mbps/1.8Mbps
CDMA1X: 153.6kbps
|
|
Accessories(Customizable) |
1 RJ45 cable with 2m cable
1 poweradaptor(AC110~240V to DC12V)
1 magnetic GSMantenna with 3m cable
1 stick antenna for WIFI(for R13H31)
Model
R13H30 1LAN
R13H31 1LAN, WIFI
|
