Product Specifications
| Prod Model: |
R15S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

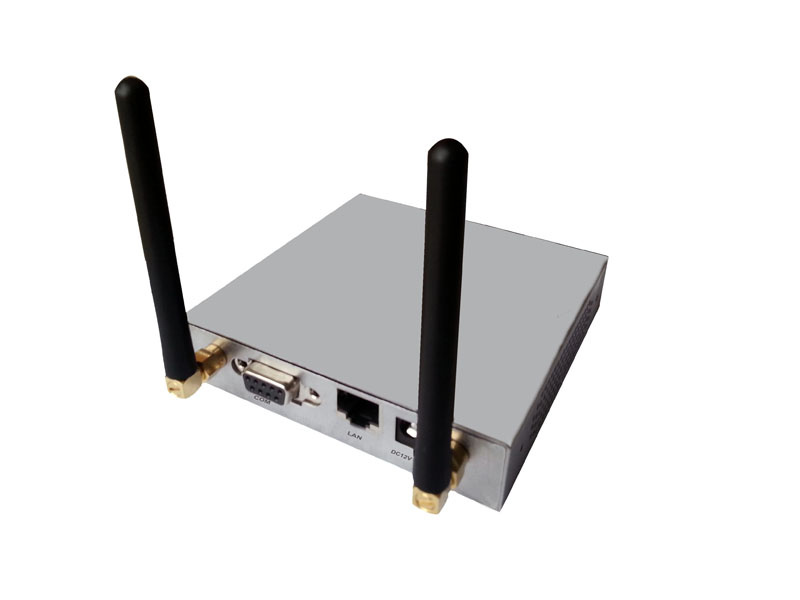

R15 series industrial 3G Ethernet VPN router UMTS is designed to offer fast connectivity for industrial application. It uses HSPA technology as data bearer network, providing data speeds up to 7.2Mbps on the downlink and 5.76Mbps on the uplink. By owning automatic connection monitoring and heartbeat detection, make sure the router won't fail all the time.
The router is supporting Quad band frequency, and using Industrial Grade equipment design standards, stable and reliable. Multiple encryption protocols as L2TP, IPSec, and GRE are owned, making it ideal solution for applications in which high data bandwidth and strong stability are required (like video surveillance and ATM).
Support APN network.
Support ICMP detection and Heartbeat detection, to ensure the router to be always on line.
Configuration couldn't be easier with native web-server setup.
Support local and remote firmware upgrade.
Support parameters backup and import.
Support DMZ and port forwarding.
Support DNS and DDNS.
Own standard RS232/485 interface to connect with serial devices.
Different LEDs for status monitoring.
WiFi(802.11b/g/n)(Option).
|
Hardware |
Software |
Bandwidth&Frequency |
CPU
RAM:256Mbit
FLASH:64Mbit
Power
DCinput9-36V
Consumption
Idle: 210mA@12VDC
Peak:320mA@12VDC
Work:270mA@12VDC
Environment
Storage temperature:-40—70ºC
Work temperature:-20—60ºC
Humidity:<95%
Dimension
L*W*H:100*100*26mm
Weight
Net weight:300g
Interface
1 LAN 10/100Mb RJ45
1 Serial port RS232/485 |
Network protocol
PPP,ICMP,TCP,UDP, DHCP,HTTP,DNS,SNMP
VPN
IPSec
PPTP
L2TP
GRE
Firewall
NAT
DMZ
IP address filtering
MAC address filtering
Management
Web
Telnet
Routing
Static Routing
Port Forwarding |
HSPA 850/1900/2100MHz
GSM850/900/1800/1900MHz
Downlink/Uplink
HSUPA:7.2Mbps/5.76Mbps
HSDPA:7.2Mbps/384kbps
UMTS:384kbps
EDGE:235.6kbps
GPRS:85.6kbps/42.8kbps |
|
Accessories(Customizable) |
1 RJ45 cable with 2m cable
1 poweradaptor(AC110~240V to DC12V)
1 magnetic GSMantenna with 3m cable
1 stick antenna for WIFI(Option) |
