Product Specifications
| Prod Model: |
KSE05 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Un: |
5V |
| Transmission Rate: |
100/1000Mbps |
| Maximum Discharge Current [Lmax]: |
5ka |
| Connector: |
RJ45 |
| Ports Protected: |
1/4/8/16/24 |

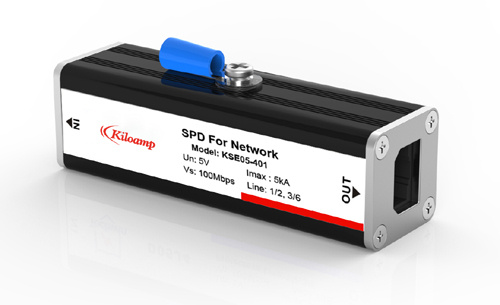

Product Description
Features
RJ-45 connector
Up to 5kA, 100Mpbs, 1000Mpbs
Protected pairs 1/2, 3/6, 4/5, 7/8
Three level of protection
Aluminum enclosure
Applications
Switch, computer, concentrator, IP camera and other IP terminal.
| Model | KSE05-401 | KSE05-801 | KSE05-424 | KSE05-824 |
| Electrical |
| Max. Continuous Operating Voltage[Uc] | 5V | 5V | 5V | 5V |
| Transmission rate | 100Mbps | 1000Mbps | 100Mbps | 1000Mbps |
| Nominal Discharge Current [In] | 3kA | 3kA | 3kA | 3kA |
| Maximum Discharge Current [lmax] | 5kA | 5kA | 5kA | 5kA |
| Voltage Protection Level [Up] | 20V | 20V | 20V | 20V |
| Response time[tA] | 1ns | 1ns | 1ns | 1ns |
| Insertion Loss | <0.5 dB | <0.5 dB | <0.5 dB | <0.5 dB |
| Pins protected | 1&2, 3&6 | 1-8 | 1&2, 3&6 | 1-8 |
| Ports protected | 1 | 1 | 24 | 24 |
| Mechanical |
| Connector | RJ45 | RJ45 | RJ45 | RJ45 |
| Mounting Method | In line | In line | In line | In line |
| Dimensions (L*W*H) | 90*25*25mm | 90*25*25mm | 482.
6*45*86mm | 482.
6*45*86mm |
| Weight | 40g | 40g | 650g | 700g |
| Environmental Ingress Protection Rating | IP20 | IP20 | IP20 | IP20 |
| Operating Temperature | -40 to +80 | -40 to +80 | -40to +80 | -40 to +80 |
| Standards compliance&Certifications |
| Standards | IEC 61643-21/EN 61643-21 |
| Certifications | CE, ROHS |
