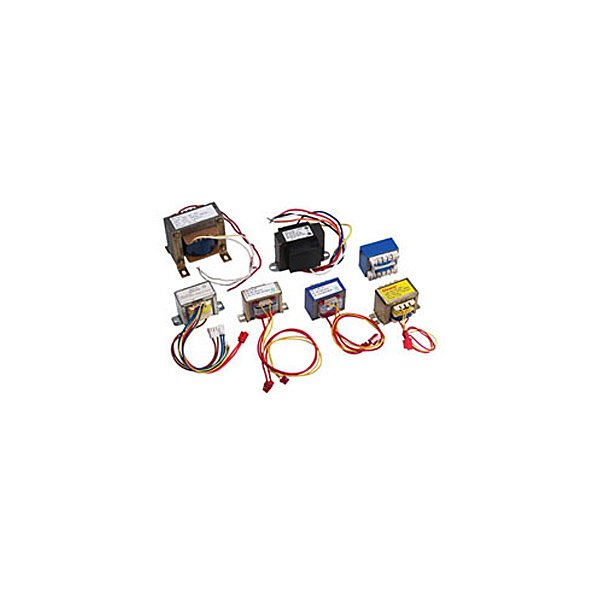

Etype Power Current Transformers
Price: |
US $ 100/Piece |
Trade Terms: |
FOB |
Min Order: |
1/Piece |
Pay Type: |
T/T |
Product Specifications
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Application: |
Power |
Phase: |
Three |
Coil: |
Amorphous Alloy Transformer |
Cooling Method: |
Oil-immersed Type Transformer |
Winding Type: |
Two-winding Transformer |
Brand: |
Elecal |
Product Description
Technical data & Dimensions::
Model | Rated load (VA) | Voltage regulation factor(%) | Efficiency % | Weight (kg) | Dimensions (mm) | A (±1) | B (±2) | C (±2) | D (±2) | E (±1) | EI 1.6 | 1.6 | 19.8 | 63.4 | 0.13 | 46 |
| 37 | 35 | 32 | EI 2 | 2 | 19.2 | 64.3 | 0.14 | 47 |
| 37 | 33 | 31 | EI 3 | 3 | 18.6 | 66.5 | 0.2 | 54 |
| 43 | 37 | 35 | EI 5 | 5 | 18.1 | 69.6 | 0.25 | 54 |
| 43 | 41 | 35 | EI 6.3 | 6.3 | 18.0 | 74.1 | 0.34 | 60 |
| 50 | 42 | 43 | EI 8 | 8 | 18.0 | 76.4 | 0.39 | 60 |
| 50 | 45 | 43 | EI 10 | 10 | 17.8 | 77.6 | 0.42 | 60 |
| 50 | 47 | 43 | EI 12 | 12 | 17.6 | 79.0 | 0.48 | 60 |
| 50 | 51 | 43 | EI 16 | 16 | 17.3 | 81.1 | 0.58 | 72 |
| 59 | 50 | 50 | EI 20 | 20 | 17.1 | 81.8 | 0.65 | 72 |
| 59 | 54 | 50 | EI 25 | 25 | 17.1 | 81.1 | 0.7 | 72 |
| 59 | 56 | 50 | EI 30 | 30 | 16.9 | 83.0 | 0.9 | 81 |
| 68 | 59 | 58 | EI 40 | 40 | 14.2 | 84.6 | 1.2 | 81 |
| 68 | 70 | 58 | EI 50 | 50 | 12.6 | 84.8 | 1.3 | 81 |
| 68 | 74 | 58 | EI 63 | 63 | 10.8 | 85.2 | 1.7 | 62 | 64 | 76 | 76 | 64 | EI 80 | 80 | 9.5 | 85.1 | 2 | 70 | 65 | 86 | 74 | 72 | EI 100 | 100 | 8.3 | 86.4 | 2.5 | 70 | 76 | 86 | 83 | 72 | EI 120 | 120 | 8.1 | 88.4 | 3 | 78 | 74 | 96 | 88 | 80 | EI 160 | 160 | 7.8 | 89.3 | 3.2 | 78 | 82 | 96 | 91 | 80 | EI 200 | 200 | 7.6 | 89.6 | 3.7 | 78 | 88 | 96 | 104 | 80 | EI 250 | 250 | 6.8 | 90.7 | 5.8 | 94 | 89 | 114 | 115 | 95 | EI 300 | 300 | 6.4 | 91.0 | 7.5 | 94 | 109 | 114 | 135 | 95 | EI 500 | 500 | 5.8 | 93.1 | 10.2 | 125 | 97 | 152 | 125 | 121 |
|
Electrical Properties (Based on SZ-1):
Output Voltage Characteristics | Vo=15mV min (At lo=25mA, R=1kO,F=60Hz) | Remanence Magnetism | T=10% Max (At IDC=50AT), Output Voltage Ratio After magnetized | Thermal Characteristics | tv=90-110% (At-10~80?) Output Ratio | Balance Characteristics | V=6mV Max (At lo=30A): TZ-1 Size | Pulse-Width Characterics | Tp=2.5m sec min (At V0=15mV Level) |
|
Noted: For measuring currenttransformers, the accuracy class is designated by the highest permissible percentage current(ratio)error at the rated current perscribed for the ac curacy class concerned.
Elecal Industrial Automation is Specializing in the manufacture and export of low-voltage and hight-voltage electrical products in China. Such as MCB, MCCB, ELCB, RCD, Contactor, Fuse, Relay, Switch, Distribution Box etc.
All the manufacturing process of the products is in strictly conformity to international IEC standard and we have established and perfected quality control procedures in accordance with ISO9001 international quality management system.
