Expert Manufacture of Pin Type Module Switching Power Supply DC
Product Specifications
| Prod Model: |
PD-D Series 25-30W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
50.8*50.8*12.7 |
| Voltage Regulating Mode: |
Width Modulation Type |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Warranty: |
2 Years |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Energy Transmission: |
One Way Transmission & Two Way Transmission |
| Output Type: |
Single / Dual |
| Output Power: |
25-20W |
| Input Voltage: |
9-72V |
| Brand: |
Pengtu |
Product Description
PD-D DC/DC Small Volume Module Power Supply Series25-20W
Features:C type input filter
Full load efficiency up to 89%
Design for high reliability, long lifetime
Natural cooling,no heat sink needed
Completely isolate between input & output
Small form factor,low weight
Excellent current limiting protection, continually operated in short circuit state
Input Characteristic:
Input voltage range ............ 9 ~ 18 VDC Rated value: 12VDC
18 ~ 36 VDC Rated value: 24VDC 36 ~ 72 VDC Rated value: 48VDC
Reverse Protection Fuse Outside
Output Characteristic:
Voltage set-point accuracy ......... ±2%
Line regulation(main) .................. ±0.2%
Load regulation(main) ................. ±0.4%
Temperature coefficient ...........… ±0.01%/ºC
Output current limiting ..............… 120%(Typ)
Dynamic response ....................… 400μs
Power ............................................... 25-30W General Characteristic:
Switching frequency ............ 200 KHz
Isolation resistance ............ 200 MΩ
MTBF ...................................… >500000H
Isolation voltage
Input-output: >1500 VDC
Input-case: >1050 VDC
Output-case: >500 VDC
Environmental Characteristic
Operation temperature ......... Industry: -25-+60ºC; MilitaryI: -40~ +70ºC; Military II: -55-+85ºC
Storage temperature ............ Industry: -45~ +105ºC; Military: -55~ +105ºCMechanical drawing and pin definition

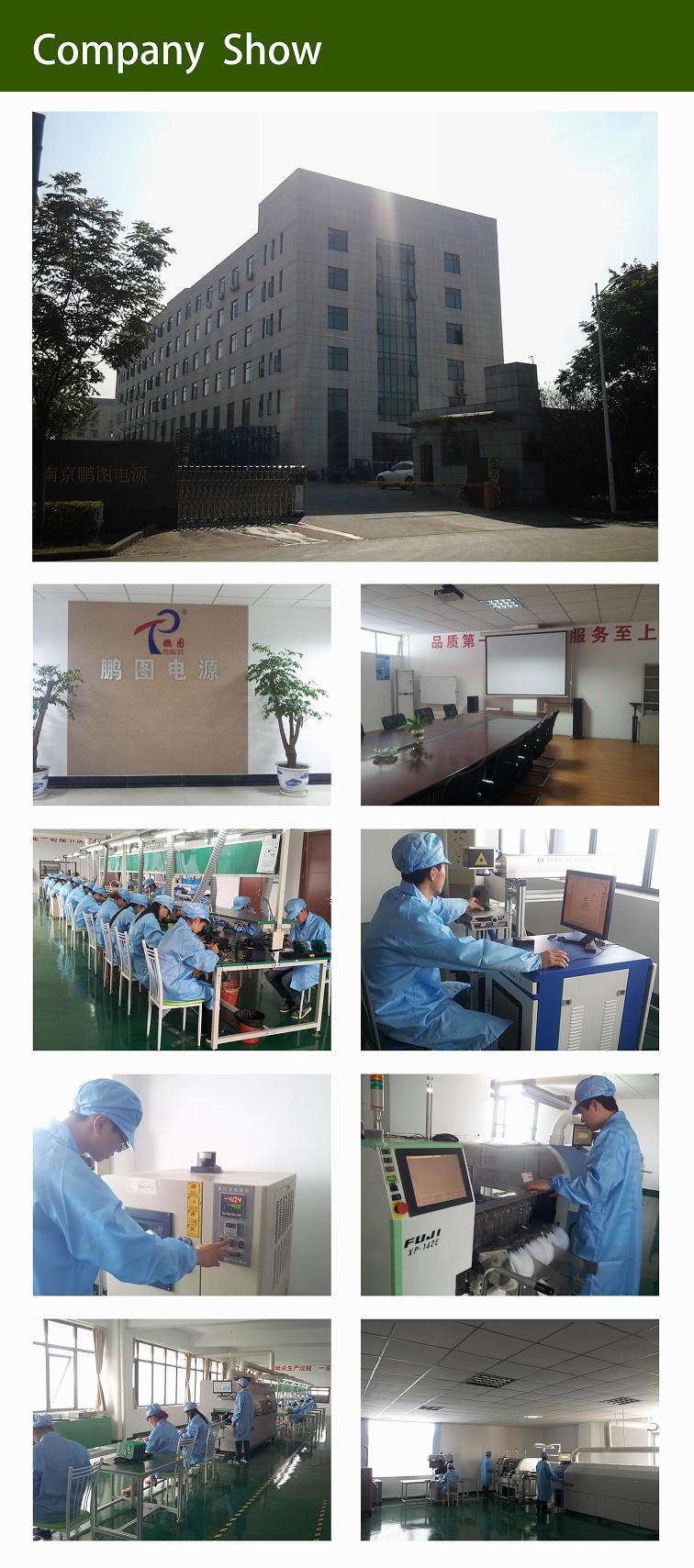

Company information
PD-D Series Normal Models
(Remark: Custom-made specificatons are also acceptable.)
|
Model |
Output Lines |
Input Voltage (V) |
Input Voltage Range (V) |
Output Voltage (V) |
Output Current (A) |
Ripple pk-pk (mv) |
Efficieency (Typ) |
|
PD25-12S05-D |
Single |
12 |
9-18 |
5 |
5 |
50 |
82% |
|
PD25-12S12-D |
Single |
12 |
9-18 |
12 |
2.08 |
100 |
83% |
|
PD25-12S24-D |
Single |
12 |
9-18 |
24 |
1.04 |
200 |
84% |
|
PD25-24S05-D |
Single |
24 |
18-36 |
5 |
5 |
50 |
81% |
|

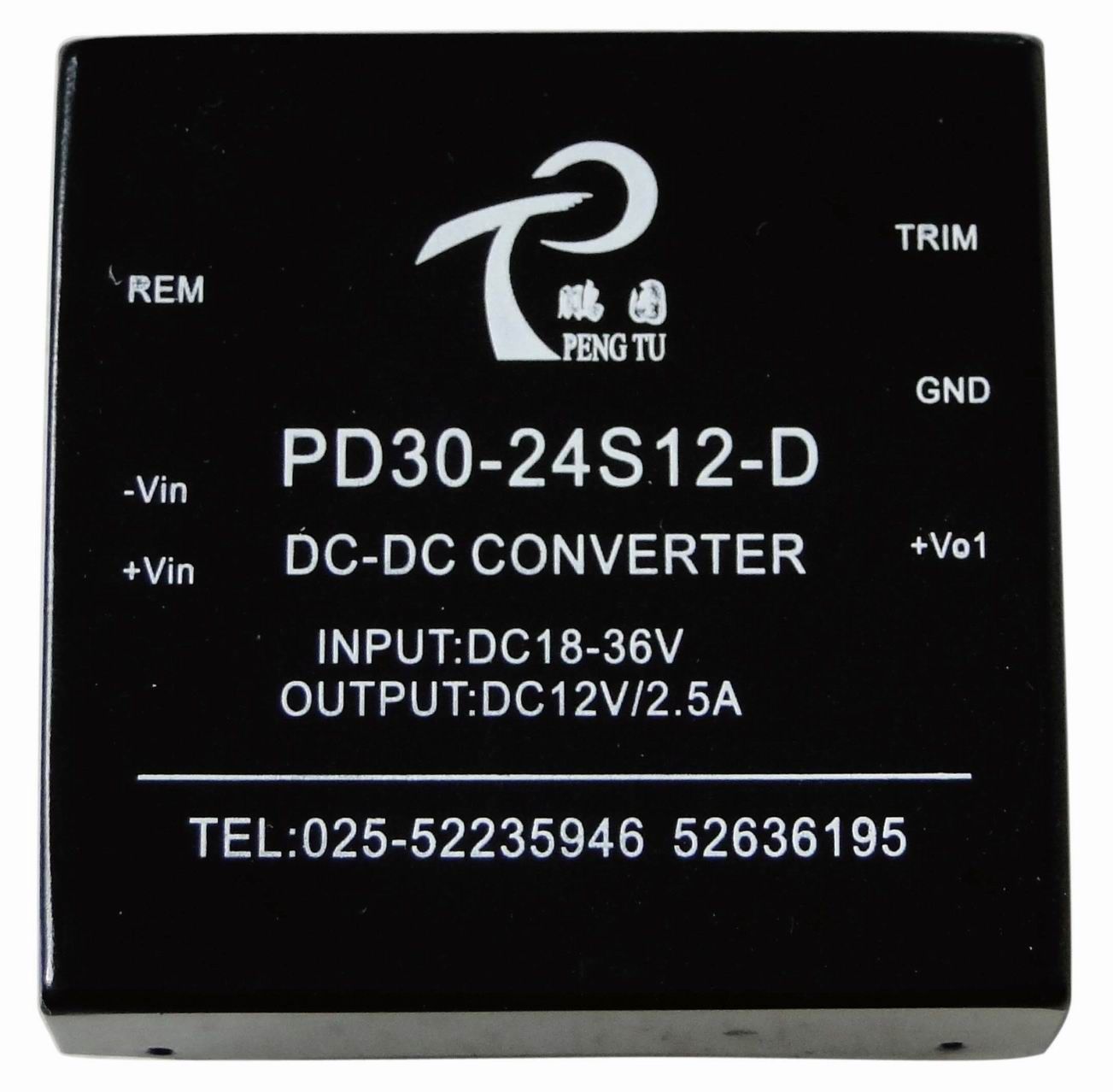

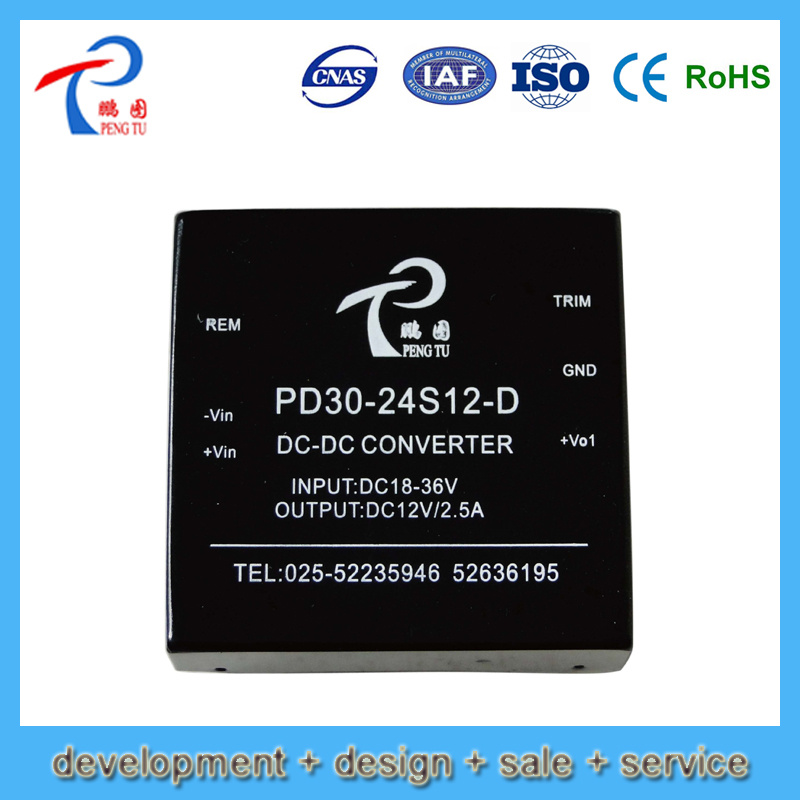

PD30-24S12-D |
Single |
24 |
18-36 |
12 |
2.5 |
100 |
82% |
|
PD30-24S24-D |
Single |
24 |
18-36 |
24 |
1.25 |
200 |
83% |
|
PD25-48S05-D |
Single |
48 |
36-72 |
5 |
5 |
50 |
80% |
|
PD30-48S12-D |
Single |
48 |
36-72 |
12 |
2.5 |
100 |
81% |
|
PD30-48S24-D |
Single |
48 |
36-72 |
24 |
1.25 |
200 |
82% |
|
PD25-24D05-D |
Dual |
24 |
18-36 |
±05 |
±2.5 |
50 |
82% |
|
PD30-24D12-D |
Dual |
24 |
18-36 |
±12 |
±1.25 |
100 |
83% |
|
PD30-24D15-D |
Dual |
24 |
18-36 |
±15 |
±1 |
100 |
83% |
|
PD25-48D05-D |
Dual |
48 |
36-72 |
±05 |
±2.5 |
50 |
82% |
|
PD30-48D12-D |
Dual |
48 |
36-72 |
±12 |
±1.25 |
100 |
82% |
|
PD30-48D15-D |
Dual |
48 |
36-72 |
±15 |
±1 |
100 |
83%
|
Nanjing Pengtu Power Supply Co., Ltd was established in 2007, is located in NO. 26 Daxiaochang Road, Qinhuai District, Nanjing, China. Our company is a manufacturer specializing in power product development, design, production, sales and service company. Our company has R&D, Production, Marketing, Quality Control department and other functional departments, And has a number of high-tech talents, which college degree or above of our personnel is more than 50% of the total number of employees. Our company has not only passed ISO9001-2008 Quality System Certification, and some products through the Measurement of Jiangsu Province Academy of Sciences and National Electric Power Academy of Sciences and other authorities detection. Product safety and electrical properties fully comply with the Ministry of Information Industry YD/T731-2000 High Frequency Switch Rectifier Standard.
In the power supply field, our company has independent research and development of AC/DC, DC/DC switching power supply module series mature products, power covers 3W-1000W. And our company strictly reference (GJB9001A - 2001) Nations Standard Quality Management System requirements, design and produce the special specifications of the power supply for the army and common customer.
Since its establishment to now, our company adhere to the science and technology as the forerunner, take the technology as the backing, and constantly develop all kinds of hi-tech leading colleague' S new products. Currently we has a number of national patent. Our company produces the "PengTu" brand power has been widely used in railway, military, aerospace, power, communication, control, instrument, car equipment, ship and major scientific research institutions, etc various fields, from the customer high praise.
We will always remember the"quality first service first" business philosophy, to provide users with convenient one-stop service. With our practical, innovation, refinement spirit of enterprise, we accelerate the company' S technical innovation and product development and at the same time we will with more quality products, more detailed services and more excellent results return to the vast number of customers. Let us work together to create you and I better tomorrow.
Our service
1. Your inquiry will be reply within 24hours
2. Well-trained and experienced staffs to answer all your inquiries in English
3. We have strictly management on the production and quality control
4. We have our own factory and professional engineers team to help you to resolve the prombles
5. We are greatly to accept the sample order for testing our quality, serive and your market.
Warranty term
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free new products or components based on the proof-documents.
2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instruction, we will provide paid service.
If you want to know more information, pls feel free to contact us. Any feedback from you will be given the prompt attention and reply!
