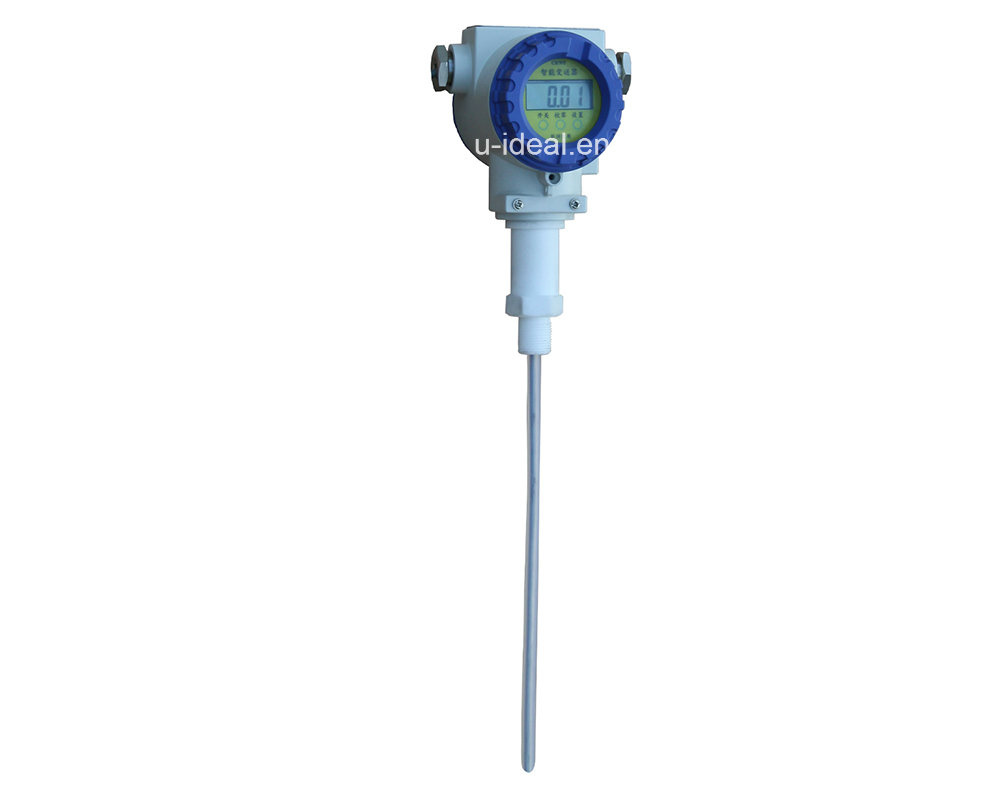

Explosion-Proof Accuracy Capacitance Water Level Guage, Level Meter
| Price: |
US $ 50/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Introduction
The intelligent capacitance-type level meter in FY series is the new generation high-tech level meter that developed by our company independently according to market demand, its practicability and progressiveness have been get recommended by those chemical industrial enterprises gradually. This level meter shall not be affected by dusts and hanged materials; with its on-site correction function, the user can perform following operation through pressing the key: automatic correction at "zero point", "measuring range", to get adapted with the different requirements of the places in variety, it can also widely used in the fields of detection and control on the level of various solid materials in filler bin, granary, material pool and medicine drum etc.
Features
1. It has the strong practicability with key configuration and one-key correction, accurate calibration;
2. By using the digital software filter technique, it shall not be affected by the gas amount and fluid level fluctuation, can both make the fast tracking on switching transients and displaying the average effect of fluid level with stable and accurate indication;
3. By adopting the anti-interference and error correction technologies with software and hardware, it shall not need to be isolated in the non-explosion-proof site and can be directly connected, reducing the complexity of circuit and cost;
4. It has the high accuracy, strong general performance, intelligent temperature compensation and linear correction, automatic linear and range tracking.
Main performance index
Measuring range |
350~4000mm |
Environmental temperature |
-40~60ºC |
Working temperature |
-40~200ºC |
Detection probe diameter |
20mm,for special requests please specify before ordering |
Material for detection probe |
PTFE |
Output signal |
4-20mA,4-20mA overlapped with HART protocol, 4-20mA overlapped with 485 communication protocol |
Long term stability |
≤0.2%FS/ year |
Accuracy grade |
0.5% FS |
Explosion-proof symbol |
ExibllBT5 Gb |
Applicable medium |
detectable particulates, flying ash, conductive/ non-conductive solid dusts, sticky materials |
Mounting mode |
1. Screw thread mounting
2. Flange mounting
3. For special requirements, please specify before ordering; |
| Prod Model: |
level guage |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material For Detection Probe: |
PTFE |
| Long Term Stability: |
≤0.2%Fs/ Year |
| Accuracy Grade: |
0.5%Fs |
| Measuring Range: |
350~4000mm |
| Power Supply: |
220V a.C or 24V D. C |
| Kind: |
Liquid Level Transmitter |
| Structure: |
All in One |
| Accuracy: |
0.5% |
