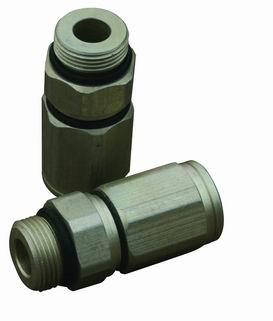

SF-095 suitable for RG11, A device that seizes only outer conductor of the coaxial cable, the cable center conductor extends through the connector and is retained within the equipment housing.
1. Hardline cable to port entry connectors provide solid interface while preserving impedance characteristics
2. Wide bandwidth for use in broadband systems
3. Center pin "Funnel Guide" reduces installation time and connector mating guesswork
4. Standard pin length alcommodates all amplifer and multitap mating requirements
5. Notched center conductor cutting guide assures accurate cable center conductor length
6. High return loss for excellent digital signal performance
7. Solid construction and intergral sleeve provides optimum RG shielding
8. High retention center conductor seizure mechanism
9. Superior power capability provides a minium of 20 Amps current capacity on all connectors and adapters
10. No-twist center conductor seizing mechanism eliminates radial stress, ensuring consistent application without cable damage
11. O-ring sealed, watertight. Compression RF connector
Connector typeconnetc |
500 Pin connector |
Vibration |
100m/s2 (10~500Hz) |
Frequency Range |
DC~1GHz |
Durability(mating) |
≥500(cycles) |
Impedance |
75Ω |
Temp.range |
-25~+60°C |
Insertion Loss |
< 0.3dB |
Material |
Shell : Aluminium |
Power Capacity |
> 20 A |
Inner conductor: Brass, silver plating |
Conductor resistance |
Internal ≤ 10 mΩ |
External ≤ 5 mΩ |
Insulator: Plastic |
Insulating resistance |
≥ 1000 MΩ @DC500V |
O Ring: Silicon Rubber |
Withstanding voltage |
170V max |
Applicable standard |
IEC 60169-24 |
![]()
