Product Specifications
| Prod Model: |
LS-ESP 60KV/0.33mA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| L*H*B: |
200*200*100 |
| Ambient Temperature: |
-20oc~50oc |
| Input Voltage: |
24V 1.5A |
| Cooling: |
Air Cooling |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
1 - 50W |
| Connection Mode: |
Series Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Starting Mode: |
Soft Start |
Product Description

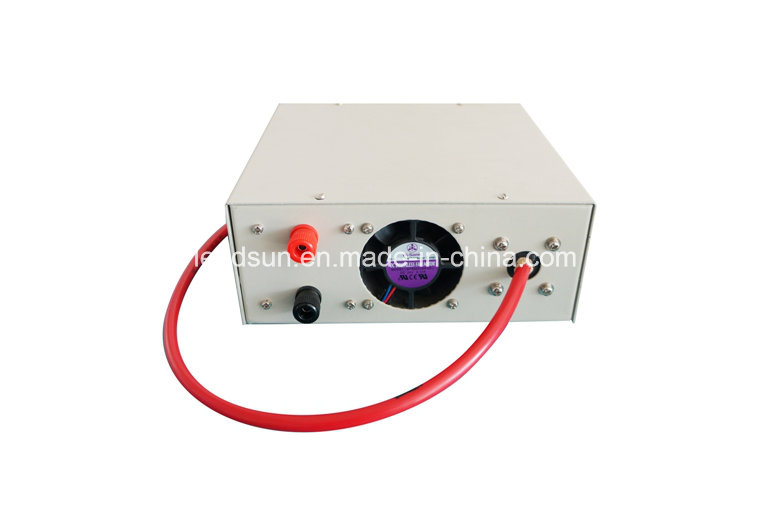

High Frequency High Voltage Power Supply
LS-ESP 60KV/0.33mA Specifications
| Item | Parameters | Remarks |
| Input voltage | 24V 1.5A | Wave less than 10% |
| Rated power | 20KW | Full load, output Umax, Imax |
| Rated output voltage | 60KV | |
| Rated output current | 0.33mA | |
| Comparative voltage control accuracy | 1% | Uo=80%Umax |
| Absolute voltage control accuracy | 3% | Uo=80%Umax |
| Voltage/temperature coefficient | 100V/1K | |
| Voltage program accuracy | Better than 5% | |
| Voltage output range | 40-100KV adjustable | |
| Output limiting current | 3mA | |
| Control response time | Better than 50nS | |
| Ambient temperature | -20 ~ 50ºC | |
| Ambient humidity | 10% ~ 90% no atomization | |
| Cooling | Air cooling | |
| Starting | Soft start | |
| Constant voltage control mode | Phase-shifting PWM | |
| Current control mode | Constant current of average value
Peak value testing | Within 100nS peak value loading, cut off and restart automatically |
| Working frequency | 50kHZ | |
| Converting efficiency | Better than 80% | Output voltage from 50% - 75%, efficiency 80% - 90 |
| Voltage regulation rate | 5% | |
| Ripple Coefficient | Less than 1% | |
| Current and voltage program mode | By potentiometer |
| Dimension | 200*200*100mm L*B*H |
Company & Services
· Leadsun focus on OEM,ODM and custom service, we have experienced engineers to supply the technical supports including design,operation, adjustment and failure analysis.
· Leadsun has Latest Standard product assembly series, including worldwide popular product series, and special customized series. There are Thousands of Types and Models for your choosing
· Leadsun technical center record every order and product characteristics; sales department focus on market developmenttendency, will supply you Full Service.
· Leadsun take quality as foundation of success, we feel honored to supply customer requried products and customer success. We keep focusing on product Innovation and Development to stay ahead in the industry.
· Year 2014, Leadsun will move to new industrial center, new platform, new hope,dream starts here.
For more information,please contact me.
We can also customize the products as your need.
Contact Us
ADD:No.757 Laser Industrial Park, High-tech center, Anshan, Liaoning, China
TEL:+86-412-2666636 2660889 5237711
FAX:+86-412-2663889 5237722
ANSHAN LEADSUN ELECTRONICS CO., LTD.
This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
