Price: | US $ 20000-50000set |
---|---|
Trade Terms: | FOB,CFR,EXW |
Min Order: | 1set |
Pay Type: | L/C,T/T |
Introduction about company:
Lingtong Heavy Industry has built a "National Key Laboratory for New Wall Material Technology and Production Equipment", We are manufacturer of brick making machine in China for 20 years,
professional manufacture many types of brick making machine.We are honored as a "Provincial Technology Innovation Enterprise", "Contract-honoring and Promise-keeping Enterprise" and "Enterprise of AAA Credit Rating".
Lingtong brand is a "Shandong Famous Brand" and "Top Ten Famous Brand in China Brick Market", and was awarded the "Gold Award by China Construction Machinery Expo" and other special awards.

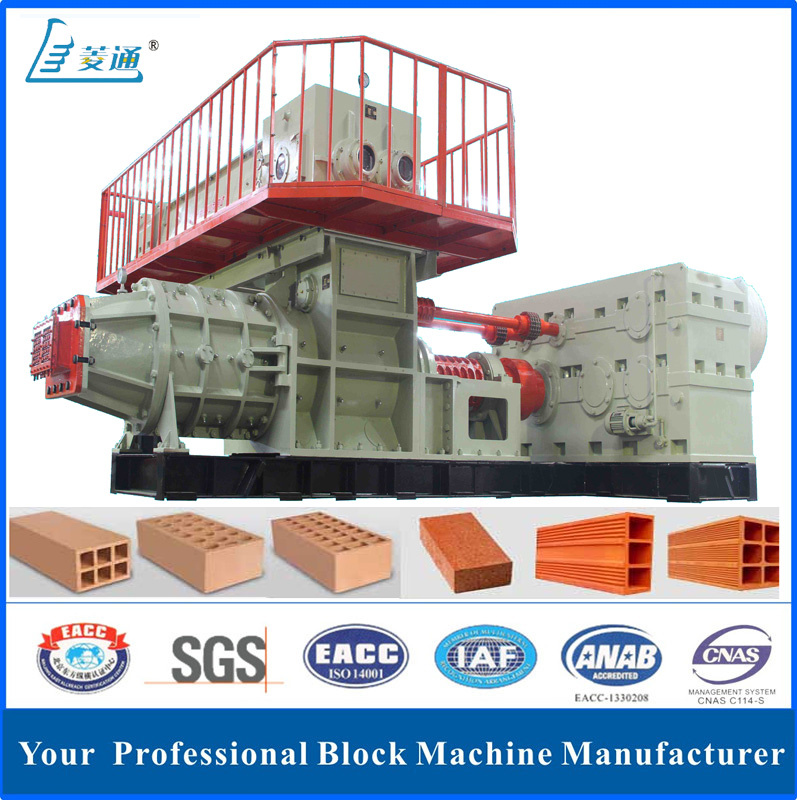

Clay Brick Making Machine Technical Parameters :
Specification | Productivity (Standard Brick PCS/h) | Extraction Pressure (MPa) | Vacuum Degree (%) | (kw) Motor Power | Mixing blade diameter |
JKY60/55-4.0 | 16000-22000 | 4.0 | ≤-0.09 | 220/90 | 600 |
JKY75/65-4.0 | 20000-26000 | 4.0 | ≤-0.09 | 280/132 | 750 |
JKB55/50-4.0 | 15000-17000 | 4.0 | ≤-0.09 | 200/90 | 550 |
JKB50/45 | 13000-15000 | 3.0 | ≤-0.09 | 160~132/90~75 | 500 |
JKB45/40-3.0 | 11000-13000 | 3.0 | ≤-0.09 | 110/55 | 450 |
JKB40/40-2.0 | 7000-9000 | 2.0 | ≤-0.09 | 90 | 400 |

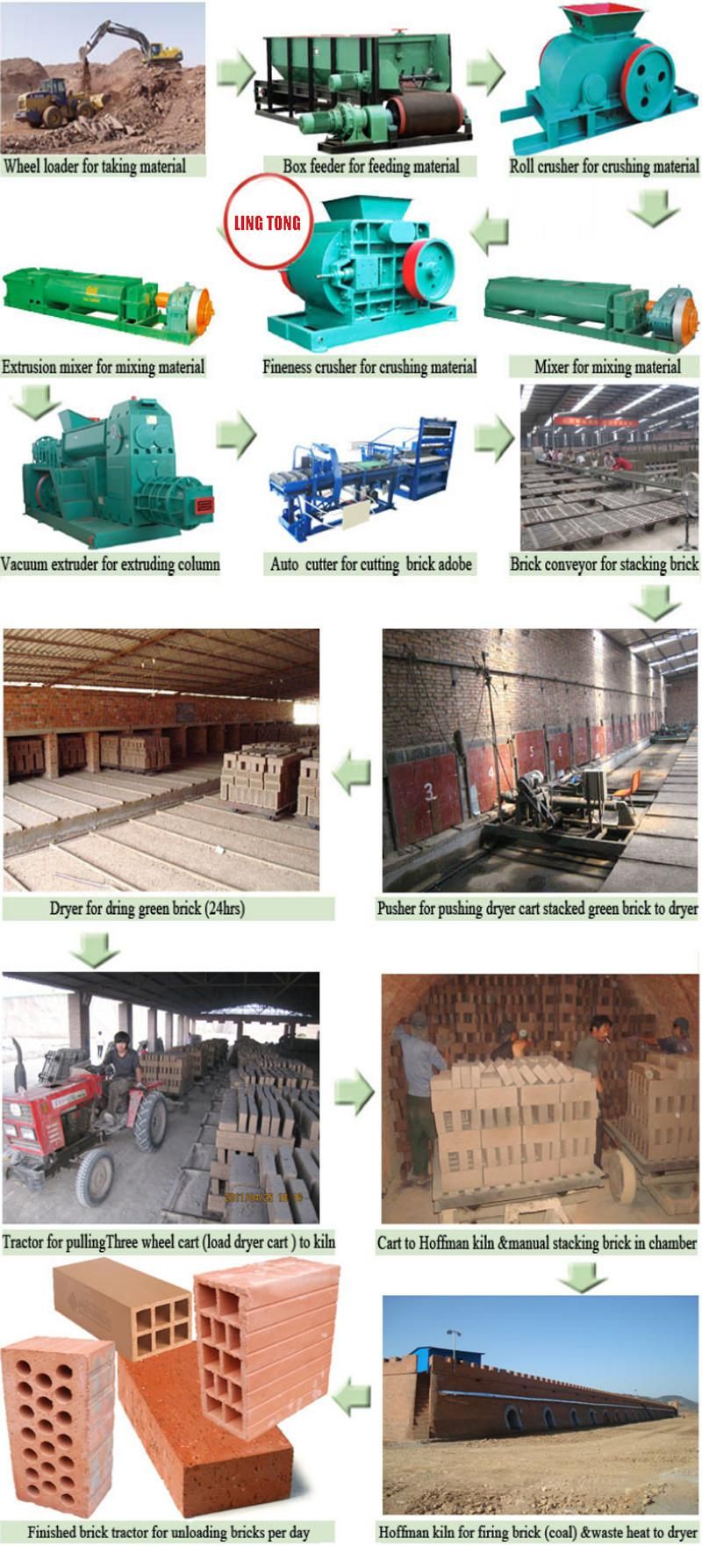

Clay Brick Making Machine Producing Process:
1.Brick raw materials should be prepared.Such as clay, fly ash, coal gangue, shale and so on.
2.Brick factory should be built.The yard of brick plant should be in agreement with the productivity of bricks.Red clay bricks making machine
3.The size of bricks should be in agreement with the local standard.
4.The model of bricks should be choosed, solid brick or hollow brick, If is hollow brick, how many holes on the brick.Red clay bricks making machine
5.The kiln for drying and firing bricks should be arranged, the tunnel kiln, annular kiln with dry hole or annular kiln.Red clay bricks making machine
our customers and certificates:
Our Professional Service :
Professional slaesman service :
1. Our good after-sale service would provide our customer with both the technology and the skills.
2. Our overseas technicians would be there to help installation and teach the using method.
3. We could provide the manual brochure if needed.
4. We would provide professional help with plant building by providing the foundation drawing.
A. Land requirement is verified according to different production capacity, generally ranging from 15,000 m2 to 30,000 m2 It is necessary to prepare at least 10,000 m2 to start.
Q. How to choose a best red brick making machine?
A. According to your capacity one day, and what is your material, which bricks do you want to make
Q. How to install the brick machine ?
A. We will send our engineers to customers place for installation and training , and send more specifications or video for you .
Contact now
Prod Model: | clay brick machine |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
Method: | Vacuum Extrusion |
Brick Raw Material: | Clay/Soil/Mud//Earth |
Automation Degree: | Full Automatic |
Capacity: | 16000-22000/H |
Dimension(L*W*H): | 4450*1750*1900mm |
After-Sales Service: | Engineers Available to Service Machinery Overseas |
Warranty: | 2 Years |
Power: | 220/90kw |
Spindle Speed: | 45 R/Min |
Place Of Origin: | Shandong, China (Mainland) |
Certification: | ISO9001: 2000, RoHS, ISO 9001:2000, ISO 9001:2008 |
Type: | Vacuum Extrusion |
