Product Specifications
| Prod Model: |
GA-L01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
Power Supply |
| Material: |
Aluminum |
| Color: |
Silver |
| Compatible Mainboard: |
ITX |
| Type: |
Horizontal |
Product Description

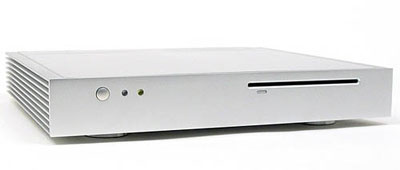

Fanless Mini ITX / Mini-ITX Case, HTPC, Media Center PC Case: GA-L01
1) Features:
The GA-L01 is an ideal solution for Home Theater and Media Center PC's. It is a fanless case with large storage capacity, space for 2 PCI cards and near silent operation. Expandable and designed to fit a range of popular VIA EPIA mini-ITX mainboards, the GA-L01 is perfect for media centers, as set-top boxes or audio-visual computers. With no fans, the systems can operate in environments where dust, dirt, or even grease predominates.
2) Specification:
Material: Steel chassis Extruded aluminum front panel
Finish/Color: Silver
Dimensions (w x h x d):
- 14.6" x 2.1" x 12.1", 370 x 50 x 310mm
Mainboards:
- VIA EPIA M, ML, MII, SP, EN, CN, LN, EX, LT M/B
- Intel D201GLY, Jetway w/C7 CPU M/B, etc.
Hard Drive Bay:
- 2 x HDD (1 x 3.5" and 1 x low profile 3.5")
Optical Drive Bay:
- Slot-loading Slimline CD/DVD drive (slimline CD to IDE adapter included)
Expansion Slot:
- 2 x PCI slot (Dual PCI riser card included)
- 5.9" (15cm) PCI card length allowance
Back Access:
- 2 x USB 2.0, 2 x IEEE 1394 (Firewire)
Cooling System:
- Heat sink/heat pipe combination on mainboard,
- Chassis fins, Maximum operating environment 36oC/97oF
Power Supply:
- Built in 120W DC board, External AC adapter 120W(brick) Input: AC 100 - 240V, Output: DC 19V, 6.32A
3) Case includes:
Heat sink/heat pipe combination for mainboard
Heat sink for HDD
Heat paste
Slimline CD to IDE adapter
Dual PCI riser card
Screws
Power supply and cord.
