Product Specifications
| Prod Model: |
Qbox-d525-L-02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bois: |
Award 8MB DIP Flash ROM |
| Name: |
Thin Client Computer |
| Operate System: |
Windows 7, XP, Win CE/XPE |
| RAM: |
Onboard DDR3 2GB |
| Storage: |
Msata |
| COM: |
6*COM |
| Network Card: |
2*Gigabit Ethernet RJ45 Port |
| Power Supply: |
12V-DC/ATX 4pin |
| Hard Drive Interface: |
Msata SSD |
| Application: |
Wall-Mounted/Desktop/Vehicle-Mounted/Industrial Co |
| Memory Capacity: |
≥4GB |
| CPU: |
Intel Atom |
| HDD Capacity: |
320GB |
| GPU: |
Intel |
| Display Screen Size: |
≥24" |
| Display Type: |
Without Screen |
| Drive Type: |
Without |
Product Description

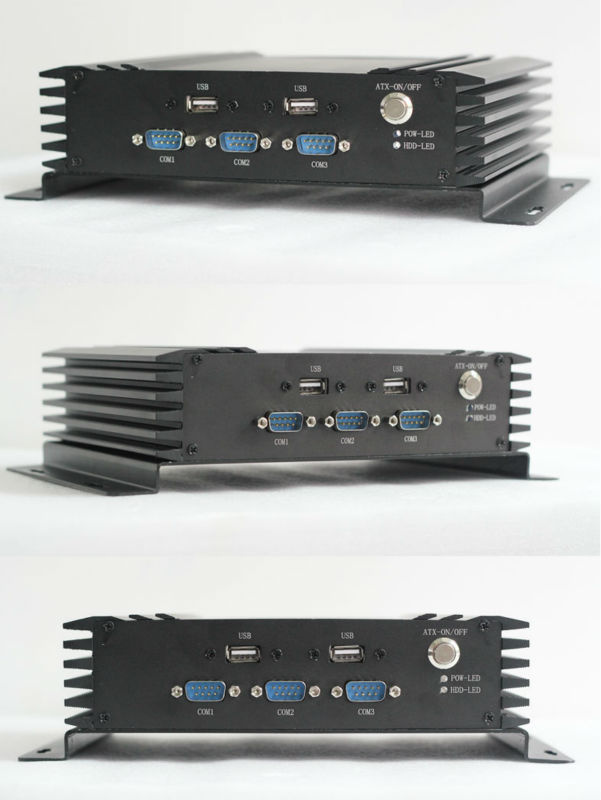

Fanless Thin client computer with 2*Ethernet LAN
Advantage:
1. All aluminium shell, good at heat dissipation
2. Compact embedded system design; Fanless, completely mute.
3. Sealed design, dust-proof; Shock-proof, very steady.
4. Support Gigabit Ethernet and WiFi.
5. Front&Rear panel provide comprehensive I/O functions, suitable for the diversified embedded application.
Mainboard
|
Form Factor |
Mini ITX 3.5inch (115mm×155mm) |
|
CPU |
Intel® Atom D525 1.80 G Hz |
|
Chipset |
Intel® Atom D525 processor + ICH8 chipset |
|
Memory |
Onboard DDR3 2GB |
|
Storage |
mSATA SSD 8/16/32/64GB |
|
COM |
6*COM port |
|
USB |
6*USB 2.0/1.1 port |
|
VGA |
1*VGA interface |
|
Network |
2*1000M Ethernet RJ45 LAN port(WIFI optional) |
|
Audio |
1*Audio(line in/line out/Mic) |
|
GPIO |
8 group(4-in/4-out) |
|
Watchdog |
256 |
|
Other Function |
Support power booting/plug and play. |
|
Cooling System |
Fanless;aluminium shell heat conduction |
|
Power Supply |
12V-DC 3A;ATX 4-PIN |
Operating Environment
|
|
Working |
Storage |
|
Temperature |
-20°C~70°C (-4°F~158°F) |
-20°C~80°C (-4°F~176° ) |
|
Humidity |
10%~90% (non-condensing) |
10%~90% (non-condensing) |
|
Impact |
3G@11MS |
30G@11MS |
|
Shake |
0.4GRMS(10-500HZ) |
1.12GRMS(10-500HZ) |
Structure
|
Material |
All aluminium shell |
|
Color |
Black/Silver (optional) |
|
Size |
230 mm ( L )X55 mm ( H )X160 mm ( W ) |
|
Weight |
2.50KG |
|
Application Area |
wall-mounted/desktop/vehicle-mounted/industrial control |
